Raspberry Pi Raspberry Pi Model B+

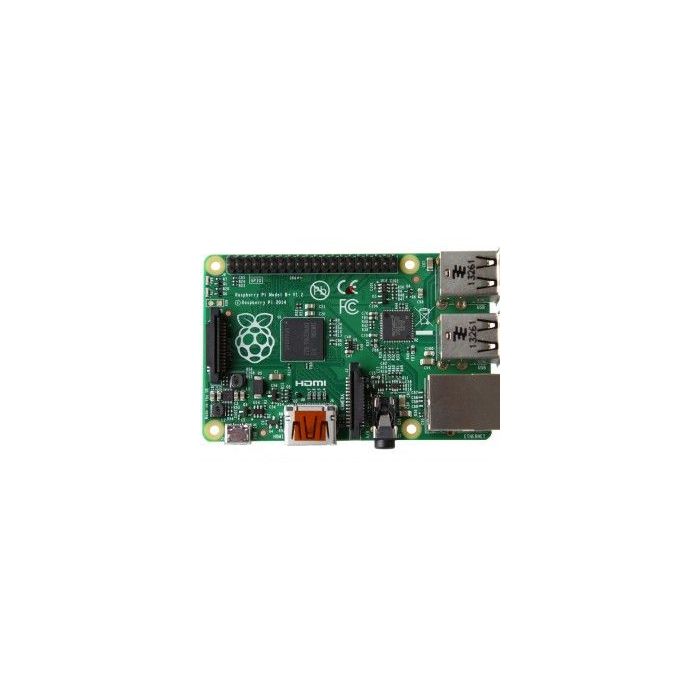

Raspberry Pi Project Board Model B+

The Model B+ is the final revision of the original Raspberry Pi. It replaced the Model B in July 2014 and was superseded by the Raspberry Pi 2 Model B in February 2015. Compared to the Model B it has:

• More GPIO. The GPIO header has grown to 40 pins, while retaining the same pinout for the first 26 pins as the Model A and B.
• More USB. We now have 4 USB 2.0 ports, compared to 2 on the Model B, and better hotplug and overcurrent behaviour.
• Micro SD. The old friction-fit SD card socket has been replaced with a much nicer push-push micro SD version.
• Lower power consumption. By replacing linear regulators with switching ones we’ve reduced power consumption by between 0.5W and 1W.
• Better audio. The audio circuit incorporates a dedicated low-noise power supply.
• Neater form factor. We’ve aligned the USB connectors with the board edge, moved composite video onto the 3.5mm jack, and added four squarely-placed mounting holes.

The Model B+ is perfectly suitable for use in schools: it offers more flexibility for learners than the leaner Model A or A+, which are more useful for embedded projects and projects which require very low power, and has more USB ports than the Model B.
