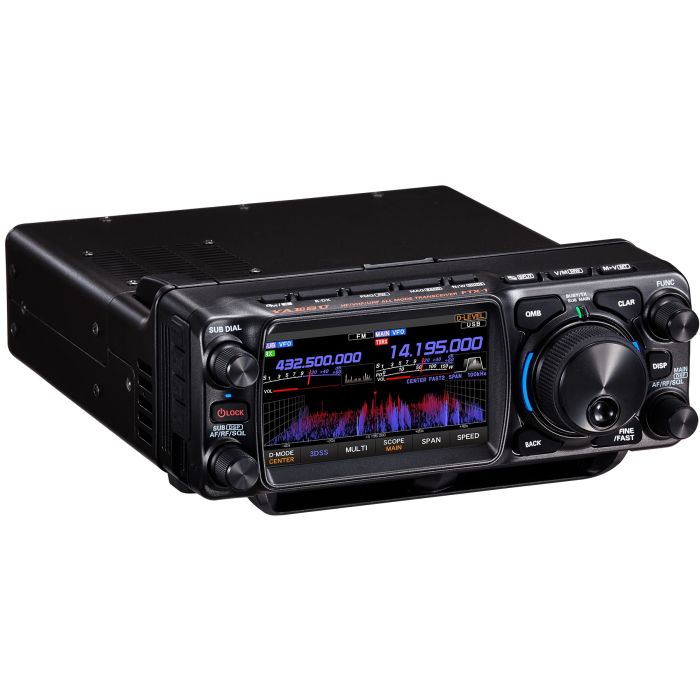

Refurbished Yaesu FTX-1 Optima 100W HF/50/144/430MHz All Mode SDR Portable Transceiver

Operate HF/6m/2m/70cm from the comfort of your own home, or anywhere in the world

The Yaesu FTX-1 Optima is a versatile and powerful transceiver designed for both 100W base station operation (with an external DC power supply) and portable field use (with the included Li-ion battery). Its innovative "Field Head" design forms the core of both configurations.

For base station operation, the FTX-1 Optima comes supplied with the detachable 100W RF power amplifier - SPA-1. In the field, simply attach the included SBR-52LI Li-ion battery to the rear of the Field Head for 6W (5W QRP) stand-alone operation across HF through V/UHF bands in all modes: SSB, CW, AM, FM, and C4FM digital. Enjoy approximately 9 hours of operation on HF (SSB) and 8 hours on V/UHF (FM) with a 6-6-48 duty cycle on battery power. The SBR-52LI battery can be conveniently recharged using a third-party USB Type-C PD cable (45W or greater/ 15V 2A). When connected to an external 13.8V DC power supply, the FTX-1 Optima offers up to 10W output and automatically charges the SBR-52LI.

The FTX-1 Optima boasts continuous wide-range receiver coverage from 30kHz to 174MHz and 400MHz to 470MHz, ideal for SWL, FM broadcast, and Air-band listening.

Useful Features for HF through UHF:

• MAG (Memory Auto Grouping): Automatically groups memory channels by band for easy recall. The M-GRP (My Group) allows custom grouping of any desired memory channels.
• QMB (Quick Memory Bank): Stores frequency, mode, and settings of the current receiving signal for one-touch recall of up to 10 channels.
• PMG (Primary Memory Group) for VHF/UHF: Register up to 5 PMG channels for quick monitoring with AUTO scan (simultaneous reception of up to two active channels) and MANUAL scan options. Ideal for monitoring club member frequencies.
• AMS (Automatic Mode Select) for VHF/UHF: Automatically detects and selects between C4FM digital and FM modes.
• Memory Channel Scope for HF/VHF/UHF: Displays the reception status of up to 43 memory channels with a bar graph for easy selection.

More Features:

• Excellent Proximity Two-Signal Characteristics: Achieved through a powerful RF Front-End design with a 10-divided BPF in amateur bands and a low NF RF amplifier with excellent intermodulation characteristics. A high-purity 110.592MHz oscillator ensures a high-quality sampling clock signal for the A/D converter.
• SDR Circuit Configuration: Adopts the same high-resolution A/D converter and FPGA used in the FTDX10 for excellent fundamental receiving performance.
• Effective QRM Rejection: Features a 32-bit High-Speed DSP with SHIFT/ WIDTH/ NOTCH/ CONTOUR/ APF/ DNR/ NB.
• True Dual-Band Operation: Includes C4FM/C4FM Simultaneous Receive (HF/V, HF/U, V/U, U/V, V/V, U/U)*. (*HF/HF not available)
• 3DSS (3-Dimensional Spectrum Scope): High-Resolution 4.3-inch TFT Color Touch Panel Display.
• Intuitive Front Panel Design: Features Dual LED indicators for MAIN/SUB band status, a VMI LED for operation mode, and a FUNC dial for quick menu selection and setting changes.
• Super-DX: Expands communication range (available in all bands and modes except C4FM).
• “PRESET” Mode: Optimized for FT8 operation.
• 2 Large Front Speakers: Ensures high-quality and powerful audio.
• Aluminum Die-Cast Chassis: Equipped with multiple slits for high heat dissipation, ensuring stable high-power output.

Other Practical Features:

• 1200/9600bps APRS® Data Communication
• Compatible with WiRES-X (available in August 2025)
• Micro SD card slot
• Comprehensive CW operation features
• USB ports for CAT operation, audio input/output, and TX control
• Versatile FM mode functions (DCS, CTCSS encoder/decoder, ARS, DTMF)
• AGC (Automatic Gain Control)
• Connectable with YAESU Automatic Active Tuning Antenna (ATAS-120A) and the FC-40 External Auto Antenna Tuner for 100W HF/50MHz and 50W V/UHF operation.

New Optional Accessories for Field Head:

• SCF-1 Cooling Fan
• FC-80 Automatic Antenna Tuner (10W HF/50MHz)
• FC-90 Automatic Antenna Tuner (10W HF/50MHz, Long Wire/50Ω)
• SPG-1 Protection Guard
• FGPS-5 GPS Antenna Unit
• BU-6 Bluetooth Unit

The Yaesu FTX-1 Optima offers a complete solution for both serious base station operators and adventurous field enthusiasts, delivering powerful performance and a wide array of features in a uniquely adaptable design.
