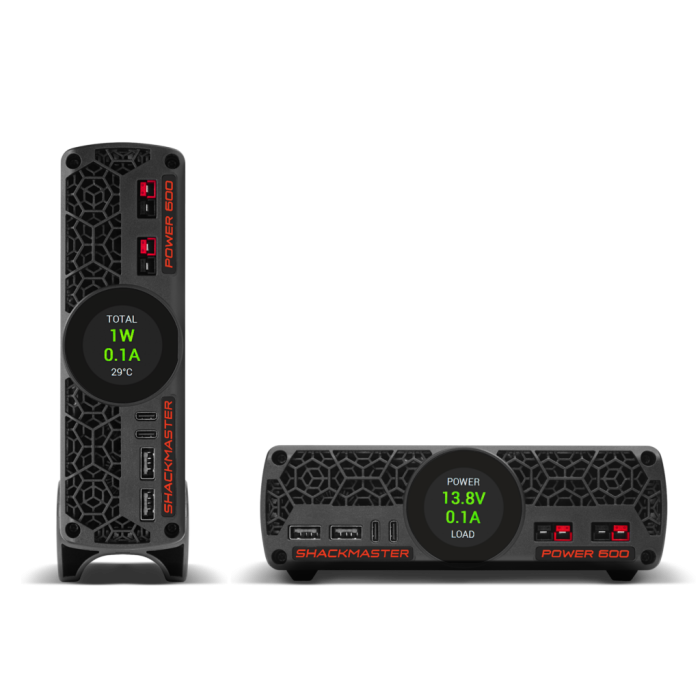

Rig Expert Shackmaster Power 600 40A Power Supply

Name: Rig Expert Shackmaster Power 600 40A Power Supply
Brand: Rig Expert
SKU: ZRE-POWER600
Price: 384.95 USD
Availability: InStock
Rating: 95 (4 reviews)

SKU: ZRE-POWER600

Availability:

In stock

$384.95

VIP Price

After Mail-In Rebate

SAVE $45.00

Regular Price: $429.95

Used & Open-Box: from $346.29

Free Shipping

Description

Features

Specifications

Rated power	600W
Rated current	40A
Output voltage	13.8V (12-15V Software adjustable)
Input voltage range	80V to 264V
Input frequency range	47 Hz to 63 Hz
Acoustic noise	~21 dB
Overvoltage protection	Yes
Overcurrent protection	Yes
Short circuit protection	Yes
EMI noise	200mVp-p
Storage temperature range	-40°C to +85°C -40°F to +185°F
Energy Conversion Efficiency (ECE)	> 90% (Heat dissipation at maximum load < 60 W)
Ports on the front panel	2 x 3A USB A Charging Ports 2 x 3A USB Type-C Charging Ports 2 x 45A Anderson Power Poles
Ports on the rear panel	1 x 30A Binding Post 1 x 45A Anderson Power Pole 1 x USB Type-C for PC Communication
Dimensions	172 mm x 55 mm x 185 mm
Weight	1,1 kg

Customers who bought this item also bought

Customer Reviews

Overall

Excellent, but. . .

Review by Joe

This power supply is quiet and efficient as advertised. It has high power capabilities and more than meets my needs for a DC station power supply. I only have one issue: the power supply cannot be turned on or off remotely. I need to have the ability to power up a remote location with DC by controlling the AC input to the supply.
this supply cannot be powered up without manual intervention at the front panel. This is a limitation for my needs because I have to leave it powered on continuously. Also, when the power is lost, it will not come back on automatically.

Overall

Solid, quiet ham radio power source

Review by Vaco

So far, so good! I use this power supply in my home ham shack to power my Flex-8400M and Icom IC-705 tranceivers and, so far, it has been flawless. My old Astron linear supply has seen it's better days and, after a previous bad experience with a RF noisy switching power supply, I was gun shy about trying another one...but glad I gave this one a try. So far, I've found no RF or fan noise, I can see at a glance the voltage & current, and it takes up much less space on my radio desk.

Overall

Plenty of power, no audible sound, NO RFI noise, flexible positioning

Review by Very Awesome Power Supply

Got this power supply just before Field Day 2025. My first power supply was a switching power supply that initially wasn't RFI noisy, but as time went on, it got worse. The Rig Expert Shackmaster Power 600 has been able to power everything I needed in the shack 40amps is amole. I'd read reviews that this power supply had a noisy fan, that WASN'T my experience. In fact, its so quiet, I'd be led to believe it doesn't have a fan! I've used this on my Yeasu FT-710, Xiegu G90, Xiegu 6100, with NO discernable RFI noise. After the noisy power supply, I ran my shack on LiFePO4 Lithium Batteries. The change was significantly quieter. I then installed the Shackmaster 600, the noise floor remained the same. Three different radios - same result. Quality engineering, superior performance. Cost-effective solution.
Rig Expert has a winner!

Overall

Awesome Power Supply

Review by Awesome Power Supply

Very happy with this power supply! It's been able to power my entire shack and then some! Really enjoy the remote capabilities of it and fancy power charts and graphs you can make when connected to a computer!
