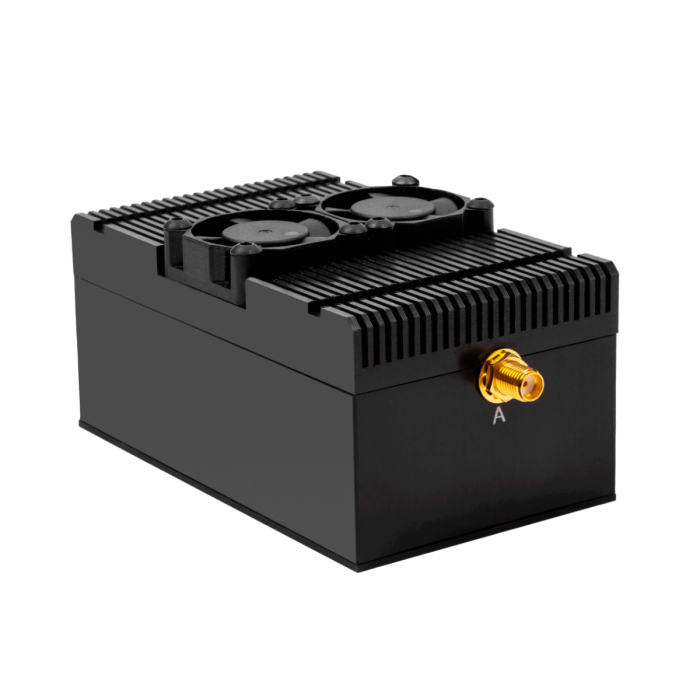

Rig Expert WGPA500 Bi-Directional Amplifier

Why Choose the RigExpert WGPA500? Real-World Use Cases & Performance
While standard RF amplifiers focus on single-frequency bands or require external relay controls, the RigExpert WGPA500 is engineered as an all-in-one signal booster across the entire 100–1200 MHz spectrum.

1. Turning Ultra-Low Power SDRs into Field-Ready Transceivers
Popular Software Defined Radios like the HackRF One, LimeSDR, or USRP offer incredible frequency flexibility, but their native RF output is usually capped in the milliwatt range (often under 10–50 mW).

• The Problem: A milliwatt signal limits line-of-sight range to just a few hundred yards.
• The WGPA500 Solution: Placed downstream of an SDR, the WGPA500 boosts that low-level signal up to 10 Watts continuous RF output. It transforms lab-grade development hardware into a long-range terrestrial or airborne transceiver.

2. Eliminating Payload Constraints on Drones & UAVs
For UAV operators running long-range telemetry, video feeds, or custom communications payloads:

• Weight vs. Power: Traditional 10-Watt RF amplifiers with heavy heat sinks and relays can quickly exceed drone payload capacities.
• GaN Efficiency: Utilizing Gallium Nitride (GaN) semiconductor technology, the WGPA500 achieves significantly higher thermal efficiency and power density. Weighing only 337 grams, it provides maximum range without sacrificing battery endurance or flight time.

3. Automatic Bidirectional Handling (No External TX/RX Control Lines Required)
In complex field setups, wiring hardcoded T/R (Transmit/Receive) switching lines or external relays adds potential failure points.

• RF Sensing VOX: The WGPA500 features built-in fast automatic RF sensing. The moment an incoming RF signal is detected on the port, the amplifier automatically toggles to Transmit mode.
• Integrated RX Preamplifier: When transmitting stops, it seamlessly drops back into Receive mode, engaging an 8.6 dB low-noise preamplifier to pull weak distant signals out of the noise floor.

Who Benefits Most from This Unit?

• UAV & Robotics Integrators: Extends command-and-control (C2) or data links for custom airframes and ground rovers.
• Amateur Radio Operators (HAM): Provides a single compact amplifier solution covering VHF (2m), UHF (70cm), 900 MHz, and 1.2 GHz (23cm) bands.
• IoT & LoRa Engineers: Boosts field transmissions on standard 433 MHz and 868/915 MHz ISM frequencies during range-testing or remote sensor backhaul deployments.
