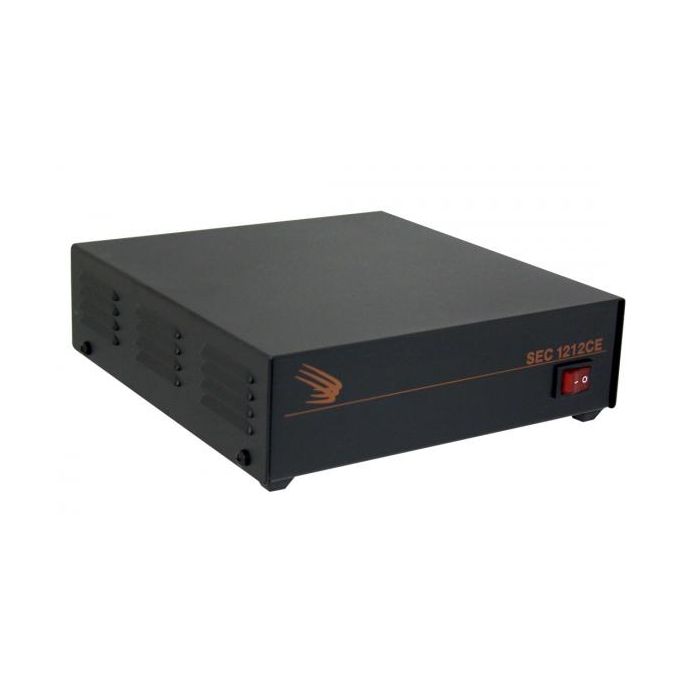

Samlex SEC-1212CE Desktop Switching Power Supply - Input: 230 VAC, Output: 13.8 VDC, 10 Amps
RoHS Compliant

This high efficiency AC-DC power converter provides a highly regulated output DC voltage of 13.8 Volts at 10 Amps with an AC input of 230 Volts, 50 Hz. These advanced switch-mode DC power supplies were designed specifically for use with land mobile radio. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with “SCHUKO” plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC power supply conforms to EN60950 safety standards and EN55022 class B, EN6100-3-2,3 and EN61000-4-2,3,4,5,6,8,11 EMI/EMC standards.

Model No. SEC-1212CE

Input Voltage (Nominal)

230 VAC, 50 Hz

Output Voltage

13.8 VDC +/- 1%

Output Ripple & Noise (ON FULL LOAD, PEAK TO PEAK)

120 mV

Output current, Continuous

10 A

Current Limit

14 A


Convection cooled


Over current, short circuit and over voltage (through PWM controller)

Environmental Temperature range

0 - 40°C

AC input

Detachable power cord with European “Schuko” plug

DC Output

Terminals with tubular hole DIA 0.2” (5 mm) with set screw

Fuse Rating
