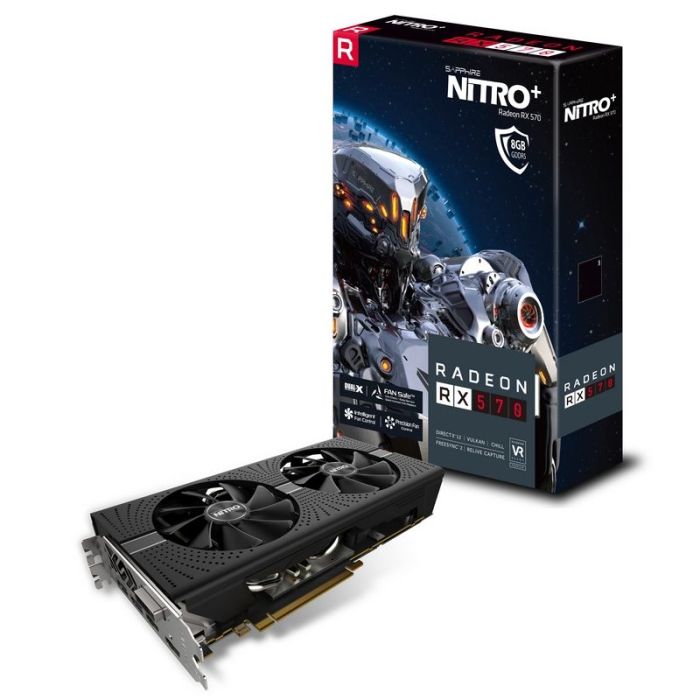

Sapphire Radeon NITRO+ RX 570 8GB
Sapphire Radeon NITRO+ RX 570 8GB GDDR5 PCI-E Dual HDMI / DVI-D / Dual DP w/ Backplate (UEFI)
SAPPHIRE NITRO+ Radeon RX 570 continuous streamlining of FinFET 14 nm production process, the latest Polaris GPUs , even more energy-efficient. This allowed SAPPHIRE to crank up the clocks and reach up to 10% better performance compared to previous series. To add even more headroom for overclocking.
For great 1080p gaming, SAPPHIRE NITRO+ Radeon RX 570 comes stocked with 2048 4th-gen GCN stream processors and a factory-overclocked boost clock of 1340 MHz. With 8GB of memory, it offers very good value, performance and quality.
- AMD CrossFire
- FreeSync Technology
- AMD Eyefinity
- Quad HD Display (4K*2K Support)
- Dual BIOS
- AMD Liquid VR Technology
- AMD Xconnect ready
- DirectX™ 12 Optimized
- HDR Ready
- Frame Rate Target Control
- NITRO Fan Check
- NITRO Quick Connect system
- NITRO Glow RGB LED
- NITRO CoolTech(NCT)
- NITRO Free Flow
- Dual-X Cooling
- NITRO Boost
- Intelligent Fan Control III
- Black Diamond Choke 4
- Fuse protection
- Precision fan control
- Robust VRM Cooling
- Radeon Chill
- Radeon Relive
In order to protect your card, the SAPPHIRE NITRO+ series cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Precision fan control
Standard industry fans may have up to 10% difference between their fan rotation cycles (RPM). With the new Fan IC Control on SAPPHIRE NITRO + graphics cards, this differential is reduced to 3%. This 70% improvement on accuracy ensures that cooling and noise performance of every NITRO + card is up to scratch.
Robust VRM Cooling
The SAPPHIRE NITRO+ cards are designed with robust VRM cooling and have a high thermal conductivity pad on the backplate to take away the heat efficiently and effectively.
Nitro Glow 2
The graphics card is more than another component; it’s the beating heart of your gaming system. It should look as good as it costs. With tasteful shroud design augmented by RGB LEDs, each card is practically a piece of art. You can even change the colours of the LED, for your own customized design. This can be controlled via software using the latest version of SAPPHIRE’s Award Winning Overclocking Utility – TriXX 3.0. Users can choose from a set of five different modes including Fan Speed Mode, PCB Temperature Mode or the colourful rainbow mode. If you prefer, LEDs can also be turned off.
Black Diamond Choke 4
Our Black Diamond Chokes are 10% cooler and 25% more power efficient than a normal choke - and these Mark 4 Chokes reduce the coil temperatures by other 15% over the Mark 3s.
These exclusive chokes will maintain gaming stability using their built-in heatsinks and help minimize coil whine
Dual Ball Bearing - 1.85X longer life
Dual ball bearings on the fan spindles ensure smooth running and long life and are designed to keep out dust. A quiet cooling solution, Two ball-bearing fan features a high-efficiency blade design.
Long life black polymer cap
High quality aluminum-made long life capacitor is not only to extend the component life time, the product reliability and overclocking ability are also improved. When operational temperatures dropped by 20°C, the product life span is going to be extended up to a factor of ten. In addition, when the operational temperature increased by 20°C, the product life span only decreased by 10%.
With NITRO+ models, SAPPHIRE has upped the stakes with its new Fan Check, which allows users to check the cooler's status via SAPPHIRE TriXX 3.0 software, and contact customer support in case of problems.
NITRO Quick Connect
SAPPHIRE’s Quick Connect System provides a quick and easy solution. If there’s a fan issue detected, the user doesn’t need to return the entire card – SAPPHIRE’s partners will send out a replacement fan directly to the customer or the retailer. Please contact your place of purchase to request a fan replacement. SAPPHIRE’s channel partner will arrange the ideal solution for you to receive your replacement fan.
With the SAPPHIRE NITRO Gaming Series cards’ Intelligent Fan Control III, the fan starts precisely at 56 degrees Celsius to smartly balance performance against fan noise.
The new NITRO Boost switch increases the boost clock and power limit for higher performance to unleash the gaming performance of the card.
Planning to overclock or looking for maximum performance? SAPPHRE NITRO cards come with an 8 pin power connector to plug in and enable Nitro Boost.
SAPPHIRE's acclaimed Dual-X Cooling is powered by two massive yet silent fans and state-of-the-art radiator design. The new form of our 95mm blades mean greater airflow and superior heatsink coverage at lower noise compared to standard cooling designs.
These feature dual ball bearing fans, which have an 85% longer lifespan than sleeve bearings in our tests.
The SAPPHIRE NITRO Gaming Series cards come with Dual HDMI ports, specifically designed to work with VR. By having two HDMI ports, you can have both an HD monitor and cutting-edge VR headset running at the same time.
The ports are HDMI 2.0b, the latest update, with an 18Gbps bandwidth, up to 32 audio channels, and is able to support 4K 50/60 resolutions like 2160P, whilst remaining entirely backwards compatible with older HDMI specifications.
Frame Rate Target Control
Frame Rate Target Control (FRTC) enables users to set a target maximum frame rate when playing an application in full screen mode; the benefit being that FRTC can reduce GPU power consumption (great for games running at frame rates much higher than the display refresh rate) and therefore reduce heat generation and fan speeds/noise on the graphics card.
Frame Rate Target Control caps performance not only in 3D rendered in-game scenes, but also in splash screens, loading screens and menus, where frame rates can often run needlessly into the hundreds of FPS. Users might wish to set a very high cap just to limit wasteful FPS like that seen in menus and such, while still taking advantage of the responsiveness given by FPS well beyond 60.
DirectX® 12 is a new, “console-like” graphics API from Microsoft® that empowers game developers with more direct and obvious control of PC hardware. This direct or “explicit” control better exposes the hardware resources of AMD Radeon™ GPUs to yield higher hardware throughput and, ultimately, more performance for users. To put it simply: much more efficient hardware through smarter software! At the discretion of a game developer, this superior efficiency can be spent on higher framerates, lower latency (VR), lower power consumption, better image quality, or some calculated balance of all four. In any scenario, gamers stand to benefit greatly from choosing AMD hardware to run their favorite DirectX® 12 game.
AMD Freesync technology
No stuttering. No tearing. Just gaming.
AMD FreeSync™ technology allows a compatible graphics card and monitor to dynamically change frame rates for the optimum display quality without tearing or stuay.
Freesync uses industry-standard displayport Adaptive-Sync Eliminates screen tearing without all the usual lag and latency
- Synchronizes the refresh rate of a compatible monitor to the frame rate of your content, however much it varies
- Monitor partners are validating with drivers from AMD now
AMD XConnect™ Technology
Plug in and game on with AMD XConnect technology.
Now it’s easier than ever to connect and use an external Radeon™ graphics card. With AMD XConnect™ technology, external GPU enclosures configured with Radeon™ Graphics can easily connect and disconnect to a compatible ultrathin notebook or 2-in 1 over Thunderbolt™ 3 at any time, just like a USB flash drive—a first for external GPUs!
AMD Eyefinity Technology
Multidisplay technology for gaming, productivity and entertainment
We are taking you beyond the boundaries of traditional PC displays. AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive (an average of 42% more productive according to one study).
Take your PC games to the next level of reality and immersion. Most modern games look great on three screens, and only AMD Radeon™ graphics offer you the ability to play across five screens for an eye-popping gaming experience. Other combinations and configurations with up to six screens work too.1 Create your dream display.
Harness the power of multiple GPUs
AMD CrossFire™ technology is the ultimate multi-GPU performance gaming platform. Unlocking game-dominating power, AMD CrossFire™ harnesses the power of two or more discrete graphics cards working in parallel to dramatically improve gaming performance.1 AMD CrossFire™ technology ready graphics cards fit practically every budget. With the flexibility to combine two, three or four GPUs, AMD CrossFire™ technology is the perfect solution for those who demand extreme performance.
High Dynamic Range (HDR) is a state-of-the-art technology for gamers and cinephiles that care deeply about the display quality of their TV or monitor. Modeled after the acuity of human vision, HDR vastly expands the range of colors and contrast ratios that can be shown by compatible displays. HDR-ready games and movies played on an HDR display appear strikingly sharp, colorful, and vivid, with enhanced contrast and sophisticated nuance compared to even the most stunning SDR content.
Interface: PCI Express 3.0
Chipset Manufacturer: AMD
GPU Series: AMD Radeon RX 500 Series
GPU: Radeon RX 570
Boost Clock: 1340 MHz
Stream Processors: 2048 Stream Processors
Effective Memory Clock: 7000 MHz
Memory Size: 8GB
Memory Interface: 256-Bit
Memory Type: GDDR5
DirectX: DirectX 12, OpenGL 4.5, OpenCL 2.0, Shader Model 5.0
HDMI: 2 x HDMI 2.0b
Multi-Monitor Support: Yes
DisplayPort: 2 x DisplayPort 1.4
DVI: 1 x DL-DVI-D
Virtual Reality Ready: Yes
Cooler: With Fan
Dual-Link DVI Supported: Yes
Max Displays: 5
Power Consumption: <195W
Form Factor: 2 Part Slot Occupied
Dimensions (MM): 260(L) x 135(W) x 43(H)
- 500 Watt Power Supply (Suggestion)
- 1 x 8-pin AUX Power Connector
- 1 x 6-pin AUX Power Connector
- Minimum 4GB of system memory / 8GB recommended
- 64-bit operating system required
- Supported operating systems include Windows 10 and Windows 7
- CD-ROM or DVD-ROM drive for installing software
- Blu-Ray™ / HD DVD playback requires Blu-ray / HD DVD drive.
- PCI Express® 2.0 or higher version based PC is required with one X16 lane graphics slot available on the motherboard in order for the card to be compatible with.
- Sapphire Radeon NITRO+ RX 570 Video Card
- Software CD
