Sapphire 21260-00-20G

Sapphire 21260-00-20G SKU: VC1107


Free Shipping!

Discontinued. Please see AMD Radeon RX VEGA Series GPUs

Check Store Stock

Huntsville Store:

Las Vegas:

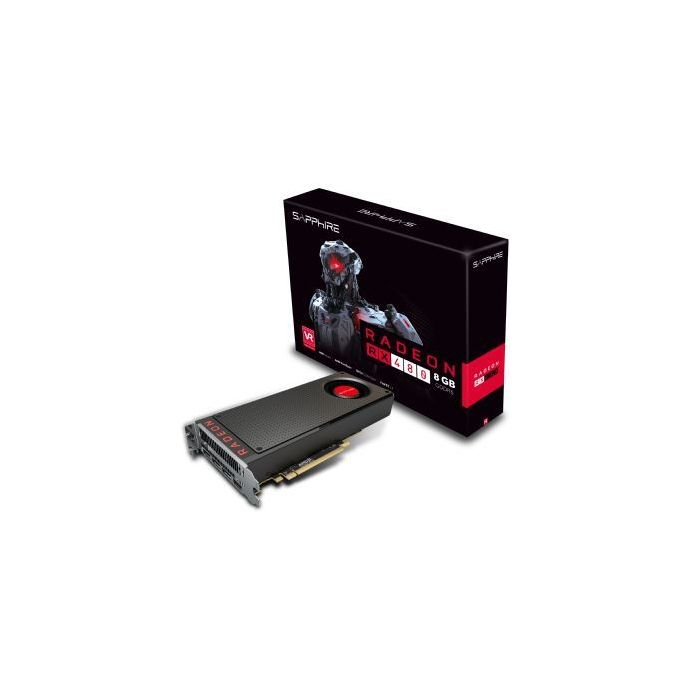

SAPPHIRE Radeon RX 480 8GB GDDR5 DirectX12 VR Premium PCI-e 3.0

The Radeon RX 480 is  based on AMD’s Polaris architecture, and is the industry’s first 14nm FinFET process technology for discrete GPU, which empowers the card to operate efficiently and intelligently. It drives a low system power requirement to deliver cooler and quieter performance. The Radeon RX 480 graphics coupled with AMD LiquidVR technology delivers premium experiences on high-end VR games, entertainment and applications.  Powered by the 4th generation graphics Core Next (GCN) architecture featuring asynchronous shaders and enhanced geometry engine, you can enjoy exceptionally smooth gameplay on the latest DirectX 12 , Vulkan and e-Sports titles.
GPU2304 Stream Processors
14 nm FinFET
4th Graphics Core Next (GCN)
1120 MHz  Engine Clock
1266 MHz Boost Engine Clock
InterfacePCI-Express 3.0
Memory256 bit Memory Bus
GDDR5 Memory Type
8000 MHz Effective Memory Clock
8192 MB Size
DisplaysMaximum 4 Outputs
Output1 x HDMI 2.0b
3 x DisplayPort 1.4
Resolution3840×2160 Pixel DisplayPort Resolution
3840×2160p HDMI Resolution
APIOpenGL® 4.5
OpenCL 2.0
DirectX® 12
Shader Model 5.0
FeatureAMD CrossFire
FreeSync Technology
AMD Eyefinity
Quad HD Display (4K*2K Support)
Intelligent Fan Control
AMD Liquid VR Technology
AMD Virtual Super Resolution(VSR)
AMD TrueAudio™ Next Technology
AMD Xconnect ready
DirectX™ 12 Optimized
Radeon VR ready Premium
HDR Ready
Frame Rate Target Control
Form Factor2 Part Slot Occupied
9.45(L)X4.37(W)X1.46(H) Dimension /Inch
240(L)X111(W)X37(H) Dimension /mm
Power Consumption150W
OSWindows 10 Windows 8/8.1 Windows 7
System Requirement500 Watt Power Supply (Suggestion)
1 x 6-pin AUX Power Connector
CD-ROM or DVD-ROM drive for installing software

  • Specifications provided here are for guidance only. Please check with your regional distributor or dealer for latest specifications.
  • Colors of PCB or other components may differ from those illustrated.
  • SAPPHIRE reserves the right to update or revise specifications without prior notice.
  • All trademarks and logos are acknowledged as the property of their respective holders.
