Samlex SEC-1215UL

$144.00
Samlex SEC-1215UL SKU: ZSX-SEC-1215UL

$144.00

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

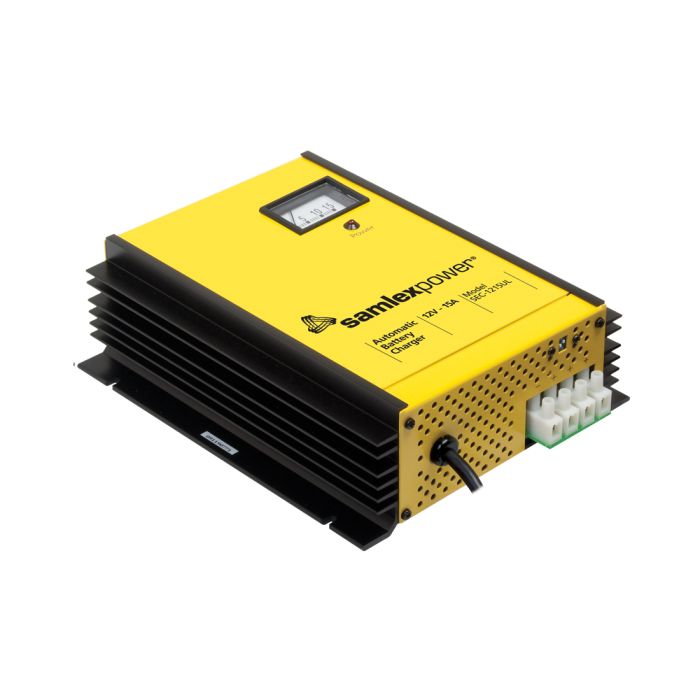

SEC-1215UL Battery Charger - 3 Stage 12 VDC, 15 Amp, c/w Dip Switch & Lugs

This advanced fully automatic three-stage 15 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell) from a 120 V, 60 Hz or 230 V, 50 Hz AC source. By means of a DIP switch setting, conversion to a two-stage algorithm is possible to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short-circuit protection. The unit allows charging of up-to 3 separate battery banks.

  • High efficiency
  • Commercial Grade
  • Lightweight
  • Quiet operation
  • Industry Proven Design – 1000s of units in operation
  • 2 or 3 stage charging (user selectable)
  • 120 or 230 VAC, 50/60 Hz (user selectable)
  • Voltage meter display – Ammeter and LED power status
  • For all types of Lead Acid batteries
  • Charge with a battery load or stand alone
  • Use as a power supply or DC UPS
  • UPC: Universal Protection Circuit – short circuit, overload, reverse battery polarity
  • Charge 3 banks of batteries at once – no isolator necessary

Input: 120 VAC 60 Hz or 230 VAC 50 Hz
Output: 12 VDC
Amps: 15 Amps
Weight: 4.4 (lbs)
Weight: 1.96 (kg)
Dimensions: 8.5 x 8.5 x 3 (in)
Safety: Listed to UL Standard UL-1564, EMI Compliant to FCC Part 15(B), Class B
Warranty: 2 Year Limited
