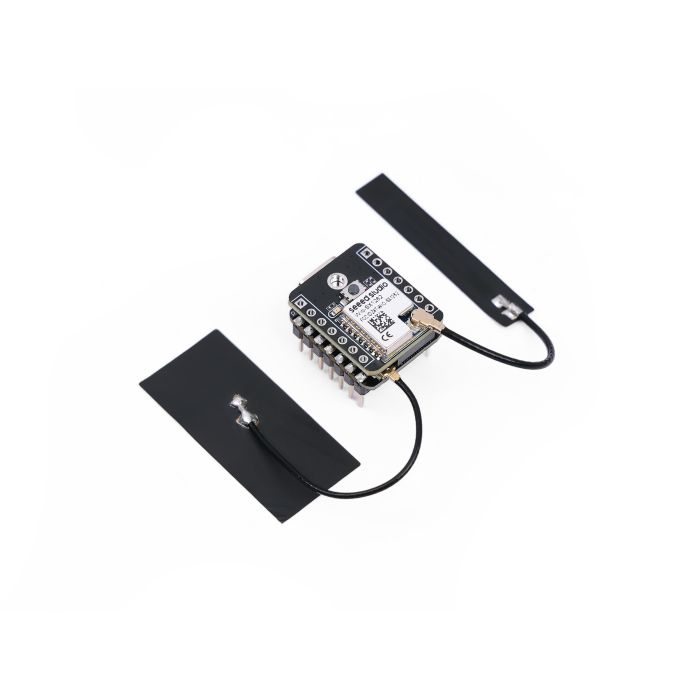

Seeed Studio XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic & LoRa

Feature

• Ready for Meshtastic: Pre-flashed with Meshtastic firmware, the kit works out of the box and can quickly join or create a Meshtastic mesh network.
• Dual Wireless Connectivity: Supports long-range LoRa communication (862-930 MHz) along with 2.4 GHz Wi-Fi and BLE 5.0. When used with a U.FL antenna, it can achieve 2-5 km LoRa communication and 100 m+ Wi-Fi/BLE range.
• Thumb-Sized Compact Design: With a compact size of just 21 x 18 mm and the classic XIAO form factor, it is ideal for space-constrained projects such as wearables and embedded devices.
• Powerful ESP32-S3 MCU: Powered by the ESP32-S3 dual-core Xtensa processor running up to 240 MHz. The board includes multiple expansion interfaces and supports Arduino and MicroPython development.
• Integrated Power Management: Equipped with a USB Type-C interface and built-in lithium battery charging management for flexible power options.
• Flexible for Multiple Applications: The same hardware can be used as a Meshtastic node or router, a single-channel LoRaWAN gateway, or a LoRa/LoRaWAN sensor platform.
• Compatible with XIAO Expansion Board for adding screens and sensors, and add Grove sensors via the Grove expansion board.
• Support connecting an external high-performance LoRa antenna using an IPEX to SMA connector:
  • FPC antenna included in package
  • 2 dBi external antenna and SMA to I-PEX antenna cable
  • 3 dBi fiberglass antenna and RPSMA-K to U.FL RF cable

Application

• Meshtastic Node & Router: An ultra-small node that can serve as a portable device or as a fixed router to expand the Meshtastic network.
• LoRa/LoRaWAN Sensor: A mini LoRaWAN sensor, ideal for beginners exploring LoRa/LoRaWAN. It can be used with the XIAO extension board and Grove sensors for rapid prototyping.
• LoRaWAN Single Channel Gateway: The most cost-effective single-channel LoRaWAN gateway for connecting multiple LoRaWAN sensors and transmitting data to LoRaWAN Network Servers such as The Things Network and Chirpstack.
