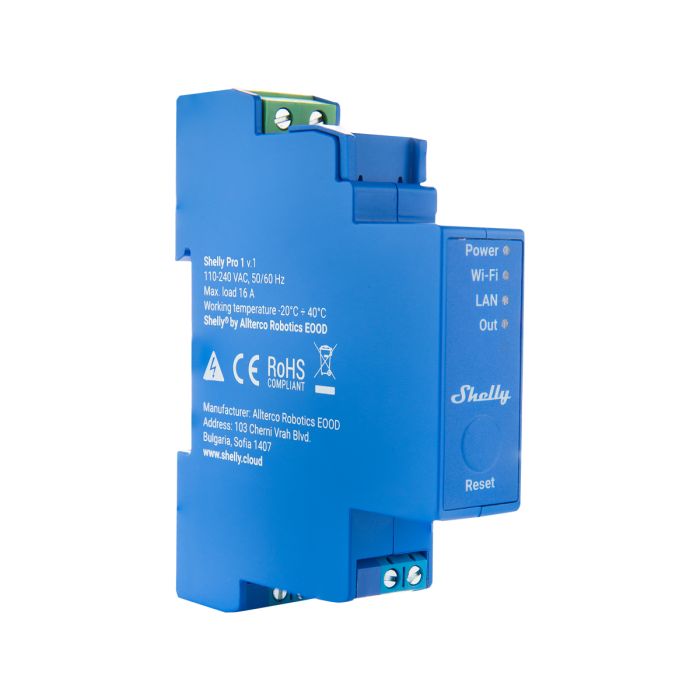

Shelly Pro 1
1-phase, 1-channel relay with potential-free outputs (dry contacts), supporting up to 16A for professional lights and appliance automation for residential or commercial use.
Key Features
- LAN, Wi-Fi, and Bluetooth connection
- 1 output, 16A
- Dry contacts
- Easy control through the Shelly app, various protocols, and platforms, as well as voice assistants
- Supports KNXnet / IP communication
The best solution for new home buildings and business facilities
Shelly Pro 1 is a one-phase, 1 channel relay supporting up to 16 A for professional lights and appliance automation in residential or commercial applications. It is equipped with potential-free outputs (dry contacts) offering high flexibility in voltage support and applications. Shelly Pro 1 has scripting functionalities for custom automation scenes based on external data or various occurrences.
Shelly Pro Series
Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
Enhanced safety features
- Overheating protection: In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.
- Overpower protection: Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
- Overvoltage protection: Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
- Flame Retardant (V-0): All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
- LAN, Wi-Fi, and Bluetooth connectivity: LAN connection for high security and reliability. Simultaneous Wi-Fi and LAN usage, as back up when needed.
- DIN-mountable: Intended to be installed inside the breaker box and designed to meet the global DIN rail standardization.
- Dry contacts: Use a wide range of output voltage levels. Supports low voltages.
- Low and high voltage support: Use it to control a wide range of AC devices and appliances.
- Enhanced safety & security: Improved safety features and TLS 1.2 support, allowing a broad range of secure cloud-connected and local integrations.
- Scripting capabilities: Shelly Pro 1 fully supports mjS scripting, allowing you to create further features and functionalities.
Pro Series features
- HTTP/HTTPS webhooks for quick connection: Enhanced with HTTP/HTTPs webhooks, Shelly Pro line can easily connect with, notify or control other compatible equipment or 3rd party automation system.
- Smart actions that follow the Sunrise/Sunset: Shelly Pro line can switch on/off the power, depending on the Sunset/Sunrise hour, allowing dynamic control of the electrical equipment depending on the season.
- Automation with weekly scheduling: Shelly Pro line allows you to set up to 20 actions based on your daily or weekly schedule with no need for an external hub or server.
- Scripting for custom automation: Shelly Pro line fully supports mjS scripting, allowing customers to create their own features and functionalities.
KNX Support
