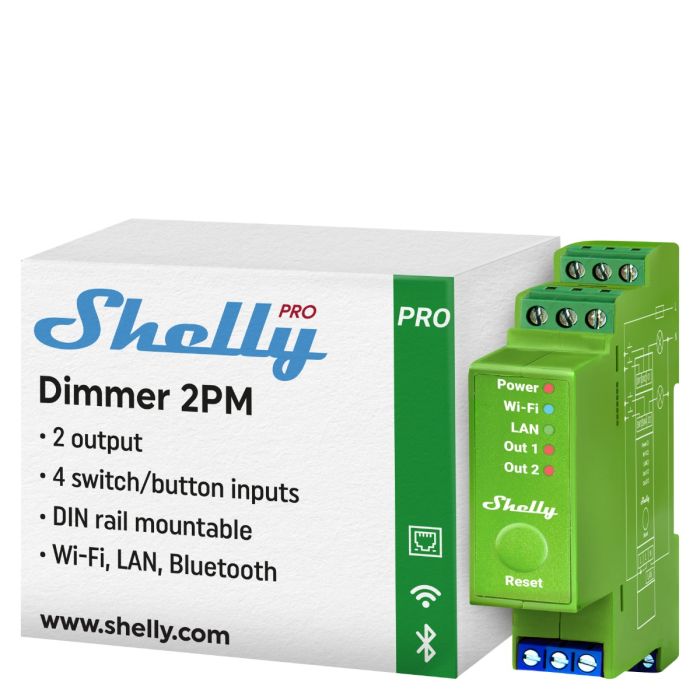

Shelly Pro Dimmer 2PM
DIN-rail mountable, smart dimmer with power monitoring. Use it to control dim, and power measure a wide range of halogen lights, dimmable LED and ferromagnetic transformers (110-240V).
Key Features
- LAN, Wi-Fi, and Bluetooth connection
- Power metering
- Free storage data (using Shelly App)
- Night mode for lower brightness during night hours
- Automatic dimming calibration
- Switch/button input mode
- Use with your existing switches (one/dual button control)
- Adjustable min/max brightness
- Adjustable button fade rate and transition time
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
- Wi-Fi Range Extender & BLE Gateway
- Extremely fast processor: ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
- Supports KNXnet / IP communication
The best dimming solution for new home buildings and business facilities
Shelly Pro Dimmer 2PM is a DIN-rail mountable, two-channel smart dimmer with power monitoring. Use it to control, dim, and power measure a wide range of halogen lights, dimmable LED, and ferromagnetic transformers between 110-240V. Different types of actions, scenarios, and schedules can be set to sync your lighting environment to your daily activities or business needs.
Shelly Pro Series
Enhanced with temperature, overpower, and overvoltage load protection, Shelly Pro series is designed to be installed inside the breaker box (DIN). Allowing full smart automation with no additional cables or wiring, Shelly Pro line is perfect for homes, offices, stores, business, and manufacturing facilities, as well as new buildings.
Enhanced safety features
- Overheating protection: In case of unsafe temperature levels or rapid temperature increase, device switches off the outputs and sends notification. Internal temperature sensor is measuring the heat every 100 ms.
- Overpower protection: Detected overpower will lead to outputs switch off by the device and it will immediately send a notification. Overpower protection feature protects the device and other electrical equipment from potential damage.
*Feature is available only for power metering-enabled devices
- Overvoltage protection: Voltage peaks could be dangerous for electrical appliances and machines. To avoid damage to the electrical appliances the device switches off the outputs when overvoltage peaks are detected and immediately sends a notification.
- Flame Retardant (V-0): All Shelly Pro components are produced with flame-resistant materials and will keep their construction even when exposed to high levels of heat.
- LAN, Wi-Fi, and Bluetooth connectivity
- Light intensity adjustment
- Power Monitoring
- Flexible input control
- Enhanced safety & security
- Smart scenes
Pro Series features
- HTTP/HTTPS webhooks for quick connection
- Smart actions that follow the Sunrise/Sunset
- Automation with weekly scheduling
- Scripting for custom automation
KNX Support
