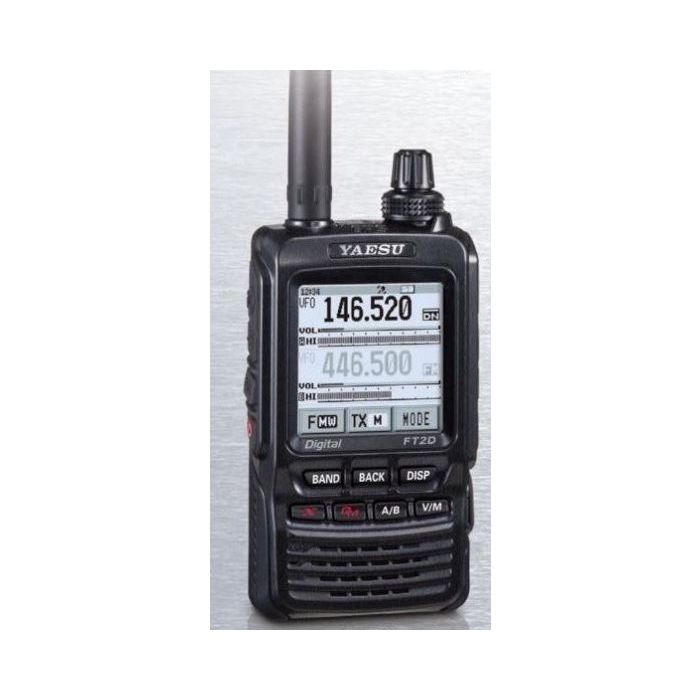

Showroom Demo Yaesu FT-2DR S/N: 5L120373
Was the Showroom Display radio for the Huntsville Store
Radio Features:
- System Fusion Compatible
- C4FM Digital V/D Mode, Voice FR Mode, Data FR Mode and Conventional FM
- FM friendly digital operation with AMS (Automatic Mode Select)
- Easy Operation with 1.7" x 1.7" Large Touch Panel Display
- 700 mW of Crystal Clear Audio
- Snapshot Function with Image Data Display on LCD
- Built-in High Sensitivity 66ch GPS with antenna
- Smart Navigation Function
- Snapshot Function and Transmitting Image Data
- Digital Group Monitor (GM)
- 1200 bps / 9600 bps APRS® Built-in
- V/V, U/U, V/U Dual Watch and C4FM Digital/C4FM Digital Dual Monitor
- Wide Band Receive Capability 0.5 - 999 MHz (A Band),180-580 MHz (B Band) (USA Cellular blocked)
- AF DUAL Monitor Capability
- Equipped with microSD Card Slot
- GPS Logging/recording to SD Card
Specifications:
Frequency Ranges:
Main Band RX :
0.5 - 1.8 MHz (AM Broadcast)
1.8 - 30 MHz (SW Band) 30 - 76 MHz (50 MHz HAM)
76 - 108 MHz (FM Broadcast) 108 - 137 MHz (Air Band)
137 - 174 MHz (144 MHz HAM) 174 - 222 MHz (VHF Band)
222 - 420 MHz (GEN1) 420 - 470 MHz (430 MHz HAM)
470 - 774 MHz (UHF Band) 774 - 999.90 MHz (GEN2)
Sub Band RX: 108 - 137 MHz (Air Band)
137 - 174 MHz (144 MHz HAM)
174 - 222 MHz (VHF Band)
222 - 420 MHz (GEN1)
420 - 470 MHz (430 MHz HAM)
470 - 580 MHz (UHF Band)
TX: 144 - 148 MHz, 430 - 450 MHz
Circuit Type: NFM/ AM:Double-Conversion Superheterodyne
FM /AM Radio: Direct-Conversion
Modulation Type: F1D, F2D, F3E, F7W
RF Power Output: 5 W (@ 7.4 V or EXT DC)
Channels: 1245
Waterproof Rating: IPX5
Case Size(W x H x D):
62 x 110 x 32.5 mm (w/ SBR-14LI, w/o Knob and Antenna)
62 x 110 x 27 mm (w/o SBR-14LI, Knob and Antenna)
