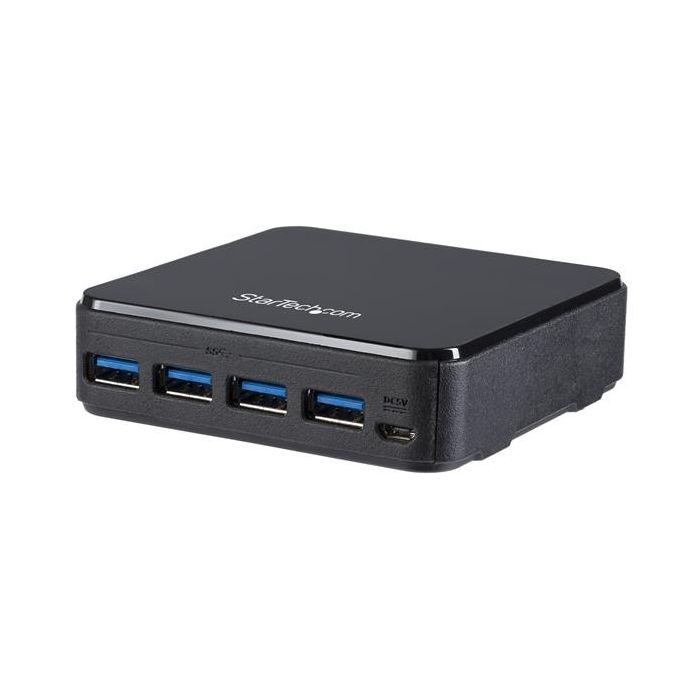

Startech 4x4 USB 3.0 Switch

• Save costs by sharing four USB peripherals between four computers
• Remote port selector lets you switch devices from one computer to another, with the press of a button
• USB 3.0 throughput support with data transfer rates of up to 5Gbps (backwards compatible)

WARRANTY INFORMATION
Warranty 2 Years
HARDWARE
Bus Type USB 3.0
Fast-Charge Port(s) No
Interface USB 3.1 Gen 1
Ports 4
USB-C Device Port(s) No
USB-C Host Connection No

PERFORMANCE
Maximum Data Transfer Rate 5 Gbps
Optional power requirements 5V 2A
Type and Rate USB 3.0 - 5 Gbit/s

CONNECTOR(S)
External Ports 4 - USB Type-A (9 pin) USB 3.0 Receptacle
4 - USB Type-B (9 pin) USB 3.0 Receptacle
1 - USB Micro-B (5 pin) (Power) Receptacle
SOFTWARE
OS Compatibility OS Independent - No software or drivers required

SPECIAL NOTES / REQUIREMENTS
Note The switch does not require an external power source as it draws power from the computers that it’s connected to. If you have a special application that requires additional power, such as higher powered USB peripherals or if less than 4 hosts are connected and powered at one time, connect a 5V source to the power adapter port (USB Micro-B).

INDICATORS
LED Indicators 4 - Computer selection indicators
POWER
Power Source USB-Powered
ENVIRONMENTAL

Humidity 0~80% RH
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)

PHYSICAL CHARACTERISTICS
Color Black
Enclosure Type Plastic
Form Factor Compact
Product Height 1 in [26 mm]
Product Length 3.7 in [94 mm]
Product Weight 4.4 oz [124 g]
Product Width 3.7 in [94 mm]

PACKAGING INFORMATION
Shipping (Package) Weight 20.1 oz [570 g]
WHAT'S IN THE BOX
Included in Package 1 - peripheral sharing switch
1 - 1.8 m [6 ft] remote port selector
4 - USB 3.0 cables - USB-A to USB-B
2x 1.2 m [4 ft] / 2x 1.8 m [6 ft]
1 - quick-start guide
Supports any operating system.
No additional drivers or software required.
