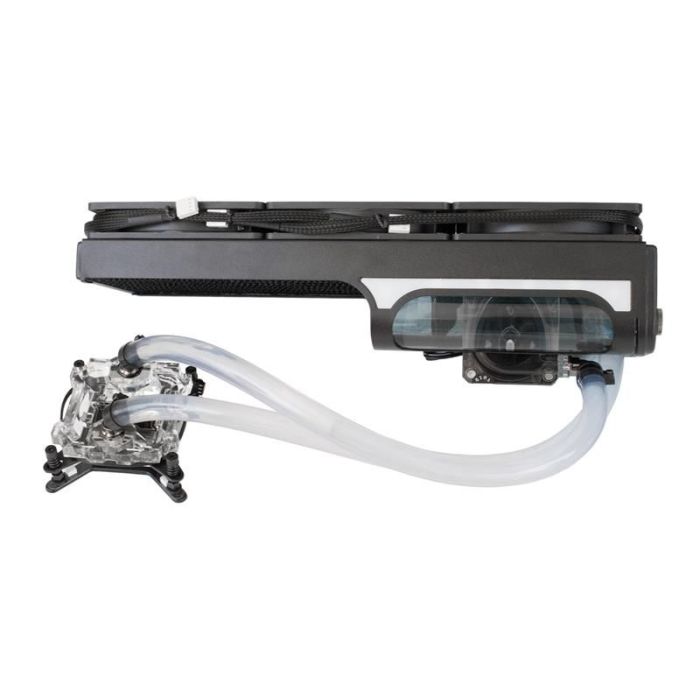

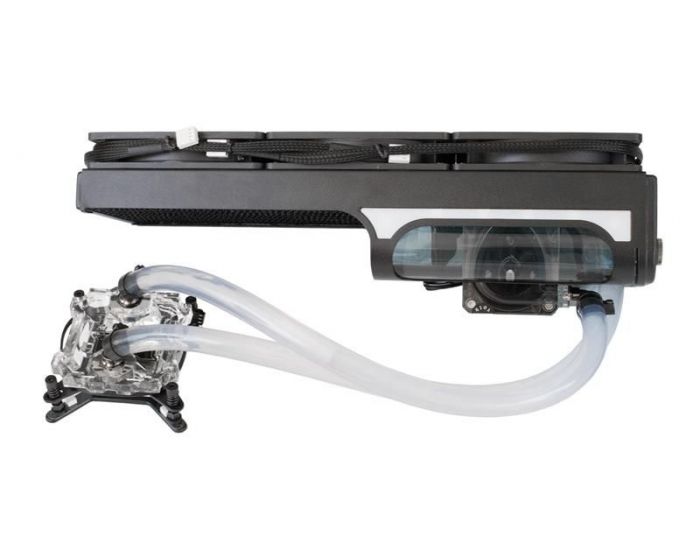

Swiftech H320 X2
What's New !
Three radiator sizes are now available for dual 120mm fans, triple 120mm fans, and dual 140mm fans. Each series is available in two versions:
Standard, using barb fittings and Swiftech® Helix™ fans, or
Prestige, using Swiftech® Lok Seal™ black chrome compression fittings and Noiseblocker™ NB-eLoop fans.
A fully redesigned patent-pending radiator/reservoir/pump combo featuring a large clear acrylic reservoir of tubular shape, and showing the inner workings of the system’s powerful pump. The large coolant reserve prolongs operations without maintenance well beyond the 3 year product warranty. The quality of the radiator, its paint in particular , has been vastly improved.
A new CPU waterblock, the Apogee™ XL2, which now features chrome plated copper base plate and a redesigned housing with enhanced flow characteristics for better hydraulic performance. The housing is now made of clear acrylic material to visualize the coolant flow path, and to create fantastic color and light reflections. The installation hardware has been enhanced for an even easier and trouble-free installation, and it is compatible with all current desktop processors from Intel® and AMD.
A clear departure from all other AIO's: the use of maintenance free Mayhem ultra-clear tubing, providing the overall custom looks and feel of the product: now, you can clearly see that your system is liquid cooled!
The use of addressable RGB LED’s (ALED) lighting throughout the system: on the waterblock, reservoir, and radiator accent piece; addressable LED’s are the latest and greatest in the world of LED lighting, providing control over each individual LED for unparalleled possibilities in terms of lighting effects.
A new PWM splitter including the ALED lighting control button, allowing users to connect the system PWM devices (fans and pump), and to switch the LED’s to 7 different colors and 3 gradually increasing intensities; the device also includes connectivity to the chassis control panel, utilizing the ubiquitous reset button for instance to switch colors of the LED’s at will.
The inclusion of red, blue and green Mayhem color dyes, so users can customize their own color experience and give their system the finishing touch of their choice.
What has NOT changed
Copper & brass radiator with patent pending integrated high pressure pump & reservoir capable of driving multiple additional devices in the loop.
Enthusiast grade Apogee™ class waterblock.
|"From virtually silent to comfortable audible noise levels"||Our design objective for all Swiftech® products is always to minimize the operating noise while preserving high thermal performance characteristics. At its lowest speed settings, the H320 X2 system is virtually inaudible. At its maximum speed, it remains within comfortable audible noise levels.|
|"Plug-and-Play"||With pre-installed fans, and the new Apogee™ XL2 mounting system, the H320 X2 is probably the easiest AIO liquid cooling kit to install bar none, and is even easier to setup than many high-end air coolers.|
|"Superior Thermal Performance"||Thanks to its copper & brass triple 120 mm radiator, high static pressure Helix 120 mm fans, more powerful DC pump than any other AIO on the market, and because it uses the Award winning Apogee™ XL2 series waterblock, the H320 X2 kit delivers superior thermal performance to any comparably sized system on the market.|
The H320 X2 differentiates itself from other AIO's by its ability to be fully customized, and to support additional liquid cooled components such as graphics cards, chipset, and/or additional radiator(s).
|"Automatic speed and lighting control right out of the box"||Speed control of fan and pump are PWM compliant, allowing the H320 X2 to be recognized and controlled by the motherboard depending on CPU temperature just like any standard CPU cooler. The system includes a PWM splitter allowing connection of up to 4 PWM devices (2 to 3 fans depending on model + the pump) which can then be controlled as one by the motherboard. |
For lighting control, the PWM splitter also includes 3 more connectors for the all new ALED lighting system, a two-pin connector that can be used for remote control (utilizing the mostly unused reset switch for instance), and finally a small button to change both colors and intensity of the LED's.
|"Maintenance-free"||As shipped from our factory and installed as directed, the H320 X2 CPU cooler requires no maintenance during its 3 year warranty period. If upgraded by the user, the interval of time between refills will depend on how users implement their customized loop.|
|"Installation in any orientation"|
The radiator can be installed horizontally or vertically - right side up or upside down in both configurations: in other words, horizontally with the pump/reservoir facing down (top of the case), horizontally with the pump/reservoir facing up (bottom of the case - * see important note below), vertically with the pump/reservoir at top (back of the case), vertically with the pump/reservoir at bottom (front of the case), or it can also be installed on the side.
* Important note: when installed horizontally with the pump/reservoir facing up, the amount of space available for air trap is reduced, therefore necessitating to keep the reservoir always full of coolant, particularly at high pump speed, in order to avoid entrainment of air into the pump. Because of this limitation, the 3 year no-maintenance representation stated above cannot be ascertained in such configuration.
|"Best Case Compatibility"||Thanks to the location of the integrated pump & reservoir, the overall radiator length is in fact the shortest in its class of all AIO's on the market. This will help to fit the H320 X2 in cases where most other AIO's would not.|
|"Reliability"||Both fans and pump are rated for a 60,000 MTBF (Meantime Between Failures)|
|"Support"||With over 10 years of experience designing, manufacturing and setting up liquid cooling systems, Swiftech® customer service can assist you in setting up and troubleshooting your system 6 days a week, 12 hours a day.|
We are here to help!
|Radiator with patent pending integrated pump and reservoir (1 each)|
|Material||Brass tubes, louvered copper fins|
|Body dimensions||127 x 375 x 28 mm|
|Fill-port thread class||G 1/4|
|Barb fittings||Integrated swivel 90° elbows, 3/8" (10mm) OD|
|Pump speed control||PWM|
|Pump Speed range||1200 ~ 3000 RPM|
|Pump nominal voltage||12 VDC|
|Pump nominal power||6W|
|Max. Static Pressure||2.8 mH₂O|
|Max. discharge||11 l/mn|
|Redundant fail safe|
|Pump Bearing type||Ceramic shaft, PTFE bearing|
|Pump Power connector||SATA|
|Pump RPM & PWM connector||Mini 4-pin|
|Pump MTBF||60,000 hours|
|Pre-installed Helix™ Fan (3 each)|
|Dimensions||120 mm x 120 mm x 25 mm|
|Speed range||800+/- 25% ~ 1800+/- 10% RPM|
|Airflow range||24 ~ 55 CFM|
|Static pressure range||0.53 ~ 2.29 mmH₂O|
|Noise level range||<16 ~ <33 dB/A|
|Nominal Voltage||12 v|
|Nominal current||0.2 A|
|Apogee™ XL2 Waterblock (1 each)|
|Housing material||Clear acrylic|
|Base plate material||C110 copper|
|Cooling engine||0.25mm x 0.25mm micro-pin array|
|Barb fittings||Swivel elbows, 3/8" (10mm) OD|
|Port thread||G1/4 standard|
|Installation hardware & processor + socket compatibility|
|Tubing & Coolant|
|Dimensions||5/8" x 3/8" (16/10mm)|
|Coolant||Pre-filled with non-toxic propylene glycol coolant mix|
|Clamps (4 each)|
|Material||Black anodized aluminum|
|PWM splitter (1 each)|
|RPM signal port||Channel 1|
|2 pin connector||1|
|PWM/RPM connector||Mini 4-pin|
|Installation hardware||Peel-off sticker, mounting screws & nuts|
|Tim-Mate 2, 1g syringe thermal compound|
|Quick Installation Guide|
