Specifications |

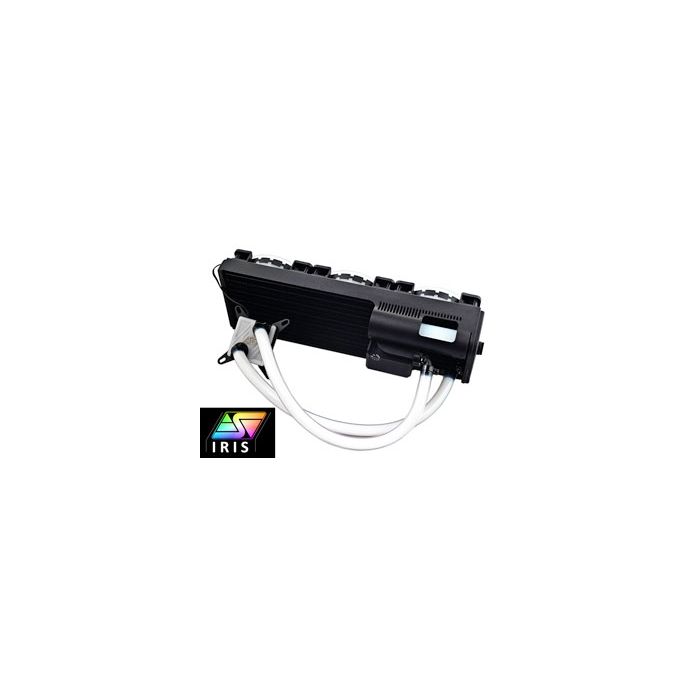

Radiator with patent pending integrated pump and reservoir (1 each) |
Radiator body |
Material |
Brass tubes, louvered copper fins |
Body dimensions |
127 mm x 254 mm x 28 mm (H240X3) / 127 mm x 375 mm x 28 mm (H360X3) / |
Fill-port thread class |
G 1/4 |
Barb fittings |
Integrated swivel 90° elbows, 3/8" (10mm) OD |
Installation hardware |
Standard: (8) coarse thread fans screws |
Alternate: (8) 6-32 x 1 3/16 (30mm) Philips screws |
|
Lighting type |
Swiftech IRIS compatible ALED |
Reservoir |
Material |
Tempered Glass |
Capacity |
70 ml |
Lighting type |
Swiftech IRIS compatible ALED |
Pump |
Pump speed control |
PWM |
Pump Speed range |
1200 ~ 3000 RPM |
Pump nominal voltage |
12 VDC |
Pump nominal power |
6W |
Max. Static Pressure |
2.8 mHâ‚‚O |
Max. discharge |
11 l/mn |
Redundant fail safe |
Software current limiting fail-safe and |
Hardware shutoff built-into the pump power wires. The hardware fail safe is only triggered in case of a firmware malfunction. |
|
Pump Bearing type |
Ceramic shaft, PTFE bearing |
Pump Power connector |
SATA |
Pump RPM & PWM connector |
Mini 4-pin |
Pump MTBF |
60,000 hours |
ROHS |
Compliant |
Helix™ IRIS Fan |
Dimensions |
120 mm x 120 mm x 25 mm |
Speed control |
PWM |
Speed range |
900+/- 25% ~ 1800+/- 10% RPM |
Airflow range |
24 ~ 60 CFM |
Static pressure range |
0.61 ~ 2.35 mmHâ‚‚O |
Noise level range |
<16 ~ <32 dB/A |
Nominal Voltage |
12 v |
Nominal current |
0.2 A |
Bearing Type |
Z-axis |
Connector |
Mini 4-pin |
MTBF |
60,000 hours |
ROHS |
Compliant |
Apogee™ SKF "LT" Waterblock |
Housing material |
Acetal |
Base plate material |
C110 copper |
Cooling engine |
0.125mm x 0.125 micro-fin array |
Barb fittings |
Swivel elbows, 3/8" (10mm) OD |
Port thread |
G1/4 standard |
Installation hardware & processor + socket compatibility |
For Intel LGA 1150/51/55/56 |
M4 to M3 Standoffs + Back-plate |
For Intel LGA 2011 |
(4) Spring loaded screws with M4 thread |
For AMD AM2, AM3, FM1,FM2, 93, AM4, TR4 |
(2) Pre-assembled brackets & spring loaded screws |
Bracket installation screws |
|
Lighting type |
Swiftech IRIS compatible ALED |
Tubing & Coolant |
Material |
Mayhem non-plasticizing PVC tubing |
Color |
Clear |
Dimensions |
5/8" x 3/8" (16/10mm) |
Coolant |
Pre-filled with Mayhem's non-toxic Pastel Nanofluid Coolant |
Clamps (4 each) |
Material |
Black anodized aluminum |
IRIS ECO V2 Controller (1 each) |
PWM Ports |
4 |
RPM signal port |
Channel 1 |
ALED connectors |
3 |
2 pin connector |
1 |
Power connector |
SATA |
PWM/RPM connector |
Mini 4-pin |
Installation hardware |
Peel-off sticker, mounting screws & nuts |
ROHS |
Compliant |
Tim-Mate 2, 1g syringe thermal compound |
Quick Installation Guide |
