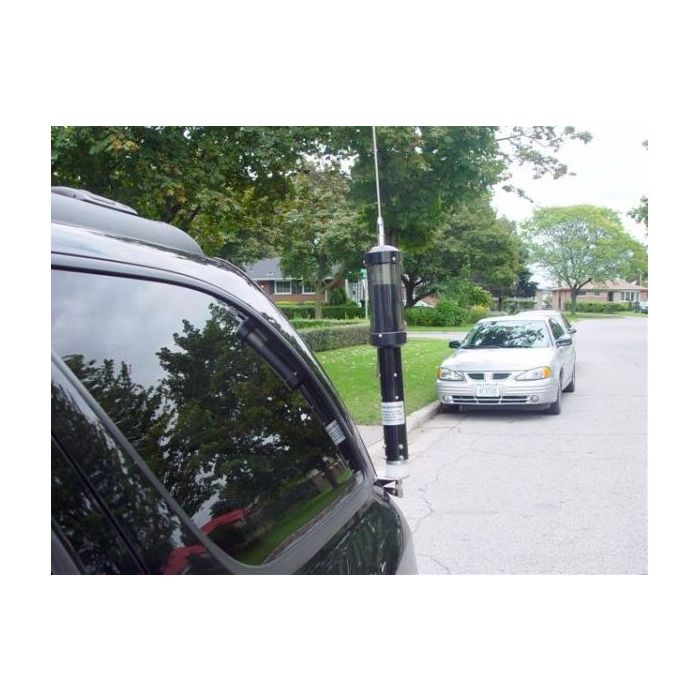

When properly installed on your vehicle the Model 75 "Stubby" will provide continuous coverage from 3.5 to 30 MHz with a 6' whip.
The Model 75 gives you low profile like the Little Tarheel II and the larger coil like the larger Tarheels. The lower mast of the Model 75 is 16" in height like the Little Tarheel II but has the 2" coil like the Model 300. So, we nicknamed it "Stubby".
All of our antennas come with the sensors already pre-installed so if you decide to add one of the auto controllers (SDC-100B Simple Controller, SDC-102 Programmable Controller, Turbo Tuner) now or later everything is ready.
What makes our antennas stand above the rest is all of our CNC machined components are either aircraft aluminum or stainless steel and blueprinted, meaning you can take 100 antennas apart and mix up the parts then reassemble them and they all work the same. Our coil form is approximately 2" in diameter and made of fiberglass. The other antenna builders know fiberglass is better but they choose not to use it because of the expense and difficulty in machining. The decoupler we use is CNC machined for tight tolerances with custom fingerstock designed to contact 5 turns of coil all the time with over 25 lbs. of combined contact pressure. With this design you can run up to 250 watts P.E.P trouble free.
The Pittman 12 volt commercial grade gear motor is very durable and very quiet while receive tuning.
Our weather shield is made of LexanTM. This is the same stuff used on racecar windshields and even used to make bulletproof windows.
Tarheel Model 75A WhiteTarheel Model 75A White
