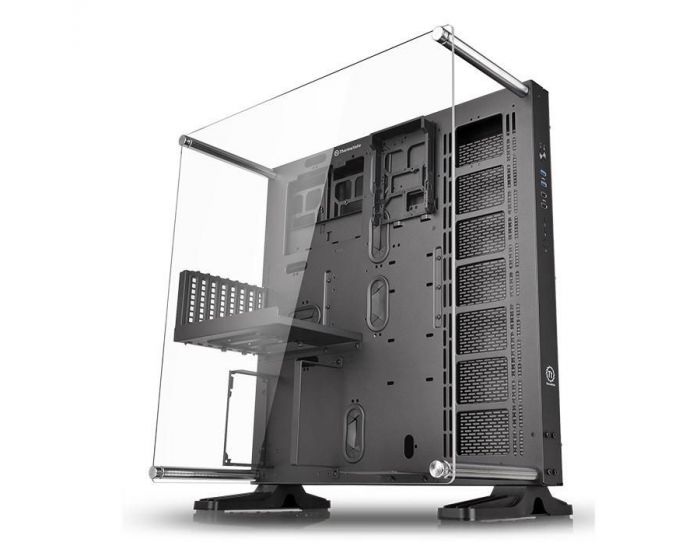

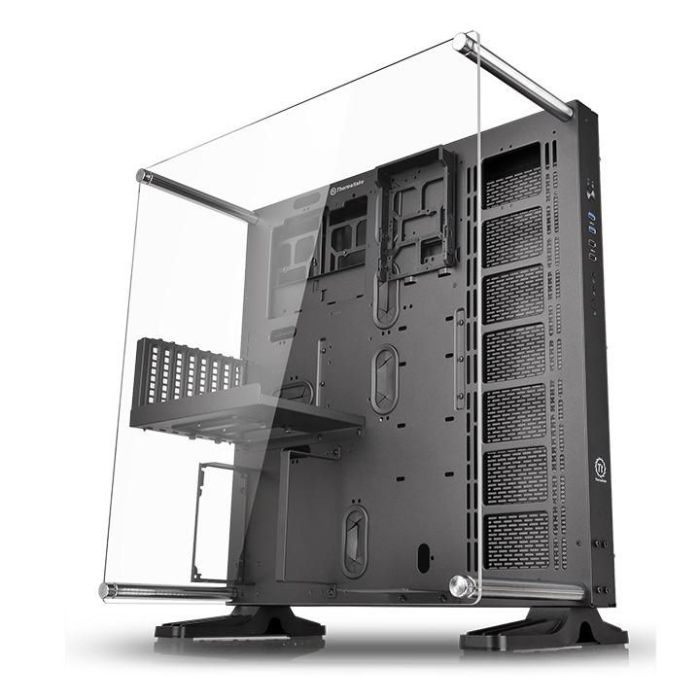

Thermaltake Core P5 Open Frame, Wall Mountable ATX Enclosure - Acrylic Window - Mid-Tower Chassis

Take presentation to the next level with the Core P5 Open Frame chassis by Thermaltake. The fully modular design of the Core P5 allows flexibility for 3-way placement layouts (Wall mount, Horizontal and Vertical), dual GPU layout locations: Horizontal and Vertical and placement locations for liquid cooling components. Uncover greatness with the Core P5's panoramic viewing angle with its large acrylic window to protect and present. Seeing is believing, the Core P5 brings the ultimate in PC hardware viewing wherever you mount or display.

Model: Core P5
P/N: CA-1E7-00M1WN-00
Case Type: Mid Tower
Dimension (H x W x D):

  • 608 x 333 x 570 mm
  • (23.9 x 13.1 x 22.4 inch)
Net Weight: 12.2 kg / 26.9 lb
Side Panel: Transparent Window
Color: Black
Material: SPCC
Drive Bays:
  • Accessible: 1 x 3.5’’ or 2.5’’ (HDD tay)
  • Hidden: 3 x 3.5’’ or 2.5’’ (Behind the M/B tray)
Expansion Slots: 8
Motherboards: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Ports: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU: Standard PS2 PSU (optional)
Fan Support:
Left Side:
  • 4 x 120mm
  • 3 x 140mm
Radiator Support:
Left Side:
  • 1 x 480mm
  • 1 x 420mm
Clearance:
  • CPU cooler height limitation: 180mm
  • VGA length limitation: 280mm (With Reservoir), 320mm (Without Reservoir)
  • PSU length limitation: 200mm

* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
