TL-SG1048

$289.99
TL-SG1048 SKU: NH0398

$289.99

Free Shipping!

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

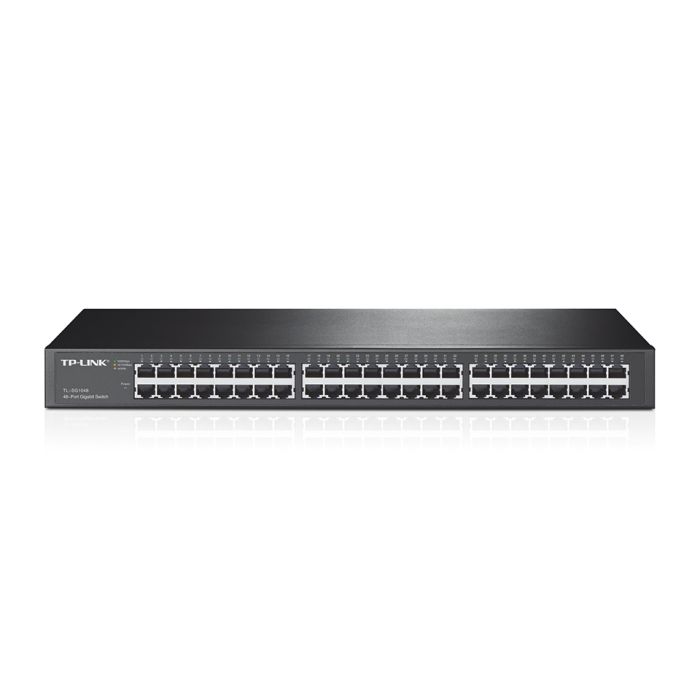

TP-LINK 48-Port Unmanaged Rackmount Gigabit Switch - 96Gbps

The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

  • 48 10/100/1000Mbps RJ45 ports
  • Innovative energy-efficient technology saves power up to 18%
  • Supports MAC address self-learning and auto MDI/MDIX
  • Standard 19-inch rack-mountable steel case
  • Innovative energy-efficient technology saves power up to 18%
  • 100% Data filtering rate eliminates all error packets
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
  • 96Gbps Switching Capacity
  • Auto MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Support the port N-Way Auto-Negotiation, Store and Forward.
  • Compact size design for desktops, Rackmountable
  • Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity 2
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 29.8W (220V/50Hz)
Dimensions ( W x D x H ) 17.32*8.7*1.73 in.(440*220*44 mm)
PERFORMANCE
Switching Capacity 96Gbps
Packet Forwarding Rate 71.4Mpps
MAC Address Table 8K
Buffer Memory 16Mb
Jumbo Frame 10KB
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
