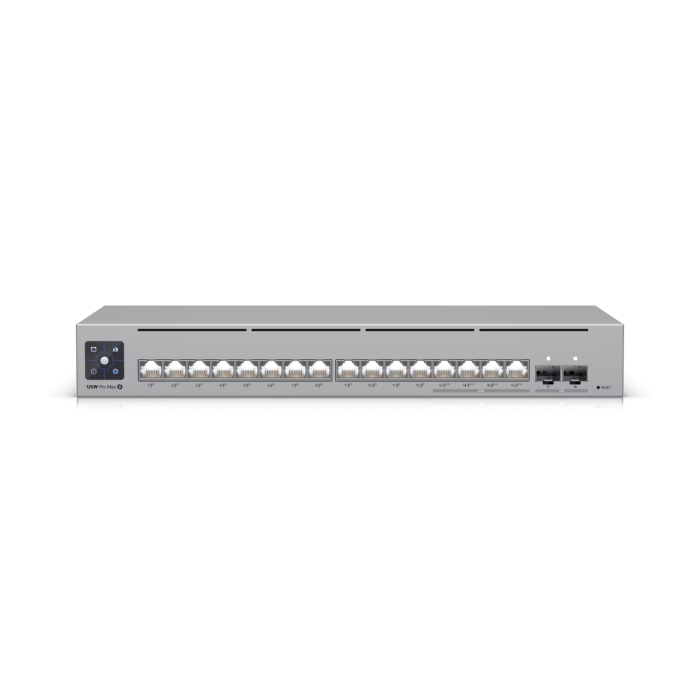

Ubiquiti Pro Max 16 PoE 12-16 Port Switch - USW-PRO-MAX-16-POE

Name: Ubiquiti Pro Max 16 PoE 12-16 Port Switch - USW-PRO-MAX-16-POE
Brand: Ubiquiti
SKU: NH1876
Price: 439.99 USD
Availability: BackOrder

SKU: NH1876

Availability:

Accepting Backorders

$439.99

VIP Price

After Mail-In Rebate

Reserve yours now!
(Ships In 7-14 Days)

Description

Features

Specifications

Feature	Detail
Dimensions	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Port Layout	1 GbE RJ45: 12 (All PoE+, 1G/100M/10M) 2.5 GbE RJ45: 4 (All PoE++, 2.5G/1G/100M/10M) 10G SFP+: 2 (10G/1G)
Max. PoE Output	Up to PoE++
Total PoE Availability	180W
Layer 3	✓
Form Factor	Rack mount (1U), desktop, wall
Etherlighting™	✓
Switching Capacity	84 Gbps
Total Non-Blocking Throughput	42 Gbps
Forwarding Rate	62 Mpps
Supported VLANs	1,000
MAC Address Table Size	16,000
IPv4 Static Routes	256
Packet Buffer Size	1.5 MB
IPv4 Access Lists	128
MAC Access Lists	128
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing	✓
Static Routing	✓
Layer 2 Features	LACP Port Aggregation, STP & RSTP, QoS (DSCP), Pro AV Profiles, Advanced IGMP Configuration, IGMP Snooping, 802.1X Control, MAC-Based ACLs & Device Isolation, DHCP Snooping & Guarding, Egress Rate Limit, Flow Control, Storm Control, Multicast & Broadcast Rate Limiting, MAC Address Blocking, IP-Based ACLs & Network Isolation, MAC-Based Port Restriction, Port Isolation, Port Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection, Virtual Network Override
PoE+ Ports	12
PoE++ Ports	4
Max PoE Wattage per Port	PoE: 15.4W, PoE+: 32W, PoE++: 60W
Max Power Consumption	25W (excluding PoE output), 210W (including PoE output)
Power Method	AC Adapter
Power Input Method	AC Input
Power Supply	AC/DC, External, 210W
Supported Voltage Range	50–54V DC
Management	Ethernet, AR
Heat Dissipation	68 BTU/hr (excluding PoE output)
Weight	2.1 kg (4.6 lb)
Enclosure Material	SGCC Steel
Mount Material	SGCC Steel
Supported Rack Depth	400~1200 mm (15.7~47.2")
LCM Display	1.3" Touchscreen
Ambient Operating Temperature	-5 to 40°C (23 to 104°F)
Ambient Operating Humidity	10 to 90% noncondensing
NDAA Compliant	✓
Certifications	CE, FCC, IC, Anatel: 08953-24-08356
Application Requirements	UniFi Network Version 8.1.127 and later
