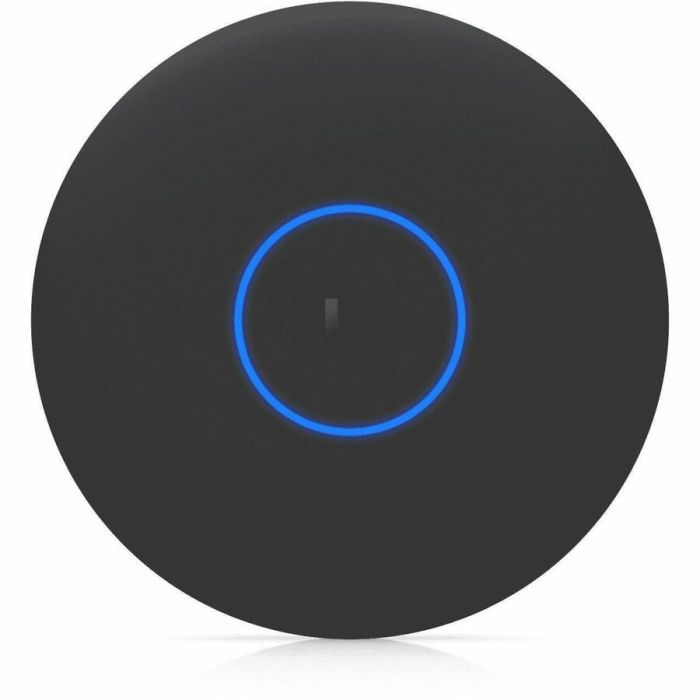

U7 Pro XGS WiFi 7 Access Point
The U7 Pro XGS is a high-performance, ceiling-mounted WiFi 7 Access Point (AP) designed for demanding enterprise environments that require ultra-fast and reliable wireless connectivity. This AP features an advanced 8-stream architecture, a dedicated spectral scanning radio, and high-speed multi-gigabit Ethernet support.
With support for the cutting-edge WiFi 7 standard, the U7 Pro XGS delivers a massive combined throughput, with a maximum data rate of 8.6 Gbps on the 5 GHz band and 5.8 Gbps on the 6 GHz band. The dedicated spectral scanning radio provides Real-Time Spectral Analysis for optimal channel selection and network stability. Connectivity is handled by a single 10 GbE RJ45 port and the unit is powered via PoE++. Capable of handling 500+ clients and providing a coverage area of 160 m² (1,750 ft²), this AP is built for large-scale deployments.
Key Features and Specifications:
- WiFi Standard: WiFi 7
- Spatial Streams: 8
- Max. Data Rate (Combined): Up to 8.6 Gbps (5 GHz) + 5.8 Gbps (6 GHz) + 688 Mbps (2.4 GHz)
- Uplink Interface: (1) 10 GbE RJ45 Port
- Power Method: PoE++
- Max. Power Consumption: 29W
- Coverage Area: 160 m² (1,750 ft²)
- Max. Client Count: 500+
- Special Radio: Dedicated spectral scanning for Real-Time Spectral Analysis
- MIMO (6 / 5 / 2.4 GHz): 2x2 / 4x4 / 2x2 (DL/UL MU-MIMO)
- Advanced Features: Zero-Wait DFS, Wireless Meshing, Band Steering, Fast Roaming (802.11r), Captive Hotspot Portal, RadSec
- Operating Temperature: -30 to 40˚ C (−22 to 104˚ F)
- Dimensions: Ø215 x 32.5 mm (Ø8.5 x 1.3")
- Compliance: NDAA Compliant, CE, FCC, IC
