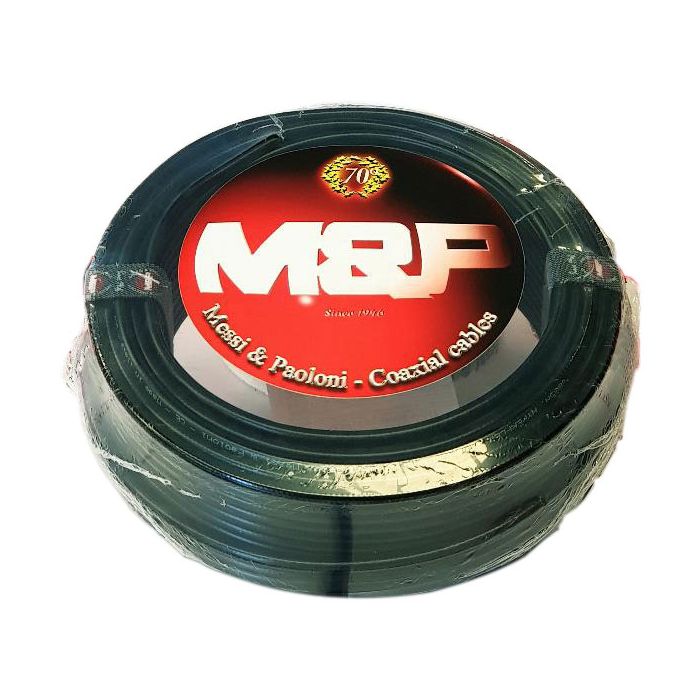

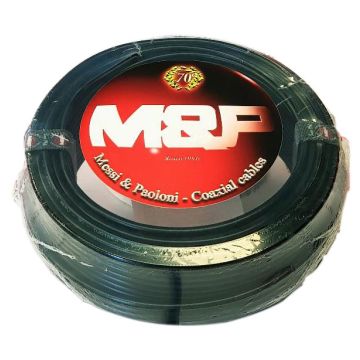

UltraFlex 10, PL-259s, 150 ft

UltraFlex 10, PL-259s, 150 ft has a high-resistance copper screen made by means of a 24-spool braiding machine, generating 50% more crossovers compared to traditional 16 spool machines. This braid is highly effective against low frequency impulsive noises. It also has a high pressure physical injection foam polyethylene triple layer dielectric. The screening foil is highly effective against high-frequency interferences and also has an applied PE-coating placed in order to prevent foil cracking due to short radius bends, with a screening potential of 100%. It also has a high pressure physical injection foam polyethylene triple layer dielectric. The inner conductor is made of seven 1.0mm stranded geometric and concentric annealed 99.99% pure copper wires. This Extra Flexible coax also has a UV-resistant PVC jacket.

Click HERE for the full data spec sheet

Click HERE for M&P vs LMR® and ABR Coaxial Information
