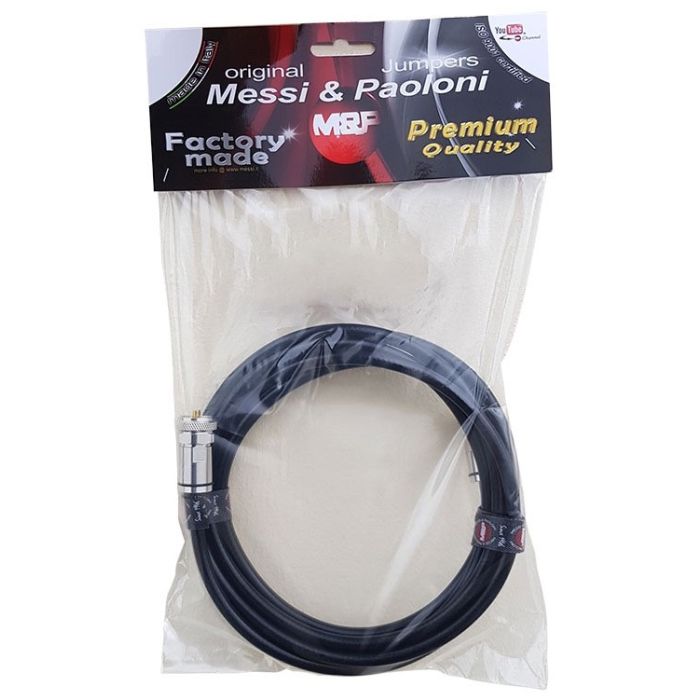

UltraFlex 7, N-Male, 1.5ft

UltraFlex 7, N-Male, 1.5ft has a high-resistance copper screen made by means of a 24-spool braiding machine, generating 50% more crossovers compared to traditional 16 spool machines. This braid is highly effective against impulsive noises, with a screening potential of 83%. It also has a high pressure physical injection foam polyethylene triple layer dielectric. The inner conductor is made of nineteen .38mm geometric and concentric annealed 99.99% pure copper wires. The copper foil has an applied PE-coating, placed in order to prevent foil cracking due to short-radius bends, with a screening potential of 100%. The outer PVC jacket is UV resistant.

Click HERE for the full data spec sheet

Click HERE for M&P vs LMR® and ABR Coaxial Information
