Used Hytera MD782G SN14910A2077

$499.00
Used Hytera MD782G SN14910A2077 SKU: ZUS-1474

$499.00

Free Shipping!

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

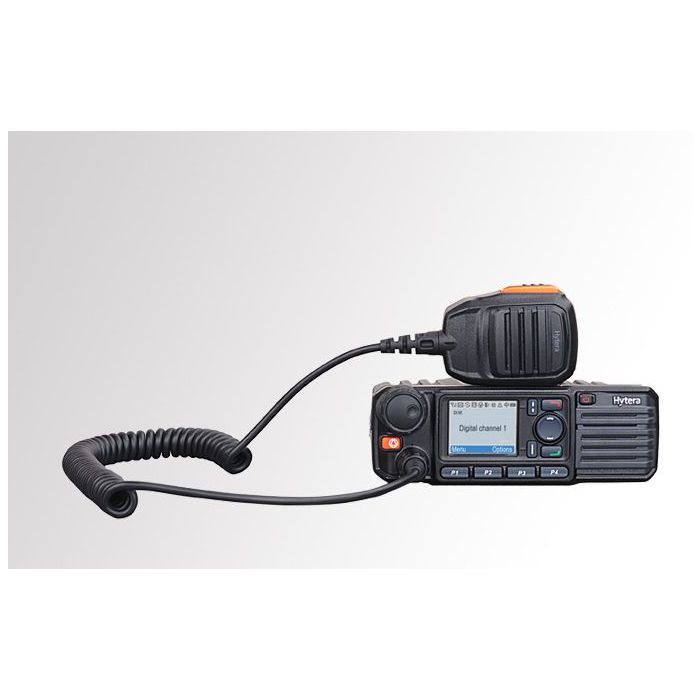

Comments: Hytera MD782G-U1, Palm Microphone, Microphone Hanger and Screws, Mounting Bracket, Power Cord, Fuse, GPS Antenna

Hytera MD782G-U1 DMR MOBILE GPS UHF 400-470 MHz 1024CH 45W

The MD782G DMR mobile radio offers versatile digital functions that allow you to exchange information in all types of situations. With their ergonomic design, easy-to-operate user interface and remarkable quality, they are the ideal solution for your communication requirements; regardless of whether you are aiming to optimize the efficiency of your company or be able to respond to emergency situations at all times.

FAQ:

Q. Where can I download programming software?

A. Programming software can be downloaded at www.gigaparts.com/downloads

Wide Band Modification cannot be performed by the end user. For wideband you will need to add the Hytera Wide FM Modification to your cart.

https://www.gigaparts.com/hytera-wide-fm-modification.html

Hytera MD782G-U1 DMR MOBILE GPS UHF 400-470 MHz 1024CH 45W

Excellent voice transmission
Thanks to the simultaneous application of narrow band codecs and digital error correction, the MA782G offers you outstanding audio quality in loud environments and in boundary regions of the radio coverage.

Dual mode
The MD782G features an analog as well as a digital mode and is compatible with the currently used analog systems, thereby simplifying your transition into the digital age.

Improved use of the radio spectrum
Thanks to the TDMA process, the MD782G enables you to assign the available bandwidth with double channel capacity. This has a clear mitigating effect on increasing spectrum scarcity.

Reliability and quality
The MA782G complies with the standards MIL-STD-810 C/D/E/F/G and meets the IP54 degree of protection. A high degree of reliability is assured even in harsh environments.

Versatile functionality
Besides the traditional communication functions, the MD782G features numerous digital and optional functions, including text messages, GPS location determination and a lone worker function.

Expansion interface
Thanks to the expansion interface, the range of functions offered by the MD782G can be expanded to include key functions. Accessories and applications developed by partners can be connected to this interface.

Intuitive interface and key guidance
The high-resolution LCD screen offers a clear display, even under difficult light conditions. The large keyboard and ergonomic programmable keys facilitate efficient and productive communication.

Upgradeable software
Upgradeable software makes the use of new features possible. By altering the firmware-software, other digital and analog operating modes can be enabled, without the need for purchasing a new radio device.

Frequency range UHF: 400 - 470 MHz
Supported operation modes
  • DMR Tier II (DMR conventional), Simulcast
  • DMR Tier III (DMR trunking)
  • Analog, MPT 1327
DMR Tier II in reference to ETSI TS 102 361-1/2/3
DMR Tier III in reference to ETSI TS 102 361-1/2/3/4
Channel capacity 1024
Zone Capacity 64 (with max. 16 channels each)
Channel spacing (analog) 12.5 / 20 / 25 kHz
Channel spacing (digital) 12.5 kHz
Operating voltage 13.6 ±15 % VDC
Max. power consumption (in stand by) ≤ 0.6 A
Max. power consumption (during reception) ≤ 2.0 A
Max. power consumption (during transmission) 5 W: ≤ 5 A
25 W: ≤ 8 A
45 W / 50 W: ≤ 12 A
Frequency stability ±1.5 ppm
Antenna impedance 50 Ω
Dimensions (H × W × D) 174 x 60 x 200 mm
Weight 1.7 kg
LCD display 220 x 176 pixels, 262,000 colours, 2.0 inches, 4 lines

Transmitter
Transmitting power UHF: 5 – 45 W (Adjustable)
5 – 25 W* (Adjustable)
Modulation 11K0F3E at 12.5 kHz
14K0F3E at 20 kHz
16K0F3E at 25 kHz

4FSK digital modulation 12.5 kHz (data only): 7K60FXD
12.5 kHz (data and voice): 7K60FXW
Interfering signals and harmonics -36 dBm < 1 GHz
-30 dBm > 1 GHz
Modulation limiting ±2.5 kHz at 12.5 kHz
±4.0 kHz at 20 kHz
±5.0 kHz at 25 kHz
Noise suppression 40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz
Adjacent channel selectivity 60 dB at 12.5 kHz
70 dB at 20/25 kHz
Audio sensitivity +1 to -3 dB
Nominal audio distortion ≤ 3%
Digital vocoder type AMBE++

Receiver
Sensitivity (analog) 0.3 μV (12 dB SINAD)
0.22 μV (Typical) (12 dB SINAD)
0.4 μV (20 dB SINAD)
Sensitivity (digital) 0.3 μV / BER 5%
Adjacent channel selectivity
TIA-603
ETSI
65 dB at 12.5 kHz / 75 dB at 20 and 25 kHz
60 dB at 12.5 kHz / 70 dB at 20 and 25 kHz
Intermodulation
TIA-603
ETSI
75 dB at 12.5/20/25 kHz
70 dB at 12.5/20/25 kHz
Spurious response rejection
TIA-603
ETSI
75 dB at 12.5/20/25 kHz
75 dB at 12.5/20/25 kHz
Hum and noise 40 dB at 12.5 kHz
43 dB at 20 kHz
45 dB at 25 kHz
Nominal audio power output Internally, 3 W at 20 Ω
Externally, 7.5 W at 8 Ω
Nominal audio distortion ≤ 3 %
Audio sensitivity +1 to -3 dB
Conducted spurious emission -57 dBm

Ambient data
Operating temperature range -30 °C to +60 °C
Storage temperature range -40 °C to +85 °C
Protection against dust and moisture IP54
Shock and vibration resistance MIL-STD-810 C/D/E/F/G
Relative humidity MIL-STD-810 C/D/E/F/G

GPS (MD785G only)
Time to first fix (TTFF) cold start < 1 minute
Time to first fix (TTFF) warm start < 10 seconds
Horizontal accuracy < 10 meters
