Used Icom ID-5100A Deluxe SN05007740

$469.00
Used Icom ID-5100A Deluxe SN05007740 SKU: ZUS-1767

$469.00

Free Shipping!

Sold Out!

Check Store Stock

Huntsville Store:

Las Vegas:

Comments: Used Very Good ID5100A Deluxe SN 05007740. UPC label is intact. However, it has sharpee markings at the end of each barcode.

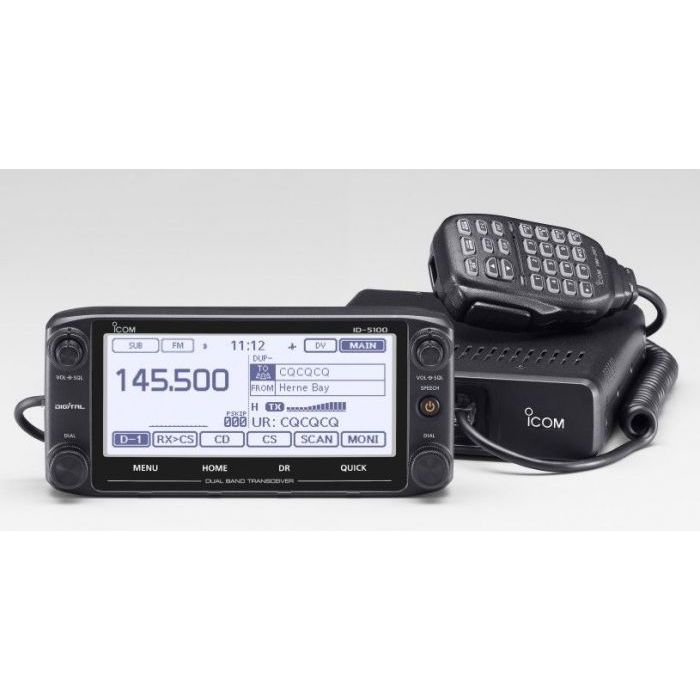

Icom ID-5100A Deluxe VHF/UHF Dual Band D-STAR Transceiver (includes the MBA-2 Remote Head Mounting Bracket)

Innovative 2m/70cm Mobile with Touch Screen

Designed from user input, the ID-5100 offers an intuitive user interface experience with an industry leading touch screen display. Additionally, the ID-5100 interfaces with Android™ devices and Bluetooth® headsets via the optional Bluetooth® module. The ID-5100A is one of the most advanced dualband mobiles on the market today!

Output Power:  50W, 15W, 5W (Hi, Mid, Low)
RX Frequencies: 118-174, 375-550MHz
Memory Channels: 1,000 regular channels, 4 call channels, 50 program scan edges and 1200 repeater memories

Touch Screen Operation

The intuitive touch screen interface provides quick and smooth operation for setting and editing various functions and memories. The 5.5 inch display (320 × 128 pixel) shows a large easy-to-see software keypad, and allows you to input alphanumeric characters quickly. The display responds naturally to the touch allowing you to change settings, enter frequencies and easily edit memory channels.

DV/DV Dualwatch

The ID-5100A has simultaneous receive for FM/FM and FM/DV modes, and the capability of monitoring two DV signals. The main band audio has priority, if two DV signals come in at the same time.

Built-in GPS

The ID-5100A has integrated GPS, which allows you to transmit and receive position data from the built-in GPS receiver. Position, course, speed and altitude are shown on the display. Use the GPS position information for exchanging position reports, tracing the GPS log and searching for nearby repeater sites. The GPS antenna is located in the remote head, no external GPS antenna required.

Bluetooth® and Android™ App Available

Install the UT-133 Bluetooth® board and download the RS-MS1A (Android™ app) to enable you to wirelessly connect to the ID-5100A and remotely set the DR functions, link with a map application, and send/receive messages over the DV mode.

Additional Features

  • DV/FM repeater list function assists you in accessing nearby repeaters, even in areas you visit for the first time.
  • Dplus reflector linking commands are added to the DR function to allow easy reflector operation.
  • SD card slot for voice and data storage
  • DV fast data mode allows users to use data in place of voice frames to transfer data 3.5 times faster than in the conventional DV mode.
General
Frequency coverage
TX
RX
144–148MHz, 430–450MHz
118–174MHz, 375–550MHz
Type of emission F2D, F3E, F7W
Mode FM, FM-N, DV, AM (receive only) depending on version
No. of memory channels 1,000 regular channels, 4 call channels, 50 program scan edges and 1200 repeater memories
Operating temperature range –10˚C to +60˚C; +14˚F to +140˚F
Frequency stability ±2.5ppm (–10˚C to +60˚C on the basis of 25˚C)
Digital transmission speed 4.8kbps
Voice coding speed 2.4kbps
Power supply requirement 13.8V DC ±15%

Current drain (at 13.8V DC)

Transmit

Receive



Max power 13.0A
Stand-by 1.2A
Max. audio 1.8A
Antenna impedance 50Ω (SO-239)

Dimensions (W × H × D)

Main unit

Controller



150×40×172.6 mm; 5.91×1.57×6.8 in

182.2×81.5×24.7 mm; 7.17×3.21×0.97 in

Weight

Main unit

Controller


1300g; 2.87 lb

260g; 9.17 oz

Transmitter

Output power

High/Mid/Low



50W, 15W, 5W* selectable

Max. frequency deviation ±5.0kHz / ±2.5kHz (wide/narrow)
Spurious emissions Less than –60dB
Microphone impedance 600Ω (8-pin modular jack)
Receiver
Intermediate frequencies

A band

B band



38.85MHz/450kHz (1st/2nd)

46.35MHz/450kHz (1st/2nd)

Sensitivity

FM (12dB SINAD)

DV (1% BER )



Less than 0.18μV

Less than 0.28μV

Squelch sensitivity

Less than 0.13μV at threshold

Selectivity

FM Wide

FM Narrow

DV



More than 60dB

More than 55dB

More than 50dB

Spurious and image rejection

A band VHF/UHF

B band VHF/UHF



More than 60/55dB

More than 60/60dB

Audio output (at 13.8V DC)

More than 2.0W

at 10% distortion with an 8Ω load

Ext. speaker connectors 2-conductor 3.5 (d) mm (1⁄8")/8Ω
Receiver sensitivity
FM/FM Narrow (12dB SINAD)

137–159.995MHz

160–174.000MHz

375–399.995MHz

400–499.995MHz

500–550.000MHz

AM (10dB S/N

118–136.996166MHz Less than 1μV

(* Except amateur bands)





Less than 0.32μV

Less than 0.56μV

Less than 0.56μV

Less than 0.32μV

Less than 0.32μV



Less than 0.56μV
