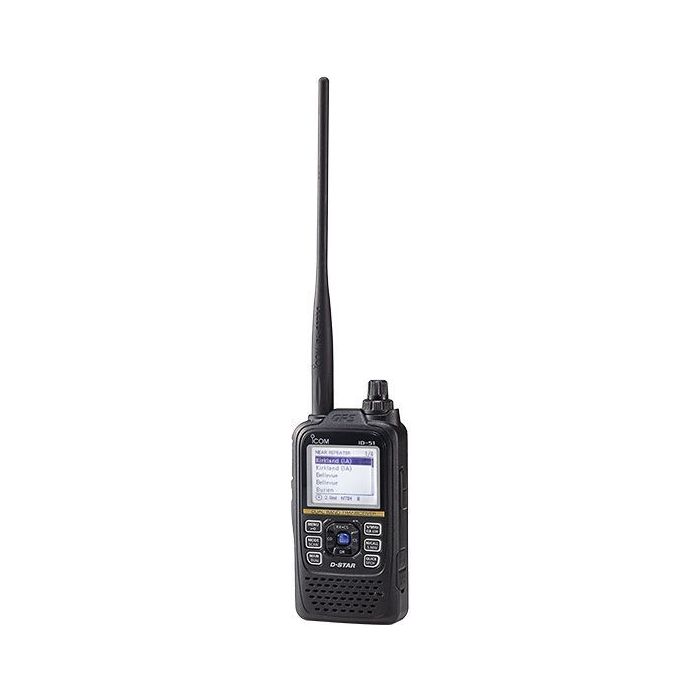

Used Icom ID-51A P2 BLK SN81002796

Name: Used Icom ID-51A P2 BLK SN81002796
Brand: Icom
SKU: ZUS-1918
Price: 315 USD
Availability: OutOfStock

SKU: ZUS-1918

Availability:

Out of stock

No Longer Available

Description

General

Frequency coverage (MHz)

Version	Transmit	Receiver (Working Range	Broadcast
ID-51A	144–148, 430–450^*1	A Band: 137–174, 380–479 B Band: 108–174^*2, 380–479	0.52–1.710, 88–108

^*1 Guaranteed Range: 144-148, 440-450MHz
^*2 AM mode only for 108–136.995MHz

Type of emission

F2D, F3E, F7W

No. of memory channels

1304 channels (including repeater, program scan edges and call channels)

Operating Temperature Range

–20˚C to +60˚C

Frequency stability

±2.5ppm (on the basis of 25˚C)

Power supply requirement
Alkaline cells
External DC Power

7.4V DC (with BP-271, BP-272)
5.5V (with BP-273)
10–16V DC

Current drain (at 7.4V DC)
Tx High
Rx Internal SP (16Ω)
External SP (8Ω)

Less than 2.5A
Less than 450mA/350mA (DV/FM)
Less than 300mA/200mA (DV/FM)

Antenna impedance

50Ω (SMA)

Dimensions (W×H×D)
(projections not included)

58×105.4×26.4 mm
2.28×4.15×1.04 in

Weight (approx.)

255g (with BP-271 & antenna)

Transmitter
Modulation system DV, FM	GMSK reactance modulation, FM reactance modulation
Output power (at 7.4V DC)	5W, 2.5W, 1.0W, 0.5W, 0.1W (High, Mid, Low2, Low1, S-low)
Spurious emissions	Less than –60dBc (High, Mid), Less than –13dBm (Low2, Low1, S-low)
Max. frequency deviation	±5.0/2.5kHz (FM/FM-N)
Ext. Mic impedance	2.2kΩ

Receiver
Sensivity DV FM, FM-N	Less than 0.28μV (at 1% BER) Less than 0.18μV (at 12dB SINAD)
Selectivity DV, FM-N FM	More than 50dB More than 55dB
Spurious rejection	More than 60dB
Audio output power Internal SP (16Ω load) External SP (8Ω load)	(at 7.4V DC, 10% distortion) More than 400mW More than 200mW

Applicable IP Rating

Ingress protection standard
Water	IPX7 (Waterproof protection)
