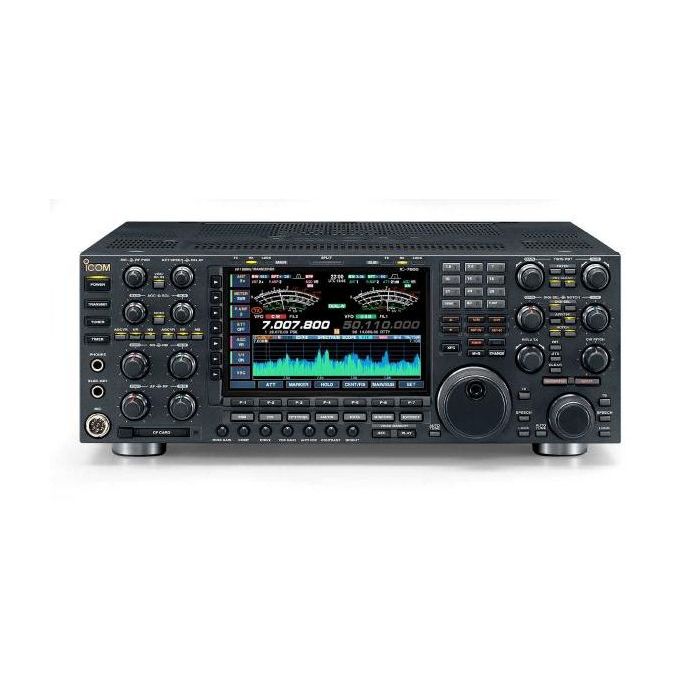

Used Very Good Icom IC-7800 HF/50MHz Transceiver S/N: 0201550
Radio tested on all four antennas ports and confirmed full power output. Tested all functions and confirmed all good, only minor issue is the CONTRAST / BRIGHT knobs on the bottom when depressed do not pop out like the others but do work as expected, just get stuck.
Original box is intact and has signs of age which is fully expected. Internal box is in great shape....latest firmware has been loaded.
Included: Original Box / Radio / Power Cable (110v) / Owners Manual
General
Frequency Coverage
1.800– 1.999 MHz
3.500– 3.999 MHz
5.3305, 5.3465, 5.3665, 5.3715, 5.4035 MHz*3
7.000– 7.300 MHz
10.100–10.150 MHz
14.000– 14.350 MHz
18.068–18.168 MHz
21.000– 21.450 MHz
24.890–24.499 MHz
28.000– 29.700 MHz
50.000–54.000 MHz
Mode
USB, LSB, CW, RTTY, PSK31, AM, FM
Number of channels: 101 (99 regular, 2 scan edges)
Antenna impedance: 50Ω unbalanced (Tuner off)
Antenna connector: SO-239×4 and BNC×2
Power supply requirement: 85–265V AC
Temperature range: 0°C to +50°C; +32°F to +122°F
Frequency stability: Less than ±0.05ppm / (0°C to +50°C, after warm up)
Frequency resolution: 1Hz (minimum)
Power consumption: Tx Max. power: 800VA / Rx Stand-by: 200VA (typ.) / Max. audio: 210VA (typ.)
Dimensions: 424(W) × 149(H) × 435(D) mm; 1611⁄16(W) × 57⁄8(H) × 171⁄8(D) in
Weight: 25kg; 55lb
Transmitter
Output power:
SSB, CW, RTTY, PSK31, FM - 5–200W
AM - 5–50W
137 kHz, CW* - More than –20dBm
Receiver
Receive system: Double conversion super-heterodyne system
Intermediate frequencies
1st 64.455 MHz (Main receiver)
2nd 64.555 MHz (Sub receiver)
36 kHz
The LCD display may have cosmetic imperfections that appear as small or dark spots. This is not a malfunction or defect, but a normal characteristic of LCD displays.
