Used Very Good Icom IC-9700 Bundle Package SN112358. Bundle Package includes the ICOM IC-9700 / SP-38 Speaker / SM-30 Desktop Microphone and WCS-9700 Software. Radio tested and is in prestne condition, lightly used. All included items look "like new".
- IC-9700 - S/N12002337

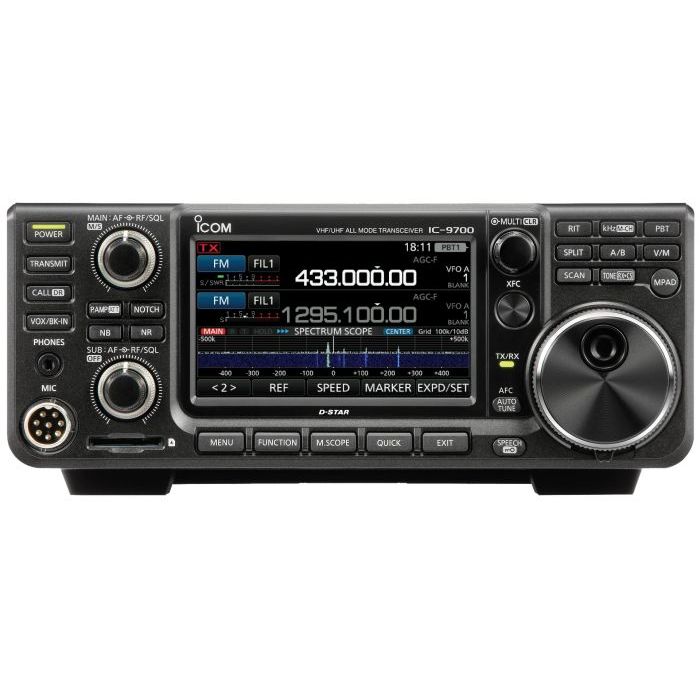

Icom IC-9700 VHF/UHF/1.2GHz All Mode D-STAR Transceiver
High-Speed Real-Time Spectrum Scope, Waterfall Display, and Built-in 1200 MHz! This Supreme VHF/UHF Transceiver Provides a Brand New Experience!
Built with the VHF/UHF weak signal operator in mind, the IC-9700 is an RF direct sampling receiver for 2m and 70cm. The IF receiver consists of a single, down conversion for 23cm that is between 311 – 371MHz. This design provides a quiet receiver due to Icom’s DSP technology. The robust PA provides 100W on 2m, 75W on 70cm, and 10W on 23cm.
Band Management
In addition to band specific memory channels, the IC-9700 allows band specific receiver and transmitter settings. For transmit, users can make adjustments to RF power, TX power Limit, Limit Power, and TX Delay by band. Basic receiver settings, like the Noise Blanker, Noise Reduction, and others can be tweaked by band with a dynamic Notch and Filter setup by band/mode.
Direct Sampling Now Enters the VHF/UHF Arena
- All mode, tri-band transceiver covering the 144, 430/440 as well as 1200 MHz
- Real-time, high-speed spectrum scope for the 144, 430/440, 1200 MHz bands
- New PA provides a powerful 100W (144 Mhz), 75W (430/440 MHz) and 10W (1200 MHz) output
- Dualwatch operation and full-duplex operation in the satellite mode
- Follows Icom's center display design style with a 4.3 inch touch screen color TFT LCD
- D-STAR provides digital clear audio and Internet capable communication
- Smooth satellite operation with normal/reverse tracking and 99 satellite channels
- Digital Data (DD) mode provides 128 kbps data communication
- SP-38 - S/N18100746
SP-38 External Speaker. This high quality external speaker is perfect for the IC-7300 or IC-9700!
Specifications:
• Rated input power 5W
• Maximum input power 7W
• Impedance 8Ω
• Weight 2.54lb (approx)
• Audio cable length 5.9ft (approx)
- SM-30 - S/N0003181
ICOM SM-30 Desktop Microphone for Amateur Radio HF base stations
The SM-30 is a goose-neck style desktop microphone that can be paired with all of Icom’s current HF base station radios from the IC-718 to the IC-7800. It features an 8-pin metal connector; PTT / PTT lock switches and a low-cut filter. The microphone also has an adjustable output level and voice characteristics have been especially designed for SSB and FM.
- WCS-9700 -
RT Systems WCS-9700 Programming software with rt-42 cable makes it easy to manage memory channel information and other menu settings of the Icom IC-9700.
- Spreadsheet layout with many point and click options.
- "Read" the current configuration from the radio for editing or start from scratch in a new file.
- The programmer has copy and paste of memory channel information between files.
- Column editing for changing several channels with minimal typing.
- An easy interface to ARRL Travel Plus, RFinder-Worldwide Repeater Directory, Radio Reference, or Repeater Book to get repeater information. (separate purchase or subscription may be required)
- Ability to copy and paste spreadsheet or website data.
- Much more than just memory channel programming with settings for other radio menu items.
- RT Systems Programming Software for Windows 7 (32 and 64 bit), Windows 8 and 8.1 (full version), or Windows 10
