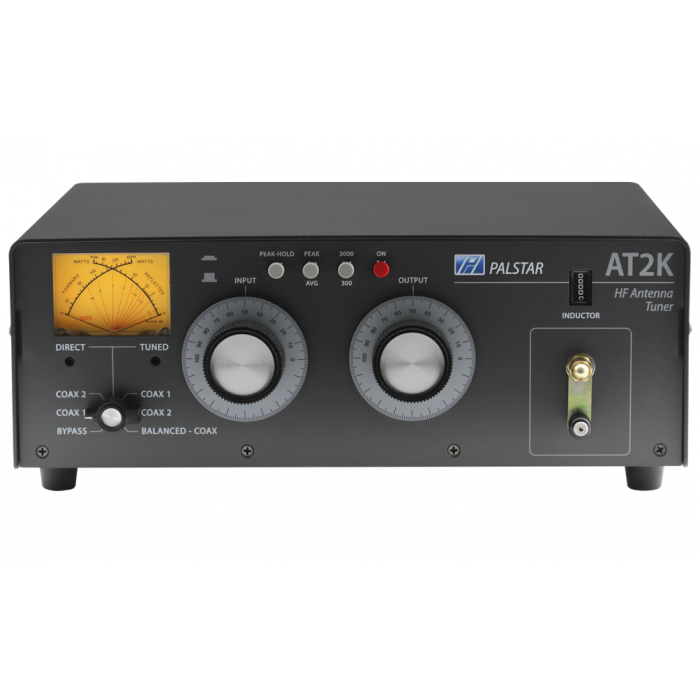

Used Very Good Palstar AT2K 2000w Antenna Tuner S/N: 35125
The new AT2K antenna tuner covers 160 to 6 Meters with a power rating of up to 2000 watts PEP and features a newly-designed, smaller roller inductor allowing the AT2K to tune 6 Meters without the need for the additional red button as on older models. The updated design for the capacitors features lower minimum capacitance for improved high band performance, while maximum capacitance has been increased to 400pF for better low band performance.
The AT2K matches dipoles, center fed doublets, Verticals, end-fed wire, delta loops, beams, Windoms, or Inverted V's. An optional external 4:1 or 1:1 current balun can be added to your order to also match balanced wire antennas.
Featuring a 6 position antenna selector switch, the AT2K offers forward power metering in two ranges, 300 and 3000 watts.
Also included is Pastar's Active Peak and Peak Hold dual cross-needle metering from the popular PM2000A wattmeter. Standing Wave Ratio measurements are displayed with an illuminated cross-needle meter. SWR is read directly from the meter face where the Forward and Reverse needles cross.
Specifications
Output Power: 2000 Watts PEP
HF Bands: 160m to 6m (assuming resistive load)
Tuning: Three controls
Antenna switching: 6 position mode switch for multiple antennas
Capacitor: Low minimum custom variable capacitor; 15pF - 400pF@4.5 kV
Roller inductor: Silver-plated inductor wheel shaft and contact wheel on ceramic body
Impedance: Matching range 20 Ohms to 1500 Ohms
Metering: Active crossneedle Peak/Peak Hold with backlighting
Meter power range: 0-300 Watts/0-3000 Watts
Balun: Optional external 1:1 or 4:1 current
Chassis: .090 ga. aluminium iridite coated
Top cover: .090 ga. aluminium powder coated
Front cover: .090 ga. aluminium powder coated
Dimensions: 14.5" wide x 5" high x 13.5" deep
Shipping weight: 14 lbs
