Used Very Good SunSDR2 DX Transceiver S/N: EED06012100302
Tested and works as designed, original box intact

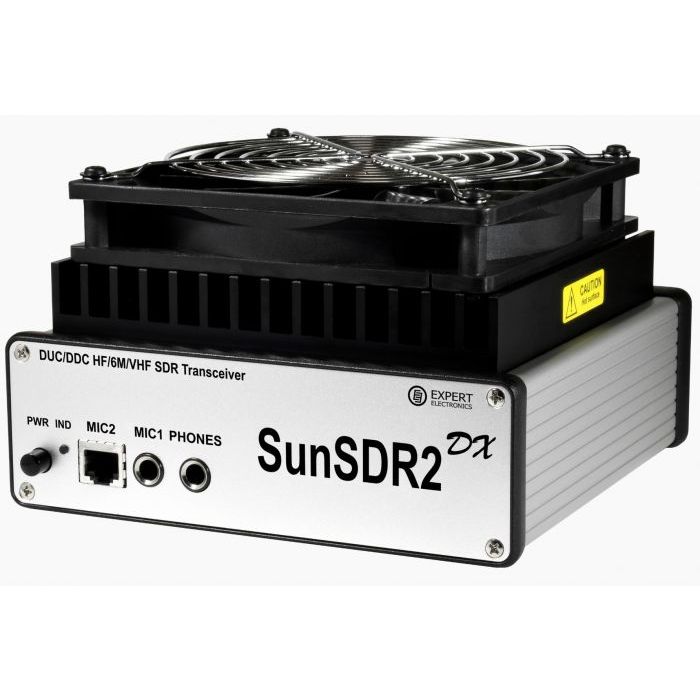

Expert Electronics SunSDR2 DX HF 100W, 6M 80W, VHF 8W Transceiver with Direct Digitization and Direct Signal Synthesis
The SunSDR2 DX transceiver based on the well-known SunSDR2 PRO transceiver with several hardware improvements. It is a 100W-HF; 80W-6M; 8W-2M transceiver, very compact, has active cooling and improved supply system, meaning it’s perfectly suited for DXpeditions. Also, we've added a separate connector for an external ATU, thus SunSDR2 DX has all the functionality you got used to in our radios and even more. Improved hardware along with the ExpertSDR2 software makes this high-performance SDR transceiver the perfect base station. The evident choice for a true contester! Buy your Expert Electronics SunSDR2 DX transceiver from GigaParts today!
SunSDR2 DX offers Hardware Improvements over older Pro Model
Improved Supply System, which leads to less heating and less power consumption
HPF for VHF (100 MHz) to eliminate strong out-of-band stations coming from HF
LPF for HF (70 MHz) to eliminate strong out-of-band stations coming from VHF
New VHF LNA chip - PGA103+
New high-performance built-in stereo audio codec 24 bit with 114 dB dynamic range
Sturdy DIP-type ExtCtrl connector
New connectors: external tuner control, GND
Improved PCB topology
The ExpertSDR2 DX minimal system requirements:
2 or 4 core CPU Intel Core i3 or Core i5;
8 GB RAM;
40 GB free space on the HDD/SSD for the ExpertSDR2 and accompanied programs;
17' or bigger monitor;
video card with OpenGL 1.5 or higher;
The ExpertSDR2 software supports Windows 7-10 32/64 bit, Linux (Ubuntu/Kubuntu 18.04 x64), and macOS 10.14 Mojave and higher.
