Used Very Good SunSDR2 PRO Transceiver S/N: EED05052100835

Used Very Good SunSDR2 PRO Transceiver S/N: EED05052100835

Tested and works as designed

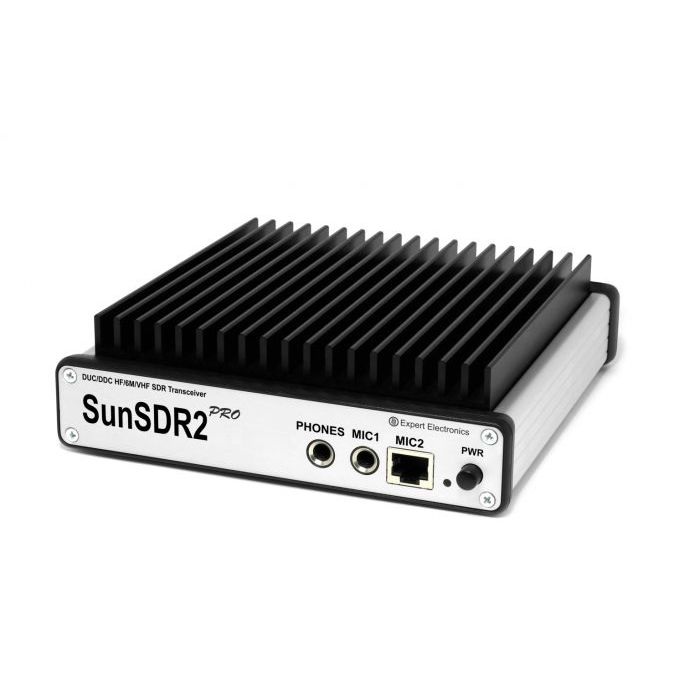

Expert Electronics SunSDR2 PRO Transceiver

The SunSDR2 PRO transceiver was designed for advanced operation on HF and VHF bands, even the most demanding operator will be surprised by its capabilities. Modern hardware along with the ExpertSDR2 software makes this high-performance SDR transceiver the perfect base station and at the same time perfectly suitable for field operations.

Main capabilities

• Independent RX path based on DDC (Direct Down-Conversion) architecture
• Independent TX path based on DUC (Direct Up-Conversion) architecture
• 2 software RXs + SubRX for each of them (4 slices total) + independent wideband Bandscope up to 80 MHz
• Remote control operation, using it, you connect PTT and CW-key to the E-Coder panel. Microphone and E-Coder are connected to the remotely set up PC
• TCI interface for seamless connection with third-party software, the list of software with TCI support
• Professional TX processing module provides the most advanced tuning capability for voice operation
• ExtCTRL connector to control external devices with 8 powerful keys with open collector
• ALC connector for external power amplifiers*
• Supports use of VHF transverters**
• An opportunity to use the transceiver as a signal generator via DAC OUT connector (SMA connector)
• An opportunity to use external filters in the middle of the RF path, using ADC IN and RX OUT (SMA connector)
• Small delay in CW mode (about 10 ms)
• Input for external 10 MHz reference oscillator
• An opportunity to use the transceiver in SO2V mode
• Full duplex or half duplex modes***
• Antenna switch with 2 HF antenna connectors and separate VHF antenna connector (Mini UHF connectors)
• Internal power-meter for HF and VHF bands and SWR-meter for HF band
• Ethernet LAN interface provides fast and reliable connection to PC

* ** *** These functions are supported by the transceiver's hardware, but is not implemented in the ExpertSDR2 software. They will be supported in the future ExpertSDR2 software releases.

The ExpertSDR2 minimal system requirements:

2 or 4 core CPU Intel Core i3 or Core i5
8 GB RAM
40 GB free space on the HDD/SSD for the ExpertSDR2
17' or bigger monitor
Video card with OpenGL 1.5 or higher
The ExpertSDR2 software supports Windows 7-10 32/64 bit, Linux (Ubuntu/Kubuntu 18.04 x64), and macOS 10.14 Mojave and higher.
