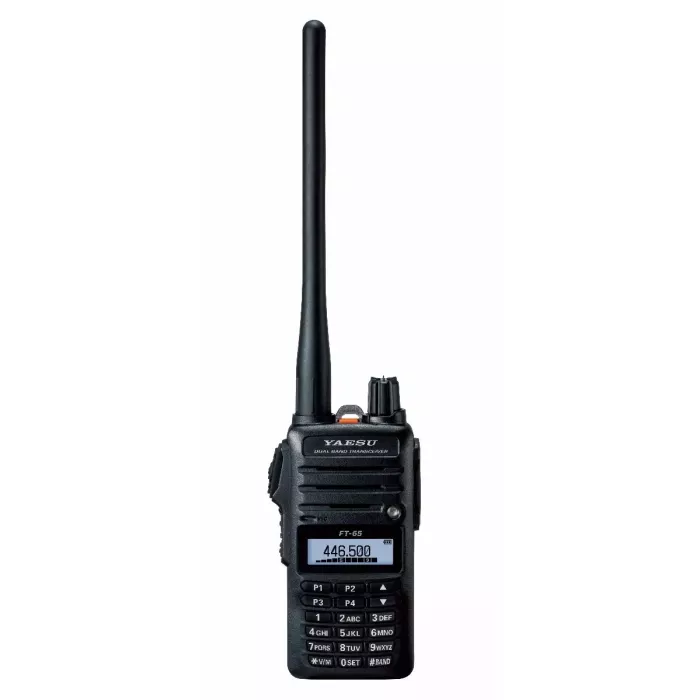

VHF/UHF Commercial Grade Dual Band Handheld Transceiver
- Compact Design, Measuring W 2.1” x H 4.1” x D 1.2” (52.5 x 104.5 x 31 mm)
- Rugged Construction; Meets IP54 Rating (Dust/Water protection) , MIL-810-C,D and E
- One Watt Powerful Audio Output and Clear Audio from the Big Front Speaker
- 5 Watts of Reliable RF Power within a Compact body
- Three Selectable TX Power settings (5 W (High)/2.5 W (Middle)/0.5 W (Low))
- Over 9 hours Operating time with Supplied 1,950 mAh Li-Ion Battery pack *1
- Optional High-capacity 2,500 mAh Li-Ion Battery Pack (SBR-26LI) provides over 11.5 hours of Extended Operating Time *1
- 2.5-Hour Rapid Charger (SBH-22) Included (Using SBR-25LI)
- QRK (Quick Recall Key) : Four User Programmable Keys for Quick Access to Favorite Functions
- Large White LED Flashlight, Alarm and Quick Home Channel Access for Emergency Signaling
- Versatile Scanning Capabilities : Programmed VFO Scan, Memory Scan, Priority Channel Scan, Weather Alert Scan
- WX Channels with "Severe Weather" Alert (US Version)
- VOX Operation with Optional VOX Earpiece Microphone (SSM-512B)
- PC Programmable with Optional Programming Cable (SCU-35)
- Transceiver-to-Transceiver Cloning with Optional Cloning Cable (SCU-36)
- FM Broadcast Receiver Equipped
- ARTS (Automatic Range Transponder System)
- DTMF Operation
- CTCSS/DCS Operation
- Busy Channel Lock-Out (BCLO)
- Battery Saver Function
- Automatic Power-Off (APO) Feature
- Transmitter Time-Out-Timer (TOT)
*1 (Tx) 6 sec. : (Rx)6sec. : (Standby) 48 sec Duty Cycle
RX Frequency Ranges:
- 65 - 108 MHz
- 136 - 174 MHz
- 400 - 480 MHz
TX Frequency Ranges:
- 144 - 148 MHz
- 430 - 450 MHz
Circuit Type: Direct-Conversion
Modulation Type: F2D, F3E
RF Power Output: 5 W/2.5 W/0.5 W
AF Audio Output: 1 W (Max power)
Case Size (W x H x D): 2.1” x 4.1” x 1.2” (52.5 x 104.5 x 31 mm) w/o Knob
Weight (Approx.): 9.17 Oz (260 g) with SBR-25LI and Antenna
Antenna Connector: Reverse SMA
Warranty: 3 Years
