Used Very Good Yaesu FTM-10R Mobile 2m/70cm Transceiver SN138863
Radio tested and works as designed, was used on a motorcycle but in fantastic shape.

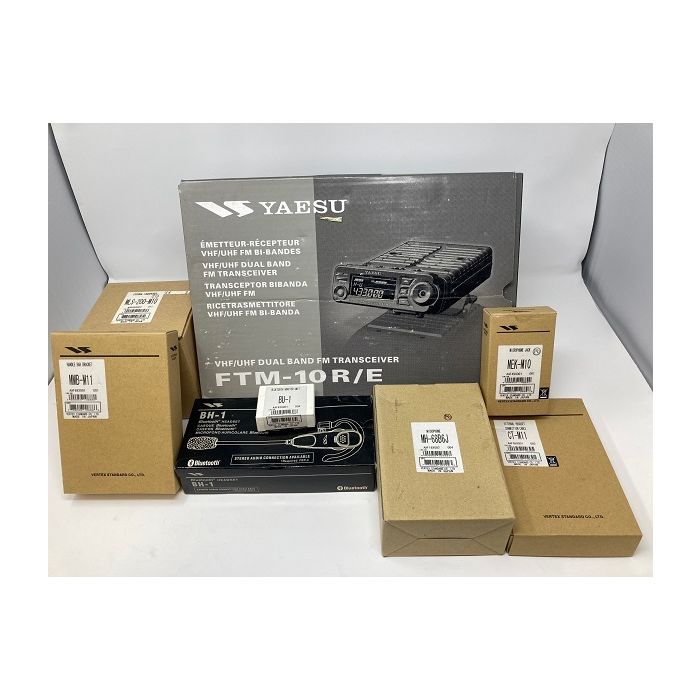

Included: BH-1 BT Headset / CAB-1 Head Set Charger Sleeve / MH-68B6J Microphone / CT-M11 Headset
MMB-M11 Bar Bracket / MEK-M10 Microphone Jack / MLS-200-M10 Loudspeaker / BU-1 Bluetooth Adapter
*All in original Boxes*
Rugged Construction - take the FTM-10R/E where the action is!
The main body of the FTM-10R/E is a solid die-cast aluminum sandwich structure. The high quality die-cast aluminum chassis doubles as the heat sink providing more than enough air-cooled ventilation for the power modules. The sandwich structure also provides far better resistance to vibration and shock than many conventional transceivers and radios. The design shields against ignition noise and alternator whine for mobile operation! *The FTM-10R/E die-cast chassis section is not a waterproof structure
Compact and Light Weight
Size: 4.4”W x 1.5”H x 7.0”D. Weight: 2.9 pounds.
Heavy Duty Yet Easy to Operate...Even with Gloves!
Heavy Duty Yet Easy to Operate -- Large Multi-function dial & durable keys that are easy to operate...even when wearing gloves. A minimum number of key buttons on the front control panel, for safer operation during motor sports activities.
Plenty of RF Reliable Power Output
Plenty of RF Power Output – 50W on 2m / 40W on 70cm. The high power RF output of the FTM-10R/E is produced by the heavy duty, high efficiency, RF POWER MOS FET amplifier. Powerful and reliable 2 m / 70 cm Band operation is guaranteed. *Power Requirement: 13.8 VDC from external source
Industry 1st - Detachable waterproof front panelIndustry 1st - Waterproof/Dustproof* detachable Front Operation Panel to Support All-Weather Outdoor Activity. A high quality 1.1 inch/28 mm speaker is built into the FTM-10R/E detachable front panel; you can operate it like an HT! The microphone and PTT button are built into the front panel. Detach the front panel with one-touch release when transmitting! The detachable front panel may be separated from the main chassis, and attached to a flat metal surface with the magnetic mounting bracket. Incredibly versatile vehicle mounting options. The detachable Front Control can even be mounted on a motorcycle handlebar using the optional MMB-M11 multi-angle bracket. *Meets the IP57 standard. Waterproof at 3ft (1m) for 30 minutes and protection against dust. *The FTM-10R/E die-cast Main Body chassis section is NOT a waterproof structure
Independent AM/FM broadcast receiver
The FTM-10R/E has a completely independent AM/FM broadcast radio receiver, in addition to the amateur band receiver. You will enjoy broadcast band receiver coverage, and high quality operation on the 2 m / 70 cm Amateur Radio bands at the same time.
High power 8-watt PA communications with optional speaker
A high quality 1.1 inch/28 mm speaker is built into the FTM-10R/E detachable front panel; you can operate it like an HT! The FTM-10R/E has a large 2 inch/50 mm, 1.5W speaker in the die-cast Main body chassis. The radio is equipped with a high power 8-watt audio amplifier, and a PA function for noisy outdoor environment operation with the optional, moisture and dust protected MLS-200-M10 external loudspeaker(s). **External audio input is also available to connect your iPod!**
Smart Key on front panel for quick access to most important functions
Smart Key on front panel to access the most frequently used radio functions. The Smart Key features: DIMMER- Adjust brightness of the display. INTERCOM- Turn Intercom function On/Off. MONI- Disables the noise squelch to hear weak signals. PA- Enables/Disables the PA function. SCAN- Scan frequencies or memory channels. SQL LEVEL- Adjust the squelch threshold level. SSCH- Activate Smart Search function. TX POWER- Select the transmitter power level. VOL.ITCOM- Adjust the intercom audio level.
500 Channel Band Group Memory System
Band Group Memory System
The versatile memory system uses up to 500 memory channels. Each memory channel can be labeled with an 8-digit alphanumeric tag. The memory channels may be recalled by a specific operating band, if desired.
* Other Useful Features *
OTHER USEFUL FEATURES
-DC input voltage display
-Tone control
-Band Up/Down key for easy operation
-Simple key lockingAutomatic
-Display brightness control
-Three transmit power levels: 50W (70cm: 40W) / 20W /5W
-Various scanning features
-The Internet Connection Feature can be used to access the Vertex Standard WiRES-II system
