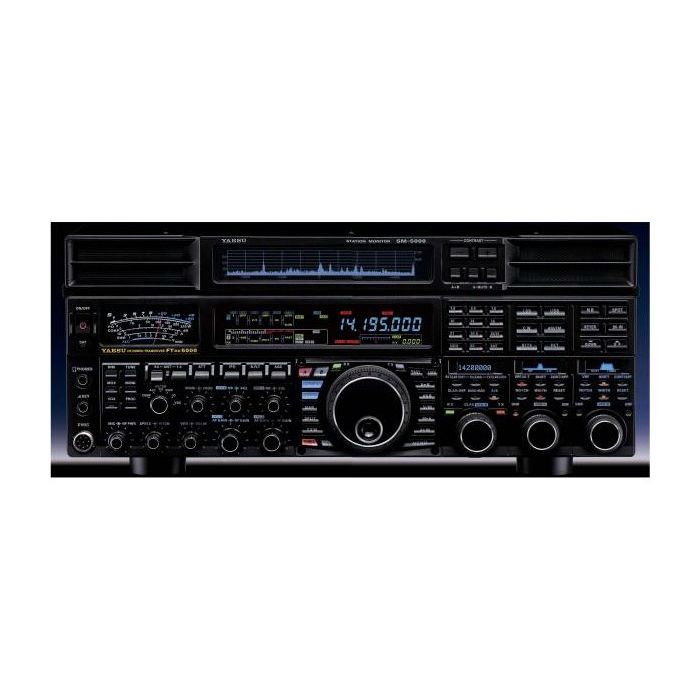

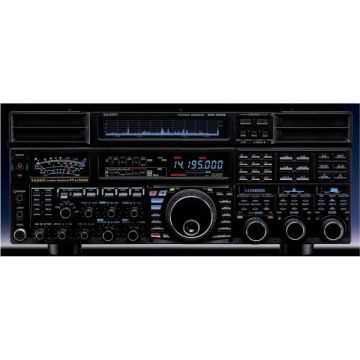

Used Very Good Yaesu FT-DX5000MP with SM5000 S/N1F280043

The FTDX 5000MP robust and high-power Final Amplifier Stage incorporates two super reliable FET, VRF-150 (Drain-Source Voltage 170 V/Gate Source Voltage ±40 V, Total Device Dissipation 300 W) in a push-pull configuration, offers solid 200 W output (75 W Class A operation).

The FT DX 5000MP has its own built-in power supply

All FT DX 5000 Transceivers include Two (2) Totally Independent Receivers to give you Performance and Flexibility previously only provided by much more expensive radios.

SSB (2.4kHz BW)
10 kHz SEP.:106 dB, IP3 +40 dBm


CW (500Hz BW)
10 kHz SEP:112 dB, IP3 +40 dBm
2 kHz SEP. :105 dB, IP3 +36 dBm
1 kHz SEP. : 99 dB, IP3 +25 dBm

*VFO-A/Main Receiver @ 14 MHz, IPO1

Super sharp “Roofing” filters for VFO-A/Main Receiver.
Filters are Selectable between *300 Hz, 600 Hz, 3 kHz (6-pole crystal filter), 6 kHz, 15 kHz (4-pole MCF)

*300 Hz filter was optional for FTDX 5000 and FTDX 5000D. It is included in the FTDX 5000MP

The legendary high performance Yaesu Custom-designed 32-bit Floating Point DSP based on the TI TMS320C6727B (@300 MHz), one EACH for VFO-A and VFO-B.

Variable CW Audio Peak Filter, and High/Low-Cut filtering created through the very latest in DSP technology.

- CW Width: 50/100/150/200/250/300/350/400/450/500 Hz

- CW Pitch Frequency: 300~1050 Hz (10 Hz Steps)

Enjoy the same Huge Size Metering System as the FT DX 9000 series with True Analog Precision and Instant Reaction Time.

Three Electro Luminescence clear Displays included for easier operation and control of the Sub-Frequency, Graphical Wave and Menu function.

IF Output (9 MHz) from VFO-A/Main Receiver

The FTDX 5000MP provides loads of practical Level Indication that clearly show settings of Mic-Gain / RF Power / CW-Pitch / Keyer Speed / Processor Level / VOX Delay Time / Break-In Delay Time.

-They can be controlled ON/OFF independently!

If you need a good Bandscope to enhance your operations, you are going to love our all-new SM-5000 matching station monitor. Included with the Bandscope is a complete, enhanced stereo speaker system with superb audio quality - the speakers are point at you instead of up into the air above the radio!
