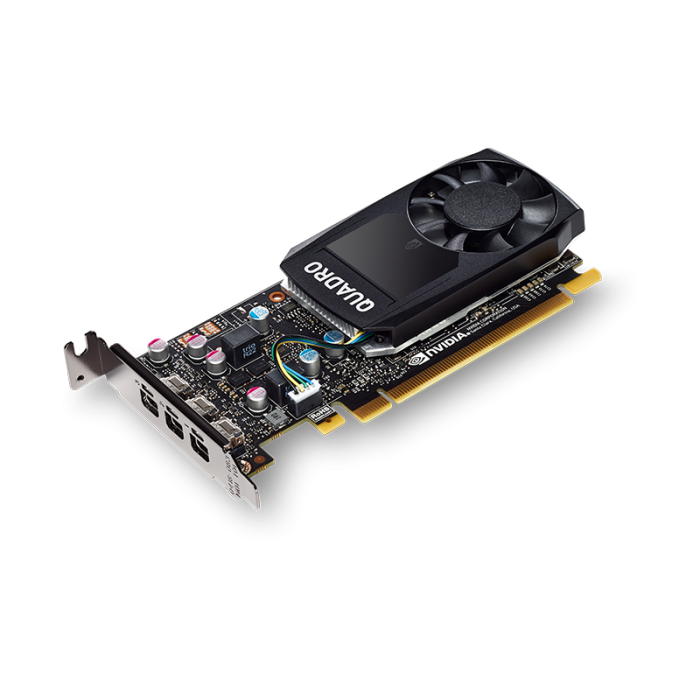

PNY NVIDIA QUADRO P400 2GB GDDR5 PCI-e 3.0
The new NVIDIA Quadro P400 combines the latest Pascal GPU architecture with 2GB of ultra-fast on-board memory to deliver great performance for a range of professional applications. A single-slot, low-profile form factor makes it compatible with even the most space and power-constrained chassis. Support for three 4K displays (4096 x 2160 at 60Hz) with HDR color gives you a wide visual workspace to view your work in extremely high resolution.
Professionals are increasingly looking to lower the total cost of their computing solutions. Today’s modern multi-application workflows require users to evaluate the impact of workstation functionality and performance against cost to ensure that any savings achieved by lower cost computing solutions will not result in schedule impacts and business loss.
With support for DisplayPort 1.4, the P400 can drive resolutions of up to 5K (5120 x 2880) at 60 Hz from a single cable. You can combine up to four Quadro GPUs in one system to simplify the deployment of display walls or other immersive display environments. DisplayPort 1.4 offers HDR color support, enabling brighter displays, more saturated colors and a greater than 10,000 to 1 contrast ratio.
Designers and engineers can create models with larger numbers of assemblies and components, manipulating parts and assemblies with smooth, interactive graphics.
Support for up to three 4K displays provides for an expansive desktop enabling designers to work with multiple apps simultaneously.
Quadro P400 supports display resolution up to 5K.
Media & Entertainment Solutions
Editors can work in real time with HDR content up to 5K full resolution.
Artists working with 2D imagery can realize better performance with assets stored in dedicated high performance graphics memory.
Create and play back ultra-high quality HDR content with H.264/HEVC encode and decode engines.
Combine multiple P400 cards to provide expansive visual workspaces.
Architects can create larger models, viewing 2D and 3D designs and plans, interacting with them in realtime with no lag.
Urban designers can create models with more detail and complexity.
Support for any combination of four connected displays
Four DisplayPort 1.4 outputs supporting resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
DVI-D Dual Link output (up to 2560 x 1600 at 60Hz and 1920 x 1200 at 120Hz), internal 400 MHz DAC DVI-D output (analog display up to 2048 x 1536 at 85Hz)
DisplayPort to VGA, DisplayPort to DVI (single-link and dual-link) and DisplayPort to HDMI adapters optionally available (resolution support based on dongle specifications)
HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60Hz 10b/12b HEVC Decode, 4K at 60Hz 10b HEVC Encode)
HDCP 2.2 support over DisplayPort, DVI and HDMI connectors
12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications and connection)
NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
Full OpenGL quad buffered stereo support
Underscan/overscan compensation and hardware scaling
NVIDIA NVIEW multi-display technology
|Peak Single Precision FP32 Performance||0.641 TFLOPS|
|GPU Memory||2 GB GDDR5|
|Memory Bandwidth||32 GB/s|
|System Interface||PCI Express 3.0 x16|
|Maximum Power Consumption||30 W|
|Energy Star Enabling||Yes|
|Thermal Solution||Ultra-quiet active fansink|
|Form Factor||2.713” H x 5.70” L, Single Slot|
|Display Connectors||mDP 1.4 (3)|
|DisplayPort with Audio||Yes|
|DVI-D Single-Link Connector||Via optional adapters|
|HDMI Support||Via optional adapters|
|VGA Support||Via optional adapters|
|Number of Displays Supported||3 direct, 4 DP multi-stream technology|
|Maximum DP 1.4 Resolution||HDR 5120 x 2880 at 60Hz (30-bit color)|
|5K Display Support||HDR 5120 x 2880 at 60Hz (30-bit color)|
|4K Display Support||HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz|
|Maximum DVI-D DL Resolution||2560 x 1600 at 60Hz via 3rd party adapter|
|Maximum DVI-D SL Resolution||1920 x 1200 at 60Hz via optional adapter|
|Graphics APIs||Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0|
|Compute APIs||CUDA, DirectCompute, OpenCL|
|NVIDIA MOSAIC||Yes (Windows 10, 8.1, 8, 7, and Linux)|
NVIDIA Quadro P400 professional graphics board with attached low-profile (SFF) bracket
Unattached full-height (ATX) bracket
Three mDP to DP adapters
Software installation disc for Windows 10, 8.1, 8, and 7 (64- and 32-bit)
Printed Quick Start Guide
