WCS-D4100 Programming Software and USB-RTS05 data cable for the Icom ID-4100

$48.95
WCS-D4100 Programming Software and USB-RTS05 data cable for the Icom ID-4100 SKU: ZRT-WCS-D4100

$48.95

Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

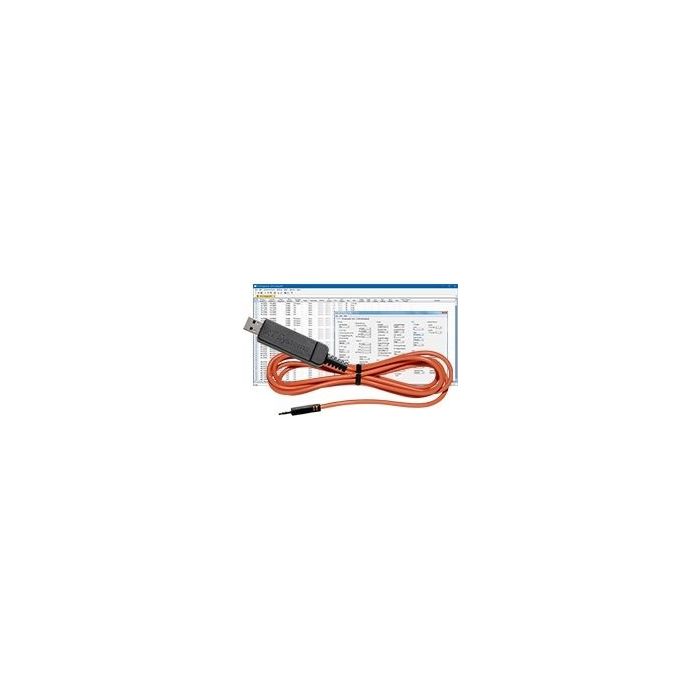

WCS-D4100 Programming Software and USB-RTS05 data cable for the Icom ID-4100

WCS-D4100 Programming Software and USB-RTS05 data cable for the Icom ID-4100

RT Systems WCS-D4100 Programming software makes it easy to manage memory channel information and other menu settings of the Icom ID-4100. Click here for more Information.

Spreadsheet layout with many point and click options.

"Read" the current configuration from the radio for editing or start from scratch in a new file.

The programmer has copy and paste of memory channel information between files.

Column editing for changing several channels with minimal typing.

An easy interface to ARRL Travel Plus, RFinder-Worldwide Repeater Directory, Radio Reference, or Repeater Book to get repeater information. (separate purchase or subscription may be required)

Ability to copy and paste spreadsheet or website data.

Much more than just memory channel programming with settings for other radio menu items.

RT Systems Programming Software for the ID-4100 radio

Windows version requires Microsoft Windows 7 (32 and 64-bit), Windows 8/8.1 (full version), Windows 10.

Mac version requires MacOS X Lion (10.7 64-bit) or higher.



On some Icom radios the USB-29A and the USB-RTS05 cables are offered for programming. This comparison is presented to help you decide between the two cables.

USB-29A              The USB-29A programs the radio with which is it shown. It addresses the radio through the 3.5mm speaker jack.



The USB-29A can be used to program many of the Icom handhelds and mobiles as well as radios from other manufacturers. It is one of the more "universal" programming cables in the RT Systems line.

USB-RTS05          The USB-RTS05 cable programs the ID-4100 through the 2.5mm data port.



It works both for programming the radio with the RT Systems software AND as a cable for digital data using other programs such as D-Rats. It also works with some other Icom D-Star radios (handhelds and mobiles) for programming and data.



Note: Be aware that you must turn off GPS from the controls on the front of the radio when using this cable for programming. Erratic movement of the mouse will occur if GPS is on.
