RT Systems WCS-D880 DATA



Ready to Ship!
Check Store Stock

Huntsville Store:

Las Vegas:

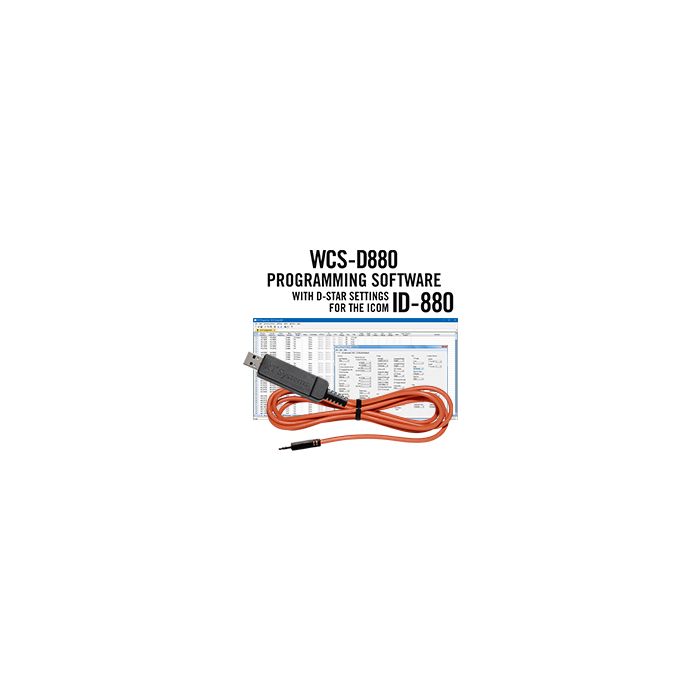

Includes: WCS-D880 Software and RTS05 Cable

Software - Program memories and other setting of the Icom ID-880 radio. Works with Windows XP, Vista, Windows 7 (32 and 64 bit) or Windows 8 (full version)

USB-RTS05 Cable - USB to 2.5mm plug programming cable
The USB-RTS05 cable programs the IC-880 through the 2.5mm data port. It works with a limited few other Icom radios for programming with the RT Systems software. It, however, works both for programming the radio with the RT Systems software AND as a cable for digital data using other programs such as D-Rats for the IC-880 and some other Icom D-Star radios (handhelds and mobiles).

On some Icom radios the USB-29A and the USB-RTS05 cables are offered for programming. This comparison is presented to help you decide between the two cables.
  • USB-29A -
    • The USB-29A programs the radio with which is it shown. It addresses the radio through the 3.5mm speaker jack.
    • The USB-29A can be used to program many of the Icom handhelds and mobiles as well as radios from other manufacturers. It is one of the more "universal" programming cables in the RT Systems line.
  • USB-RTS05 -
    • The USB-RTS05 programs the radio with which it is shown AND can be used for data with other programs such as D-Rats. It addresses the radio through the data jack.
    • This cable is not as universal as the USB-29A in its use with other radios for programming; however, it can be used for data on many Icom D-Star radio models.
    • Note: Be aware that you must turn off GPS from the controls on the front of the radio when using this cable for programming. Erratic movement of the mouse will occur if GPS is on.
Radio Programming Software for the Icom ID-880 Data

RT Systems WCS-D880
The ID-880 Programmer is designed to give you the ease and convenience of programming the memories and set menu options of your radio from your PC including settings for D-Star operations. The D-Star calculator built into the program gives you D-Star information from all around the world to use. You can easily set up your D-Star channels with just a few mouse clicks.

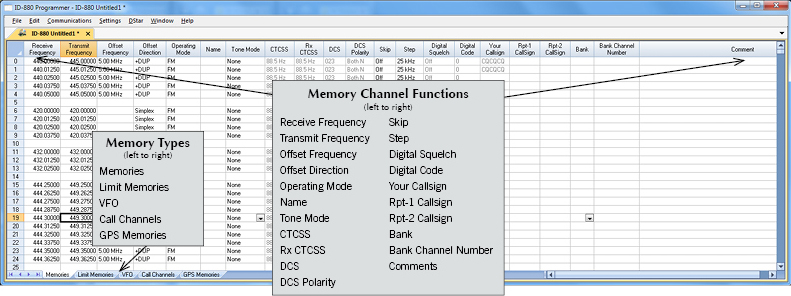

Memory Channels Include:
1,000 Memories with D-Star options
50 Limit Memories (25 pair) with D-Star options
8 VFO Channels
2 Call Channels with D-Star options
50 GPS Memories

Other Menu Item Categories Include:

The Radio Programmer Is for so Much More than Just Memory Management.

With the ID-880 Programmer you can begin a new “factory fresh” file into which frequencies and option settings are entered. Or, you can read from the radio, store these details on your computer and make changes. Then, with minimal button pushing, send the new configuration back to the radio.

The Programmer allows you to create and save as many files as you want for your radio. Files can even be shared between users via email or the Internet. Any RT Systems Version 4 program can open a file from any other RT Systems Version 4 programmer... even from a different radio.

Managing all the options of this great little radio becomes easy with the Programmer. The cut, copy, paste and insert features of the Programmer make channel management easier than ever.

Open more than one file at a time. Memory channel information can be copied from one file to another within the Programmer making it really easy to set up a new file.
