West Mountain 58420-1119

West Mountain CWswitch for RIGblaster Duo

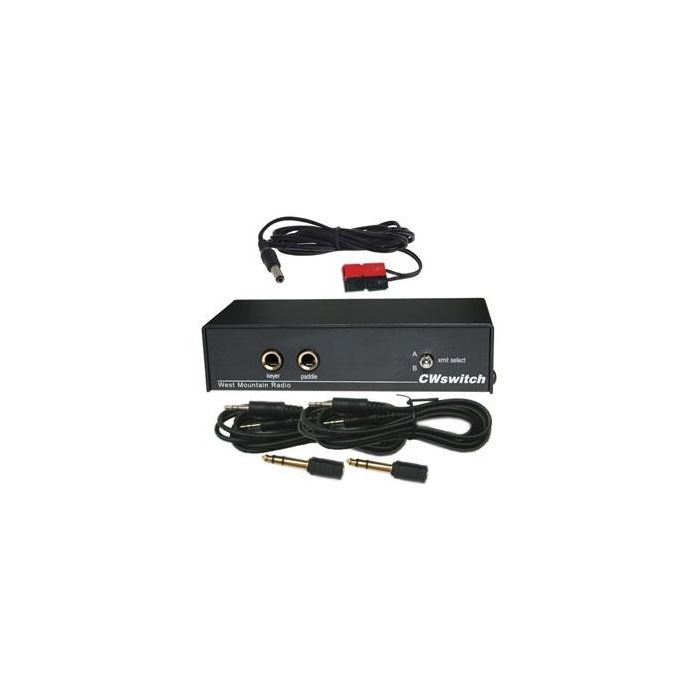

Includes:

• CWswitch
• (2) 6' Mini Plug Stereo Cables
• (2) 1/8" Mini to 1/4" Adapters
• Owners Manual
• RIGblaster Duo power and control cable (CWswitch for RIGblaster Duo only)
• 1 - 6' DC power cable with Powerpole connector (CWswitch for Standalone Operation only)

Capabilities:

• Two keyer outputs (2-wire straight key jack), one for each radio
• Two paddle outputs (3-wire jack), one for each radio's internal keyer. Used with dot-dash paddles that make one connection to send dots and another to send dashes
• Two keyer inputs gives users the choice of using an external keyer and either a computer or straight key for CW.
• Hooking up all three (an external keyer, computer keyer and straight key) is possible if a Y-cord (not supplied) is used.
• A single paddle input enables one paddle to be switched between both radios.
• CWswitch for RIGblaster Duo contains a RIGblaster Duo power and control cable, enabling the Duo to control the CWswitch. CW operators can use either the RIGblaster Duo (via software or PTT switch) or their radio’s break-in or semi-break-in transmit control to activate transmit.
• CWswitch for Standalone Operation comes with a 12 volt DC power cable designed for use with other rig configurations.
