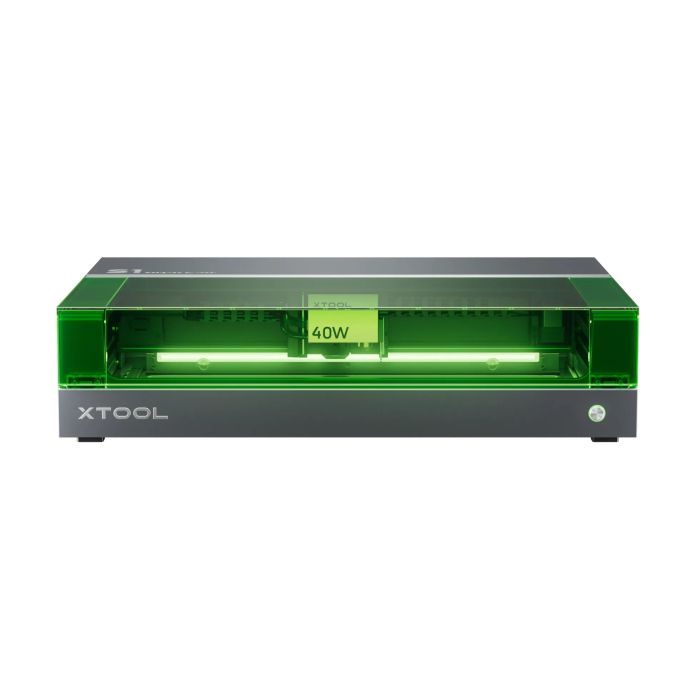

xTool S1 40W Enclosed Diode Laser Cutter Basic Bundle
Switchable laser modules satisfy the processing of almost any material.
- Pin-point™ positioning: 10 times more accurate than single-camera systems.
- Larger bed size than others: 23.93'' x 15.16'' for efficient batch processing.
- AutoPassthrough™ and 3D Curve™ Engraving.
- Class 1 Safety: 5-direction flame detection, emergency stop, lid-open safety stop and laser key lock.
This is an all-in-one, ultra-precision laser engraver. From beginner to expert, there's something for everyone. Plus, with 4 switchable laser modules, you can upgrade at any time to excel in any scenario.
Precision Matters for Your Treasures
S1 is equipped with revolutionary Pin-point Positioning™ technology, and is 10 times* more accurate than single-camera systems*. Effortlessly aiding you in accomplishing delicate engraving tasks, bidding farewell to waste and loss caused by positioning deviations.
One-pass Engraving Success, Zero Waste️
No matter the shape, it handles perfectly.
Snapshot & Batch fill
Snap a photo and seamlessly transfer to the desktop software for one-click Smart Fill, making bulk projects accurate and automated.
40W/20W/10W Diode Laser
Experience the versatility of our 40W, 20W, and 10W lasers, capable of handling materials like wood, leather, glass, rock, paper, fabric, dark acrylic, and more.
2W 1064nm Infrared Laser
The 2W 1064nm infrared laser can engrave all metals and plastics, broadening material options.
Flexible Laser Choices, Thick Cuts or Fine Details
40W - Create Like A Pro
Cut like a pro with our 40W laser head, slicing 18mm wood like butter and hitting speeds of 600mm/s.
Upgrade with Ease
Upgrade effortlessly by simply replacing the laser head, eliminating the need to purchase an additional machine. This maximizes cost and space savings for you.
What are the differences between 40W, 20W, 10W, and 2W IR?
How to choose?
- 40W: Ideal for thick cutting and high-efficiency processing
- 20W: Versatile for both engraving and cutting
- 10W: Best suited for engraving tasks, with the added versatility of light cutting
- 2W IR: Expand your material boundaries and conquer metal engraving
| Materials processed by different laser modules |
|
40W/20W/10W |
2W IR |
| Cutting Materials |
Paper, Wood, Leather, MDF, Felt, Opaque acrylic, etc. |
- |
| Engraving Materials |
Paper, Wood, Leather, MDF, Felt, Stainless steel, Opaque acrylic, Bamboo, Fabric, Dark glass, Ceramic, Jade, Marble, Shale, Cement, Brick, Plated metal, Painted metal, etc. |
Metal, Plastic, Acrylic |
| Thicker cut: Maximum thickness (one-pass) |
| Material |
40W |
20W |
10W |
2W IR |
| Cherry Wood |
18mm |
10mm |
6mm |
- |
| Basswood Plywood |
15mm |
10mm |
6mm |
- |
| Walnut Wood |
15mm |
10mm |
- |
- |
| Black Acrylic |
15mm |
8mm |
- |
- |
| Stainless Metal |
0.1mm |
0.04mm |
- |
- |
| Higher efficiency: Maximum cutting speed (one-pass) |
| Material |
40W |
20W |
10W |
2W IR |
| 3mm Basswood |
15mm/s |
7mm/s |
5mm/s |
- |
| 6mm Basswood |
10mm/s |
4mm/s |
2mm/s |
- |
| 10mm Basswood |
6mm/s |
3mm/s |
- |
- |
| Higher precision: Fine engraving |
| Feature |
40W |
20W |
10W |
2W IR |
| Spot Size |
0.08×0.10 mm |
0.08×0.06 mm |
0.06×0.04 mm |
0.03×0.03 mm |
Never Limited By Size, Go Big for Long-Term Gains
The xTool S1 boasts a large bed size of 23.93" x 15.16" inches and a spacious work area of 19.6" x 12.5" inches.
Ultra-efficient Batch Processing
All Sizes, All at Once
Cut like a pro with our 40W laser head, slicing 18mm wood like butter and hitting speeds of 600mm/s.
Tiny Items, Huge Output
With ultra-tiny 0.03mm laser spots, the 1064nm IR laser excels at detailed engraving for photos, jewelry, business cards, and more.
World's 1st 4-in-1 RA2 Pro
Rotary Engraving for Versatile Creations
From home to outdoors, parties to sports, the RA2 Pro is suitable for 90% of daily use cylinders and spheres. Create unique wedding wine glasses and custom jewelry.
World's 1st Automatic Conveyor Feeder
Extra Large Processing Area
Support expansive projects up to 118 inches (3000mm) with AutoPassthrough™ Technology. Craft large items or efficiently produce batches with ease.
- 118 inches
- AutoPassthrough™
World's 1st Screen Printing Solution with Laser
Laser + Printer
Bring Colors to Laser World
The xTool Screen Printer expands material use, letting you print vibrant colors on anything, not just 300+materials. Pair with xTool S1, it's now easy to add bright, eye-catching colors to your laser creations. You can also replicate your designs effortlessly with batch printing, enhancing your projects and growing your business.
3D Curve™
Perfect on Curved Surfaces
The xTool S1 features an advanced autofocus system that dynamically adjusts focus for flawless carving on curved surfaces.
See What It Can Do?
Level up your personalization game! 3D engraving tackles plates, spoons, kettles, and any curved surface.
EasySet Library™️
500+ Preset Parameters, One-Click Processing
One-click to set optimal parameters, no more testing and wasting materials to get the desired engraving results.
Snapshot Preview
Photo to XCS, Easy Batch Filling
Snap a photo and seamlessly transfer to the desktop software for one-click Smart Batch Fill, making bulk projects accurate and automated.
XCS Software Helps Your Idea
Let AI Draw for You
With just a few words, AI can generate laser-ready designs, offering over 10 style options.
5000+ Project Ideas
xTool officials and experienced users share detailed project instructions and design files, enabling effortless replication and creative inspiration.
All Vector Images are In Your Control
All patterns and lines are in your control. Redraw, rewrite, remix - your imagination is the only limit.
Out-of-Box
Ready to use straight out of the box, just unpack and start.
One-click Auto-focus
Our technology guides the laser spot to penetrate below the surface, unleashing cutting-edge ability and engraving precision, achieving hands-free accuracy.
World-First
Fire Detected? Extinguished!
Upon fire detection, the fire safety set automatically releases CO2, providing a one-stop fire risk solution.
Bye Harmful Gases
To protect health, powerful exhaust fans quickly discharge the harmful gases produced by laser processing.
Light Filtering Lid to Protect Your Eyes
The large, high-transparency cover offers excellent light filtering (0.35% light left), enabling clear process observation without goggles.
Every Detail Matters Built For Durability
Solid As A Rock
The aerospace-grade aluminum frame delivers unbeatable stability, keeping the laser head steady for consistently professional results.
Highest Safety Standards
The xTool S1 laser engraver's full-body cover uses UL94-V0, the highest grade of flame retardant, creating a strong flame barrier and ensuring your peace of mind.
Speed with Quality Assurance
The design uses a sturdy rail structure for enhanced stability, ensuring high-quality processing results even at extreme working speeds of up to 600mm/s.
Reliability Test Results
- ≥ 32,400 hours: of laser tube aging tests (full power, 45 prototype machines)
- ≥ 25,000 hours: of motor aging tests (Accumulated by 6 prototype machines)
- ≥ 48,000 times: of openning & closing the lid
- ≥ 10,950 hours: of power stability tests (Accumulated by 3 prototype machines)
- ≥ 3,480 hours: of extreme environmental tests (7 conditions with 25 prototype machines)
- ≥ 30 rounds: of reliability tests (drop tests, impact test, vibration test, etc.)
