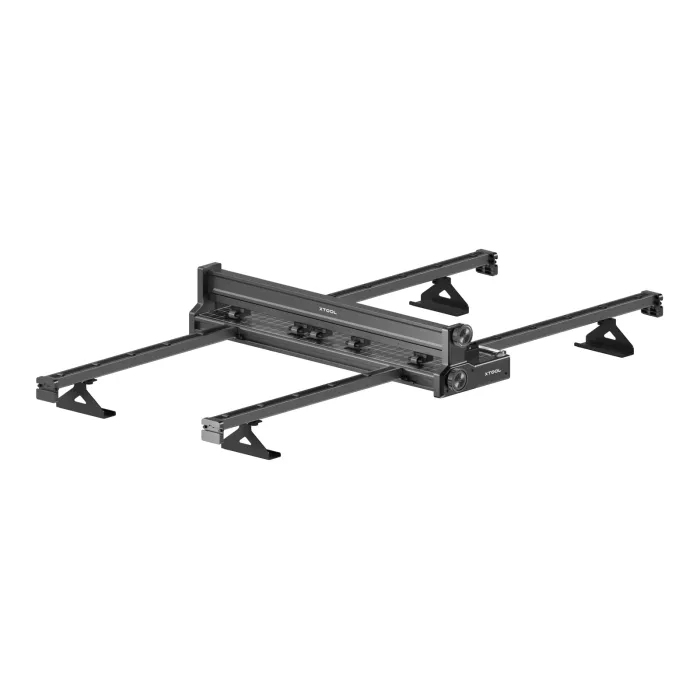

Automatic Conveyor Feeder for S1
Pair with the S1 Riser Base for full functionality
- Take note: Must be used with Riser Base
- The basic (2 pairs of rails) support 39 inches.
- The all-in-one kit (6 pairs of rails) supports 90 inches.
Extra Large Processing Area
The working area of 118''×18.5'', along with the S1 Conveyor Feeder, totally makes batch engraving and cutting much easier.
Automatic Conveying, Available in Cutting and Engraving
Automatic engraving path planning and material conveying; Farewell to manual material feeding and accuracy deviation.
Make Your Use Easier
Pressing Wheels, High Stability
The upper and lower pressure wheels use anti-slip materials, and materials of various sizes can be easily fixed to prevent them from slipping or shifting during the conveying process.
Buckle Design, Easier Assembly
With buckle design, the conveyor rail can be installed easily.
Color Markings for Pressure Setting
Different pressures need to be set for processing different materials. With color markings quickly matching each material pressure level, the pressure can be easily adjusted according to the material type.
Knob for Easy Positioning Adjustment
Users can easily adjust the position of materials with the lower knob.
Aligning Grids, for Precise Process
Align the material with the grids on the conveyor feeder and convey the material to the device, so that the material is parallel to the conveying direction.
Product Information
- Product Name: Automatic Conveyor Feeder for xTool S1
- Applicable to: xTool S1
- Package Size: 29.8'' x 10.7'' x 8.5'' (757 x 271 x 216mm)
- Product Size: 24.7'' x 7.9'' x 5.3'' (628 x 200 x 135mm)
- Product Weight: 7.8kg
- Max. speed: 160mm/s
- Work Area
- Maximum Processing Area: 118'' x 18.5'' (3000 x 470mm)
- Maximum Material Width: 21.5'' (545mm)
- Minimum Material Width: 2.5'' (65mm)
- Maximum Material Thickness: 0.55'' (14mm)
