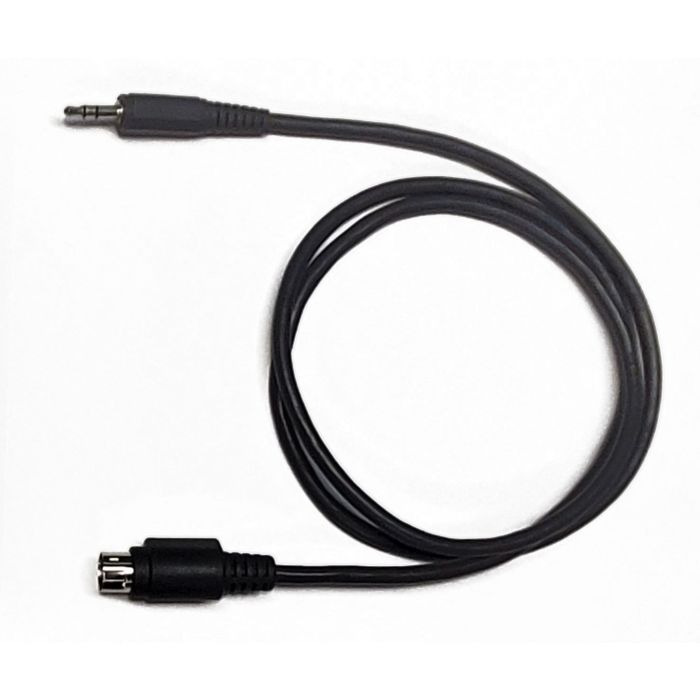

LDG Y-ACC-2 Interface Cable, 36in, AT-Series to Yaesu DX10
Y-ACC-2 36″ cable interface between select Yaesu radios and LDG AT-Series tuners. Connects between CAT port on the radio and the Radio Interface on the LDG tuner. Does not supply DC to tuner. To view the LDG DC Power Cable, click here.
FT-450 (D), FT-950, FT-dx1200, FT-dx10
- Connect Mini-DIN-10 to radio, 3.5mm
- Stereo TRS plug end to tuner.
- Pressing the tune button on the tuner changes the mode of the radio to CW (mode change does not appear on some radio display), tunes, then returns the radio to the previous mode. The RF power is lowered while the tuner is tuning. There is no need to change RF power settings before or after tuning.
