Yaesu FTX-1 Optima MAX Bundle

Availability:
Accepting Backorders

Pre-order today!
Description

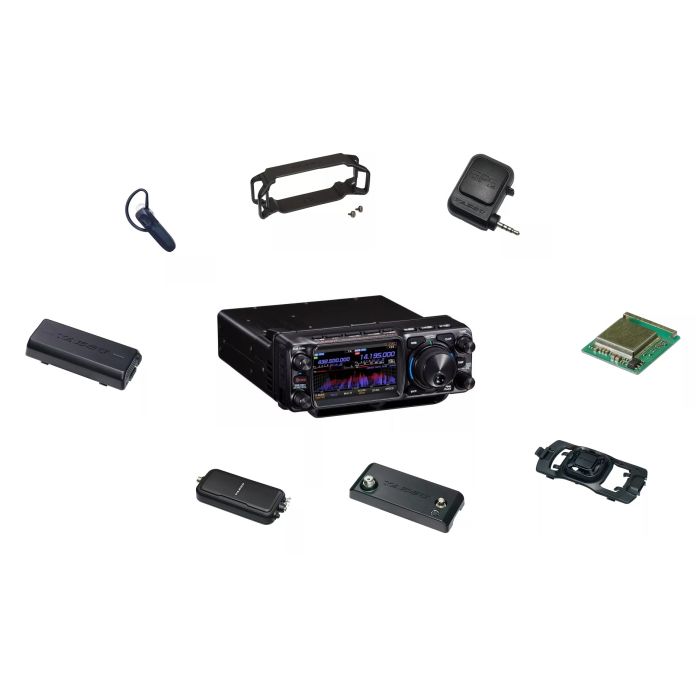

Yaesu FTX-1 Optima Max
Built for those who want it all! The FTX-1 Optima Max includes not only the radio, but a massive selection of all major Yaesu accessories such as;
- Yaesu SSM-BT20 Bluetooth 5.0 Headset
- Yaesu SPG-1 Protection Guard Cage for FTX-1
- Yaesu FGPS-5 GPS Antenna Unit for FTX-1
- Yaesu BU-6 Bluetooth Unit
- Yaesu SBR-52LI 6400mAh Li-ion Battery Pack
- Yaesu FC-90 HF/50MHz 10W Automatic Antenna Tuner
- Yaesu FC-80 HF/50MHz 10W Automatic Antenna Tuner
- Yaesu SCF-1 Cooling Fan
Check out the "Features" tab for more information about each included accessory!
Operate HF/6m/2m/70cm from the comfort of your own home, or anywhere in the world
The Yaesu FTX-1 Optima is a versatile and powerful transceiver designed for both 100W base station operation (with an external DC power supply) and portable field use (with the included Li-ion battery). Its innovative "Field Head" design forms the core of both configurations.
For base station operation, the FTX-1 Optima comes supplied with the detachable 100W RF power amplifier - SPA-1. In the field, simply attach the included SBR-52LI Li-ion battery to the rear of the Field Head for 6W (5W QRP) stand-alone operation across HF through V/UHF bands in all modes: SSB, CW, AM, FM, and C4FM digital. Enjoy approximately 9 hours of operation on HF (SSB) and 8 hours on V/UHF (FM) with a 6-6-48 duty cycle on battery power. The SBR-52LI battery can be conveniently recharged using a third-party USB Type-C PD cable (45W or greater/ 15V 2A). When connected to an external 13.8V DC power supply, the FTX-1 Optima offers up to 10W output and automatically charges the SBR-52LI.
The FTX-1 Optima boasts continuous wide-range receiver coverage from 30kHz to 174MHz and 400MHz to 470MHz, ideal for SWL, FM broadcast, and Air-band listening.
Useful Features for HF through UHF:
- MAG (Memory Auto Grouping): Automatically groups memory channels by band for easy recall. The M-GRP (My Group) allows custom grouping of any desired memory channels.
- QMB (Quick Memory Bank): Stores frequency, mode, and settings of the current receiving signal for one-touch recall of up to 10 channels.
- PMG (Primary Memory Group) for VHF/UHF: Register up to 5 PMG channels for quick monitoring with AUTO scan (simultaneous reception of up to two active channels) and MANUAL scan options. Ideal for monitoring club member frequencies.
- AMS (Automatic Mode Select) for VHF/UHF: Automatically detects and selects between C4FM digital and FM modes.
- Memory Channel Scope for HF/VHF/UHF: Displays the reception status of up to 43 memory channels with a bar graph for easy selection.
More Features:
- Excellent Proximity Two-Signal Characteristics: Achieved through a powerful RF Front-End design with a 10-divided BPF in amateur bands and a low NF RF amplifier with excellent intermodulation characteristics. A high-purity 110.592MHz oscillator ensures a high-quality sampling clock signal for the A/D converter.
- SDR Circuit Configuration: Adopts the same high-resolution A/D converter and FPGA used in the FTDX10 for excellent fundamental receiving performance.
- Effective QRM Rejection: Features a 32-bit High-Speed DSP with SHIFT/ WIDTH/ NOTCH/ CONTOUR/ APF/ DNR/ NB.
- True Dual-Band Operation: Includes C4FM/C4FM Simultaneous Receive (HF/V, HF/U, V/U, U/V, V/V, U/U)*. (*HF/HF not available)
- 3DSS (3-Dimensional Spectrum Scope): High-Resolution 4.3-inch TFT Color Touch Panel Display.
- Intuitive Front Panel Design: Features Dual LED indicators for MAIN/SUB band status, a VMI LED for operation mode, and a FUNC dial for quick menu selection and setting changes.
- Super-DX: Expands communication range (available in all bands and modes except C4FM).
- “PRESET” Mode: Optimized for FT8 operation.
- 2 Large Front Speakers: Ensures high-quality and powerful audio.
- Aluminum Die-Cast Chassis: Equipped with multiple slits for high heat dissipation, ensuring stable high-power output.
Other Practical Features:
- 1200/9600bps APRS® Data Communication
- Compatible with WiRES-X (available in August 2025)
- Micro SD card slot
- Comprehensive CW operation features
- USB ports for CAT operation, audio input/output, and TX control
- Versatile FM mode functions (DCS, CTCSS encoder/decoder, ARS, DTMF)
- AGC (Automatic Gain Control)
- Connectable with YAESU Automatic Active Tuning Antennas (ATAS-120A, ATAS-25) and the FC-40 External Auto Antenna Tuner for 100W HF/50MHz and 50W V/UHF operation.
New Optional Accessories for Field Head:
- SCF-1 Cooling Fan
- FC-80 Automatic Antenna Tuner (10W HF/50MHz)
- FC-90 Automatic Antenna Tuner (10W HF/50MHz, Long Wire/50Ω)
- SPG-1 Protection Guard
- FGPS-5 GPS Antenna Unit
- BU-6 Bluetooth Unit
The Yaesu FTX-1 Optima offers a complete solution for both serious base station operators and adventurous field enthusiasts, delivering powerful performance and a wide array of features in a uniquely adaptable design.
Purchase yours at GigaParts today!
View the official announcement brochure here.
Features
Yaesu SSM-BT20 Bluetooth 5.0 Headset
The new SSM-BT20 is a Bluetooth 5.0 headset that is designed for all YAESU Bluetooth compatible transceivers.
- Supports 16K audio sampling rate and the audio quality is much clearer than the older SSM-BT10.
- A new design also has improved PTT (Multi-Function) button operability.
- USB-C Rechargable
The Yaesu SPG-1 is a robust and specifically designed protection guard cage for the front panel of the Yaesu FTX-1 Field Head. This durable cage provides an extra layer of defense against accidental bumps, scratches, and impacts that can occur during portable operations, transportation, and even in a fixed station environment.
Constructed from sturdy material, the SPG-1 securely encases the front panel of your FTX-1 Field Head, safeguarding the controls, display, and connectors. Its design ensures that all essential buttons, knobs, and the screen remain fully accessible for unhindered operation while providing valuable protection.
The SPG-1 is an essential accessory for owners of the Yaesu FTX-1 Field who frequently operate in the field, participate in outdoor events, or simply want to ensure the longevity and pristine condition of their transceiver's front panel.
Key Features:
- Robust Protection: Provides a sturdy cage around the front panel of the FTX-1 Field Head.
- Shields Against Damage: Protects against bumps, scratches, and impacts.
- Full Accessibility: Designed to allow complete access to all front panel controls and the display.
- Durable Construction: Made from strong materials for reliable protection.
- Specifically Designed for FTX-1 Field: Ensures a perfect fit and secure attachment.
- Ideal for Portable Operations: Offers peace of mind during transport and outdoor use.
The Yaesu SPG-1 Protection Guard Cage is a wise investment for any Yaesu FTX-1 Field owner looking to protect their valuable transceiver's front panel from the rigors of field use and everyday handling.
The Yaesu FGPS-5 is a compact and dedicated GPS Antenna Unit designed for the Yaesu FTX-1 Field Head. This unit allows the FTX-1 Field to acquire and utilize GPS data for various functions, enhancing its capabilities for field operations and APRS (Automatic Packet Reporting System) applications.
The Yaesu BU-6 Bluetooth Module is an internal expansion unit designed to be installed within the Yaesu FTX-1 Field Head. Once installed, this module enables Bluetooth connectivity for your transceiver, providing wireless communication capabilities with compatible Bluetooth devices.
The BU-6 offers a convenient way to enhance the functionality and usability of your Yaesu FTX-1 Field, especially in mobile or field environments where wireless operation can be advantageous.
Key Features:
- Internal Bluetooth Connectivity: Adds Bluetooth capabilities to the FTX-1 Field Head.
- Supports Bluetooth Headsets*: Enables hands-free voice communication.
- Compatibility with Bluetooth Accessories: Allows connection with compatible wireless microphones and PTT devices.
- Seamless Integration: Designed to fit internally within the FTX-1 Field Head.
*Compatibility only tested with first-party Yaesu Bluetooth devices, such as the SSM-BT20
The Yaesu BU-6 Bluetooth Module is a valuable addition for Yaesu FTX-1 Field owners who desire the convenience and flexibility of wireless Bluetooth connectivity for voice communication and accessory use.
The Yaesu SBR-52LI is a high-capacity 6400mAh Li-ion battery pack designed specifically for the Yaesu FTX-1 Field portable transceiver.
Key Features
- High Capacity: With a 6400mAh rating, it provides extended operating time for the FTX-1 Field, allowing for approximately 9 hours of operation on HF bands (SSB) and 8 hours on V/UHF bands (FM) with a 6-6-48 duty cycle. This is ideal for extended field operations or when access to power is limited.
- Compatibility: It is the standard battery supplied with the Yaesu FTX-1 Field, ensuring a perfect fit and reliable performance.
- Recharging: The SBR-52LI can be recharged separately using a third-party USB Type-C PD (Power Delivery) cable with specifications of 45W or greater / 15V 2A. This offers a convenient and widely available charging method.
- In-Radio Charging: When the FTX-1 Field is connected to an external 13.8V DC power supply, the SBR-52LI battery is charged automatically within the transceiver.
- Voltage: It operates at a nominal voltage suitable for the FTX-1 Field's power requirements, enabling its 6W (5W QRP) output on battery power and up to 10W output with an external DC supply (while also charging the battery).
- Lightweight and Portable: As a Li-ion battery, it offers a good balance of high energy density and relatively low weight, crucial for portable operations.
The Yaesu SBR-52LI is an essential accessory for Yaesu FTX-1 Field owners who need long-lasting power for their portable operations. Its high capacity and convenient charging options make it a reliable power source in various field environments.
The Yaesu FC-90 is a versatile and compact automatic antenna tuner designed to work efficiently with both long wire and standard 50 Ω antennas on the HF and 50MHz (6-meter) bands. Operating at a 10W power level, this tuner offers a significant advantage over traditional desktop tuners due to its ability to be installed close to the antenna via a cable connection. This proximity minimizes SWR losses in the feedline, resulting in a superior impedance match and improved transmission efficiency.
The FC-90 automatically finds the optimal impedance match for your chosen antenna, simplifying operation and allowing for quick and easy tuning across the supported bands. This is particularly beneficial for portable and field operations where antenna setups can vary. Its compact size makes it easy to transport and integrate into various antenna configurations.
Key Features:
- Versatile Antenna Compatibility: Tunes both long wire and 50 Ω antennas.
- HF/50MHz Coverage: Supports tuning across the HF bands and the 6-meter amateur band.
- 10W Power Handling: Ideal for QRP and low-power portable operations.
- Remote Installation Capability: Designed to be installed close to the antenna via a cable, minimizing feedline losses.
- Superior Impedance Matching: Provides a more efficient match compared to typical desktop tuners.
- Compact and Lightweight: Easy to transport and integrate into various setups.
- Automatic Tuning: Simplifies operation and allows for quick antenna matching.
The Yaesu FC-90 Automatic Antenna Tuner is an excellent choice for amateur radio operators seeking a compact and efficient tuning solution for both long wire and 50 Ω antennas on HF and 6 meters, especially in portable and field applications where minimizing feedline losses is crucial.
The Yaesu SCF-1 Cooling Fan is a specifically designed accessory for the FTX-1 Field Head, providing effective cooling during continuous high-duty cycle transmissions, such as those used in many data modes.
When operating your FTX-1 Field with an external DC power supply, the SCF-1 easily installs onto the rear of the Field Head without the need for any tools. This allows for quick and convenient deployment when enhanced cooling is required for extended transmit periods.
The SCF-1 is also designed for easy swapping with the SBR-52LI High-Capacity Battery Pack. You can quickly detach the cooling fan and attach the battery pack (or vice versa) as your operating needs change.
Important Note: The SCF-1 Cooling Fan cannot be attached simultaneously with the SBR-52LI High-Capacity Battery Pack due to the mounting configuration on the rear of the FTX-1 Field Head.
Key Features:
- Effective Cooling: Designed to provide enhanced cooling for the FTX-1 Field Head during continuous transmission.
- Tool-Free Installation: Easily attaches to the rear of the Field Head without requiring any tools.
- Quick Swapping: Can be quickly and easily replaced with the SBR-52LI High-Capacity Battery Pack.
- Optimized for External DC Operation: Ideal for use when the FTX-1 Field is powered by an external DC supply and engaged in extended transmit modes.
- Lightweight and Compact: Designed to add minimal bulk to the portable Field Head unit.
The Yaesu SCF-1 Cooling Fan is a practical accessory for Yaesu FTX-1 Field users who frequently operate in data modes or other high-duty cycle applications with an external power supply, ensuring optimal performance and longevity of their transceiver.
Specifications
General | ||
---|---|---|
TX Frequency Ranges | 1.8MHz-450MHz (Specified performance, Amateur bands only) 70-70.5MHz (Specified performance, UK Amateur bands only) |
|
RX Frequency Ranges | 30kHz-174MHz, 400-470MHz (operating) 1.8MHz-430MHz band (specified performance, Amateur bands only |
|
Emission Modes | A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM), F7W (C4FM), F1D, F2D | |
Frequency Steps | 1*/5/10/20Hz (CW/SSB/AM), 5/10/20Hz (FM) *Fine Tuning "ON" | |
Antenna Impedance | 50Ω, unbalanced | |
Operating Temperature Range | +14°F to +122°F (-10°C to +50°C) | |
Frequency Stability | ±0.5ppm (after 1 minute @14°F to +122°F [-10°C to +50°C]) | |
Supply Voltage | DC10.8V (SBR-52LI) DC13.8V ± 15% (External DC Jack) |
|
Power Consumption (Approx) | RX (no signal) 0.6A, RX (signal present) 0.9A TX (Field, 6W) 2.5A, TX (Field, 10W) 3A, TX (Optima, 100W) 21A |
|
Dimensions(W x H x D) | FTX-1 Field: 8.4" x 3.5" x 2.2" (213 x 89 x 55mm) FTX-1 Optima: 8.4" x 3.5" x 9.4" (213 x 89 x 240mm) |
|
Weight (Approx) | FTX-1 Field: 2.75lbs (1.25kg) FTX-1 Optima: 8.6lbs (3.9kg) |
|
Transmitter | ||
Power Output | FTX-1 Field: 0.5-6W (0.5-1.5W AM Carrier) @ SBR-52LI 0.5-10W (0.5-2.5W AM Carrier) @ External DC 13.8V FTX-1 Optima: HF/50MHz: 5-100W (5-25W AM Carrier) 144/430MHz: 5-50W (5-13W AM Carrier) |
|
Modulation Types | J3E (SSB): Balanced A3E (AM): Low-level (Early Stage) F1D, F2D, F3E (FM): Variable Reactance F7W (C4FM): 4-level FSK |
|
Maximum FM Deviation | ±5.0kHz / ±2.5kHz (Narrow) | |
Harmonic Radiation | Better than -50dB (1.8MHz - 29.7MHz Amateur bands) Better than -63dB (50MHz Amateur band) Better than -60dB (144/430MHz Amateur bands) |
|
SSB Carrier Suppression | At least 60dB below peak output | |
Undesired Sideband Suppression | At least 60dB below peak output | |
Bandwidth | 3kHz (LSB/USB), 500Hz (CW), 6kHz (AM), 16kHz (FM/C4FM) | |
Audio Response (SSB) | Not more than -6dB from 300 to 2700Hz | |
Microphone Impedance | 600Ω (200 to 10kΩ) | |
Receiver | ||
Circuit Type | Direct sampling Superheterodyne (below 48MHz) Single Conversion IF Sampling (48MHz and above) |
|
Intermediate Frequencies | MAIN: 44.5 - 49.5MHz SUB: 41.3 - 44.3MHz (48MHz and above) |
|
Sensitivity (TYP) | SSB/CW (BW: 2.4kHz/10dB S+N/N) |
|
AM (BW: 6kHz/10dB S+N/N, 30% modulation @ 400Hz) |
|
|
FM (BW: 12kHz, 12dB SINAD, 3.5kHz DEV @ 1kHz) |
|
|
Selectivity (WIDTH: Center) | Mode | -6dB / -60dB |
CW (BW=0.5kHz) | 0.5kHz or better / 0.75kHz or less | |
SSB (BW 2.4kHz) | 2.4kHz or better / 3.6kHz or less | |
AM (BW=6kHz) | 6kHz or better / 15kHz or less | |
FM (BW=12kHz) | 12kHz or better / 25kHz or better | |
Image Rejection | 70dB or better (1.8MHz - 28MHz Amateur bands) 60dB or better (50MHz, 70MHz, 144MHz, 430MHz Amateur bands) |
|
Audio Output Impedance | 4 to 16Ω (4Ω: nominal) | |
Conducted Radiation | Less than 4nW |
Includes
- Yaesu FTX-1 Optima
- Field Head
- SPA-1 100W RF Power Amplifier
- Heavy-Duty DC Power Cable for SPA-1 (25A)
- DC Power Cable with 2p round plug for Field Head
- SBR-52LI - 6400mAh Li-ion battery
- SSM-75E Hand Microphone
- Operating Manual
- Yaesu SSM-BT20 Bluetooth 5.0 Headset
- Yaesu SPG-1 Protection Guard Cage for FTX-1
- Yaesu FGPS-5 GPS Antenna Unit for FTX-1
- Yaesu BU-6 Bluetooth Unit
- Yaesu SBR-52LI 6400mAh Li-ion Spare Battery Pack
- Yaesu FC-90 HF/50MHz 10W Automatic Antenna Tuner
- Yaesu FC-80 HF/50MHz 10W Automatic Antenna Tuner
- Yaesu SCF-1 Cooling Fan
