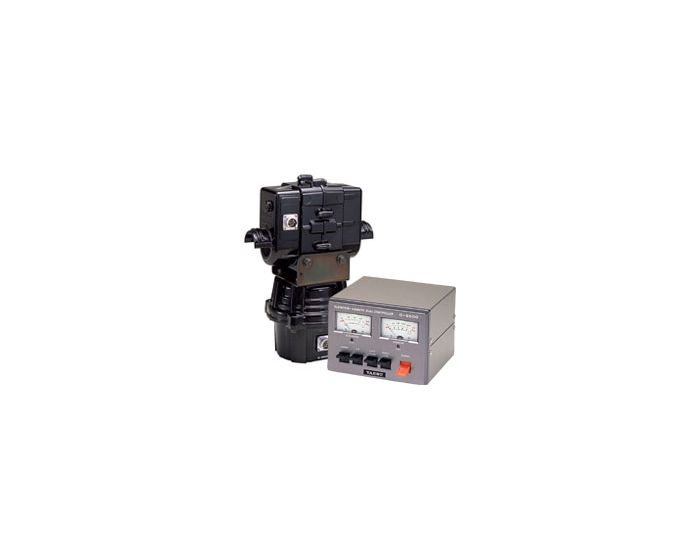

Yaesu G-5500DC Rotor

SKU
ZYS-G-5500
$759.95
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

Light-Medium Duty - Azimuth+Elevation, 11 Sq. Ft. (Rotor Diameter 7 12in, Rotor Height 12 1/2in, Mast Diameter 1 1/2 - 2 1/2in, Boom Diameter 1 1/4 - 1 5/8in)

The Yaesu G-5500DC is ideal for space communication antennas as well as many other amateur applications. The G-5500DC features an interface jack for computer control and a full Azimuth-Elevation rotation system with a rotation range of 180 degrees from the Elevation Rotator and a turning range of 450 degrees from the Azimuth Rotator.

Specifications:

-Wind Load: 1m
-K-Factor: 60
-Stationary Torque: AZ:4,000kg/cm EL:4000kg/cm
-Rotation Torque: AZ: 600kg/cm EL:1,400kg/cm
-Max. Vert. Load: 30kg
-Max. Vert. Intermittent Load: 100kg
-Backlash: AZ:1° EL:1°
-Mast Size: AZ:38 - 62 Ø EL:AZ:38 - 62 Ø
-360° Rotation Time: AZ:70sec/50Hz 58sec/60Hz
-180° Elevation Time: EL:80sec/50Hz 67sec/60Hz
-Boom Diameter: EL 32 - 43Ø
-Rotator Diameter x Height: 186Ø x 254(W) X 350 (H)
-Weight: 7.8kg
-Cable Requirement: 2 x 6



•requires two six conductor rotor cables



Box contains the following items:

Elevation Rotator Unit ................................. 1
Azimuth Rotator Unit ..................................  1
Controller Unit .............................................  1
Mast Clamp (pair) ........................................  2
Pipe clamp ...................................................  2
U Bracket .....................................................  1
M8 x 16 Hex. Bolt .......................................  4
M8 x 25 Hex. Bolt .......................................  8
M8 x 70 Hex. Bolt .......................................  4
M8 x 95 Hex. Socket Bolt ...........................  1
U-Bolt ..........................................................  2
6mm Spring Washer ....................................  4
6mm Flat Washer .........................................  4
8mm Spring Washer ..................................  18
8mm Flat Washer .......................................  12
M8 Square Nut.............................................  1
M8 Hex. Nut ................................................  4
M6 Hex. Nut ................................................  4
8-pin DIN Plug ............................................  1
7-pin Metal Connector .................................  2
Water Resist Cap .........................................  2
Spare Fuse (117V:2A, 220V:1A) .................  1
Instruction Manual .......................................  1
