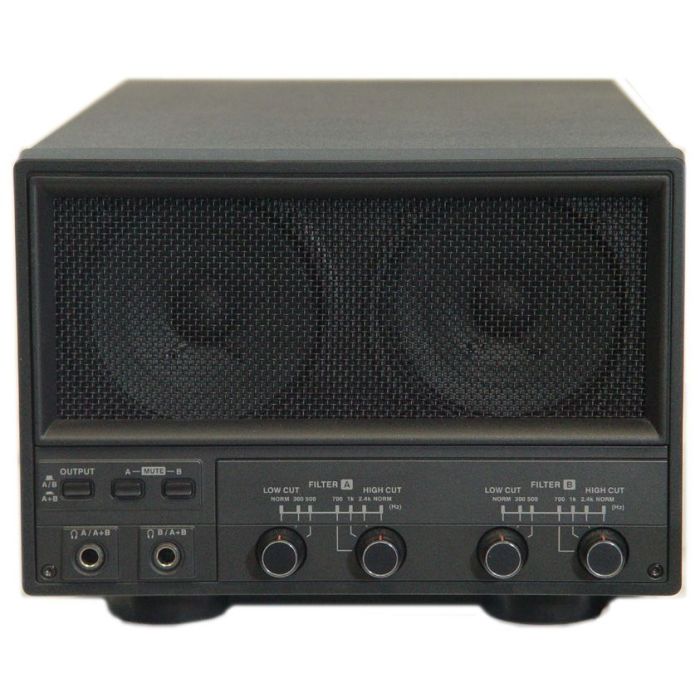

Yaesu SP-9000 Dual Speaker System with Dual Audio Filters
The SP-9000 features two 100mm speakers, offering independent audio paths for the Main and Sub VFO audio output, while the right speaker yields Sub VFO audio. A front panel switch also allows you to combine the audio signals from both receivers for mixed distribution from the two combined speakers. This products an effective aperture of 200mm for outstanding tonal quality.
The audio filters provide three steps of high-cut (2400/1000/700 Hz) and two steps of low-cut filtering (500/300 Hz). Each audio path (Main/Sub) may be independently filtered, allowing you to experiment with optimum settings in a "diversity" dual reception filtering mode. The unit also features individual mute switches for dual receive operation.
Twin headphone jacks are provided on the front panel of the SP-9000, providing monitoring of both VFOs A and B.
- Two 100mm speakers
- Three steps of high-cut (2400/1000/700 Hz) filtering
- Two steps of low-cut filtering (500/300 Hz)
- Independent audio path filtering,
- Individual mute switches for dual receive operation
- Twin headphone jacks for VFOs A and B
Note: specifications are subject to change without notice.
|Speakers (L & R Speakers are identical)|
|Number of Speakers||2|
|Input Audio Impedance||8Ω|
|Audio Frequency Response||100 to 12000Hz|
|Filter Characteristics (Cutoff Frequencies)|
|Independent Left and Right Filters are built in.|
|Number of Audio Filters||2 (1 per speaker)|
|LOW1 (approx.)||300Hz (-6dB/Oct)|
|LOW2 (approx.)||500Hz (-6dB/Oct)|
|HIGH1 (approx.)||2.4kHz (-6dB/Oct)|
|HIGH2 (approx.)||1kHz (-6dB/Oct)|
|HIGH3 (approx.)||700Hz (-6dB/Oct)|
|Case Size (W x H x D, mm, with feet)||246 x 182 x 438 (w/o knobs/jacks)|
|Weight (approx., kg)||4|
- SP-9000 External Speaker
- 2 x Speaker Cables (RCA to 3.5mm Mono)
- RCA Plug
- Operation Manual
