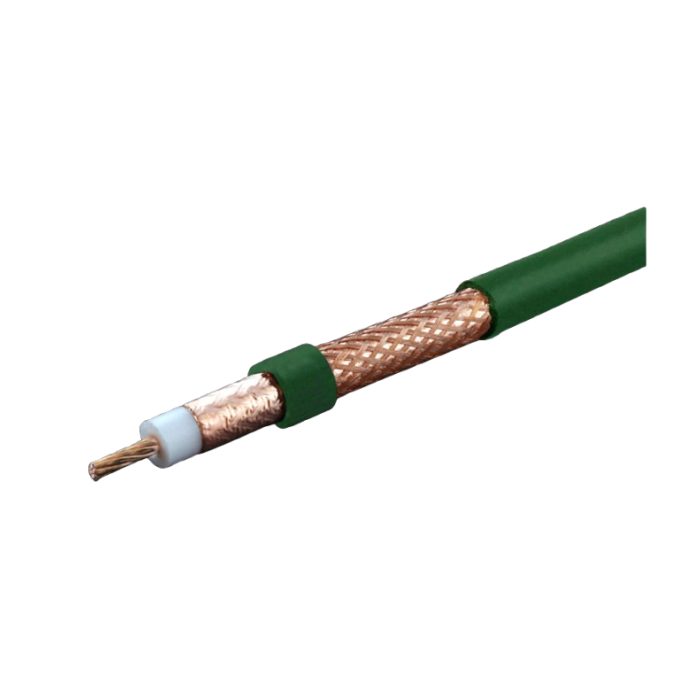

M&P UltraFlex 10 Green: Professional 10.3mm Coaxial Cable with PL-259 Connectors

Elevate your radio setup with the Messi & Paoloni UltraFlex 10 Green, a premium 50 Ohm coaxial cable designed for demanding amateur radio and professional applications. This high-performance cable comes pre-terminated with PL-259 connectors, combining exceptional flexibility with the low attenuation typically found in rigid, solid-core cables.

The Green edition features a distinctive, UV-resistant green PVC jacket, making it perfect for outdoor installations and easy identification in complex cable runs.

Key Performance Features

Advanced Screening (SA): Features a triple-layer design, including a 100% screening copper foil and a 71% screening reactive braid.
Superior Shielding Construction: The braid is manufactured using 24 spool machines (50% more crossovers than standard 16-spool machines), resulting in a Screening Efficiency of >105 dB (100-2000 MHz).
Highly Flexible Design: The inner conductor consists of 7x1.0mm copper wires, allowing the cable to react to twisting and bending like a spring.
Mechanical Reliability: The copper foil includes an applied PE-layer to prevent cracking during short-radius bends.
Ultra-Low Loss: Engineered for minimal signal loss across a massive frequency range, from 1.8 MHz up to 8000 MHz.

Technical Specifications: UltraFlex 10 Green
PHYSICAL DIMENSIONS
Overall Diameter	10.3mm ±0.15 (0.405")
Inner Conductor	7 x 1.0mm copper (overall Ø 2.9mm / 0.114")
Dielectric	Triple-layer foamed polyethylene (7.3mm)
Shielding 1 (Foil)	100% Copper foil + PE-layer
Shielding 2 (Braid)	71% Copper braid (144 wires)
Jacket	UV-resistant Green PVC
Connectors	Pre-installed PL-259
ELECTRICAL DATA
Impedance	50 Ohm ±3
Velocity Factor	83%
Capacitance	78 pF/m ±2
Screening Efficiency	100-2000 MHz >105 dB
Resistance (Inner/Outer)	3.2 Ohm/km / 9.2 Ohm/km
MECHANICAL & ENVIRONMENTAL
Temperature Range	-40°C to +60°C
Min. Bending Radius	Single: 40mm \| Repeated: 80mm
Spark Test (Tension)	8 kV

Frequency	Max Power (W)	Frequency	Max Power (W)
1.8 MHz	6427 W	430 MHz	587 W
3.5 MHz	5142 W	800 MHz	419 W
7 MHz	4285 W	1000 MHz	372 W
10 MHz	3955 W	1296 MHz	321 W
14 MHz	3428 W	2400 MHz	223 W
21 MHz	2856 W	3000 MHz	193 W
28 MHz	2437 W	4000 MHz	158 W
50 MHz	1849 W	5000 MHz	135 W
100 MHz	1275 W	6000 MHz	117 W
144 MHz	1049 W	7000 MHz	104 W
200 MHz	883 W	8000 MHz	93 W
400 MHz	610 W

Attenuation (at 20°C / 68°F)

Frequency	dB / 100m	dB / 100ft
1.8 MHz	0.6	0.1
3.5 MHz	0.8	0.2
7 MHz	1.0	0.3
10 MHz	1.2	0.3
14 MHz	1.4	0.4
21 MHz	1.7	0.5
28 MHz	1.9	0.6
50 MHz	2.6	0.8
100 MHz	3.8	1.1
144 MHz	4.5	1.4
200 MHz	5.4	1.6
400 MHz	7.8	2.4
430 MHz	8.1	2.4
800 MHz	11.2	3.4
1000 MHz	12.7	3.8
1296 MHz	14.6	4.4
2400 MHz	20.6	6.3
3000 MHz	23.4	7.1
4000 MHz	27.7	8.4
5000 MHz	31.6	9.6
6000 MHz	35.4	10.8
7000 MHz	39.0	11.9
8000 MHz	42.6	13.0
