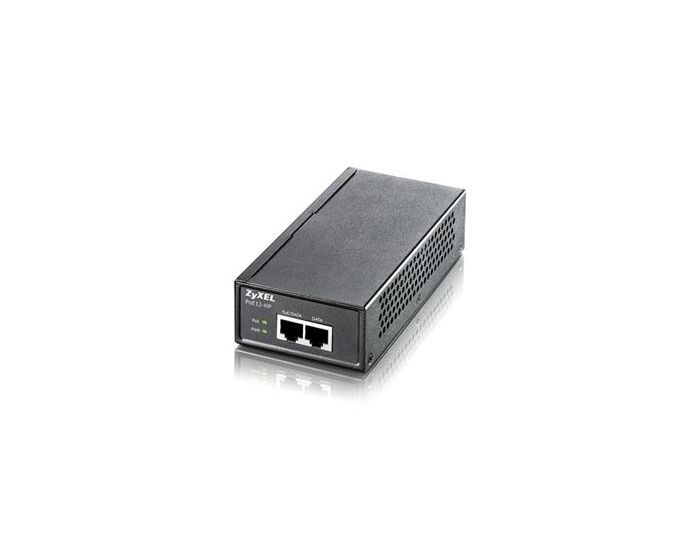

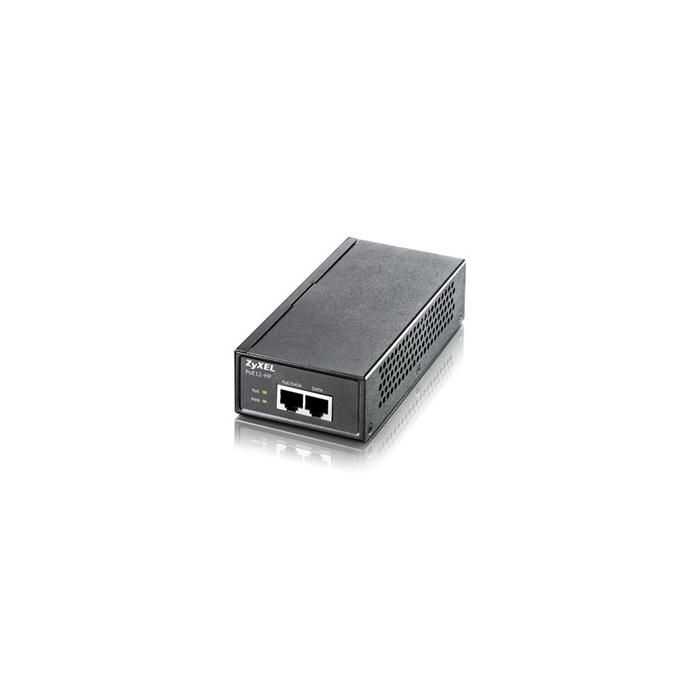

ZyXEL POE12HP
SKU
NW0254
$53.29
Check Store Stock
Huntsville:
Las Vegas:
Distribution Center:
ZyXEL PoE-12HP Power over Ethernet Injector - 240VAC
The ZyXEL PoE12 Series is a PoE injector designed to support the increasing power of the latest-generation N wireless Access Points (APs) as well as the pan, tilt or zoom functions of IP surveillance cameras. The PoE12 Series consists of two models: PoE-12 PoE12-HP. The PoE-12 and PoE12-HP are single-port PoE injectors that deliver both and data to other PoE devices via a single CAT-5 Ethernet cable without extra power. The PoE-12 enables 100 Mbps data transmissions and provides power up to 15.4 W, the PoE12-HP allows data transmitted at 1000 Mbps and delivers power up to 30 W.
Power Description
Input Voltage: 240 V AC
Input Current: 1.50 A
Frequency: 50 Hz
Frequency: 60 Hz
Output Power: 30 W
Interfaces/Ports
Input Ports: 1 x RJ-45 10/100/1000Base-T
Output Ports: 1 x RJ-45 10/100/1000Base-T
Physical Characteristics
Height: 1.4"
Width: 2.9"
Depth: 6.1"
Weight (Approximate): 13.92 oz
Miscellaneous
Compatibility:
WLAN Access Points
VoIP Phones
IP Cameras
Certifications & Standards:
EN 60950-1
CSA international
CC Part15 (Class B)
CE EMC (Class B)
FCC
Complaints:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Warranty
Limited Warranty: 2 Year
The ZyXEL PoE12 Series is a PoE injector designed to support the increasing power of the latest-generation N wireless Access Points (APs) as well as the pan, tilt or zoom functions of IP surveillance cameras. The PoE12 Series consists of two models: PoE-12 PoE12-HP. The PoE-12 and PoE12-HP are single-port PoE injectors that deliver both and data to other PoE devices via a single CAT-5 Ethernet cable without extra power. The PoE-12 enables 100 Mbps data transmissions and provides power up to 15.4 W, the PoE12-HP allows data transmitted at 1000 Mbps and delivers power up to 30 W.
Power Description
Input Voltage: 240 V AC
Input Current: 1.50 A
Frequency: 50 Hz
Frequency: 60 Hz
Output Power: 30 W
Interfaces/Ports
Input Ports: 1 x RJ-45 10/100/1000Base-T
Output Ports: 1 x RJ-45 10/100/1000Base-T
Physical Characteristics
Height: 1.4"
Width: 2.9"
Depth: 6.1"
Weight (Approximate): 13.92 oz
Miscellaneous
Compatibility:
WLAN Access Points
VoIP Phones
IP Cameras
Certifications & Standards:
EN 60950-1
CSA international
CC Part15 (Class B)
CE EMC (Class B)
FCC
Complaints:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3af
IEEE 802.3at
Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Warranty
Limited Warranty: 2 Year
