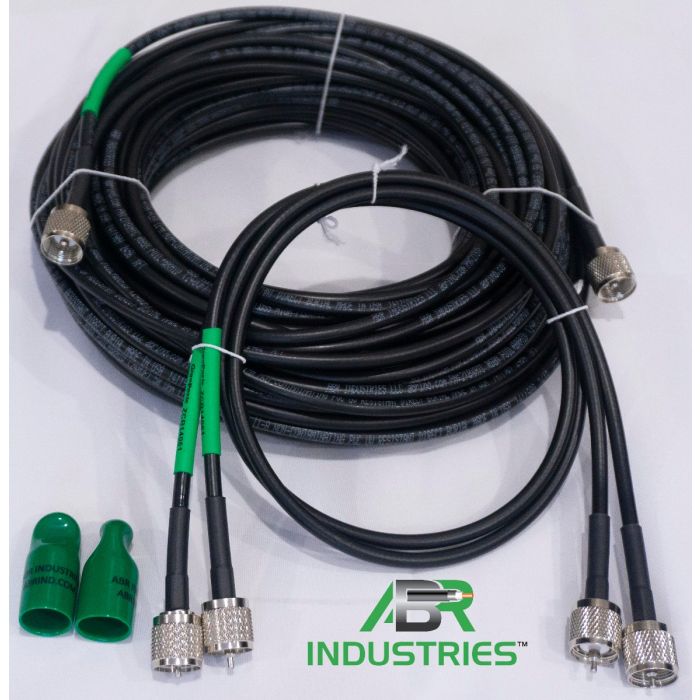

100ft RG8X with Two 3ft RG8X Jumpers Kit

100ft RG8X with Two 3ft RG8X Jumpers Kit

RG8X size:.240″ Low Loss.

Best Grade PL259 connectors on Each End.

Weather-Proof Heat Shrink Tubing (HST) Each End.

30% lower loss than the standard RG8x.

Flexible Stranded Center Conductor.

96% TC Braid + bonded 100% Foil Shield.

Shield Effectiveness <90dB. That means that you get virtually no noise interference.

Very Flexible, Light Weight, and Smaller than RG8 sizes.

Perfect for Amateur Radio: Mobile, Dipoles, & Portable, Condos, and Apartments applications.

Non-Contaminating-UV Resistant-Direct Burial-Black Jacket.

Gas Injected Foam Polyethylene Dielectric VP: 80%

our Closed-Cell-GIFP dielectric is a major advantage over standard RG8x; those products use a chemical foam dielectric; which causes higher losses, will-not stand-up to heat, and that will cause the center conductor to migrate into the braid, and short-out.

Voltage DC: 1500Volts RMS: 5000

Maximum permissible D.C. voltage level is conservatively 3 times the A.C. level.

PP kW: 5.6

RoHS Compliant.

Overall Diameter: .242″

Weight 4#/100ft

All cable are fully tested. Hi-Pot® and continuity.

Nominal Attenuation-per 100ft/Power Rating(kW)/Efficiently%

0.9dB @ 10MHz/2.16kW/80% E.

1.6dB @ 30MHz/1.24kW/69% E.

2.1dB @ 50MHz/.96kW/62% E.

3.6dB @ 150MHz/0.55kW/43.5% E.

6.3dB @ 450MHz/0.31kW/23.2% E.
