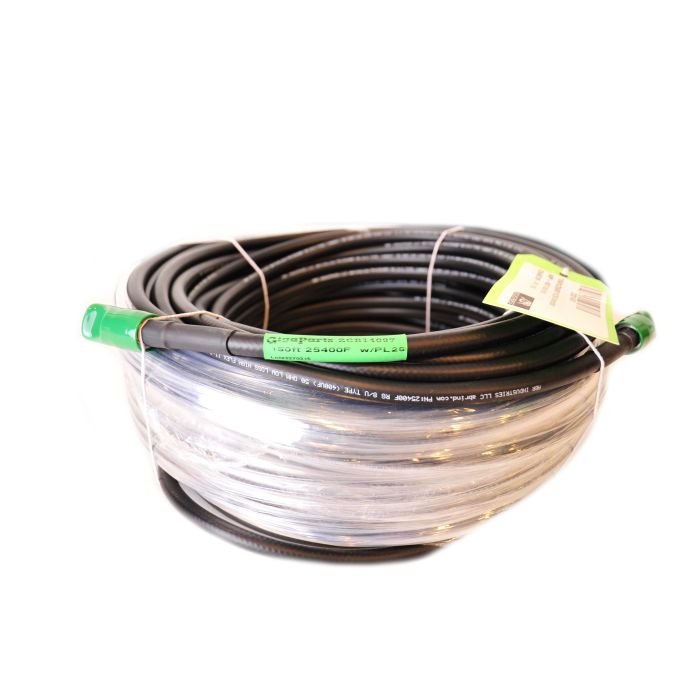

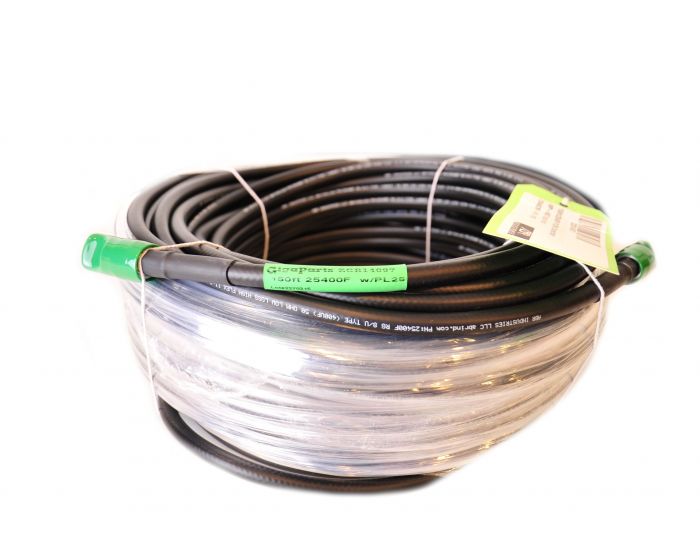

ABR Industries ABR400-Ultra Flex 150ft RG8 Coax Jumper
25400F-PL-150 w/ PL259 Ends
The ABR Industries 25400F-PL-150 ABR400-Ultra Flex 150ft RG8 Coax Jumper w/ PL259 Ends is the ultimate solution for radio enthusiasts who demand the best in performance and durability. Made in America with the highest quality materials, this coaxial cable jumper delivers exceptional performance, low loss, and superior connectivity.
The ABR400-Ultra Flex 150ft RG8 Coax Jumper is built to last, with a closed cell polyethylene dielectric that ensures optimal signal transmission and a durable, moisture-proof design that can withstand even the harshest weather conditions. The double shield (100% foil and 96% braid) provides superior protection against interference and ensures maximum signal clarity.
With a 84% velocity of propagation, this jumper provides up to 2db less loss than RG-213, making it the ideal choice for demanding radio applications that require optimal signal strength and clarity. The Ultra-Flex UV resistant and direct burial jacket ensures that the jumper will last for years, even when exposed to harsh outdoor conditions.

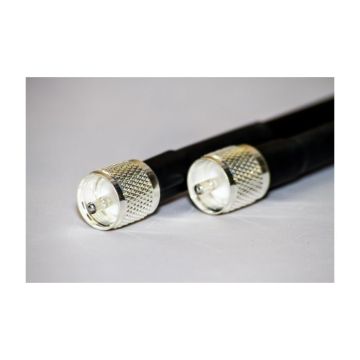

The jumper comes equipped with silver PL259 connectors on each end, providing a secure and reliable connection that will stand up to frequent use and handling. Additionally, the weather-proof heat shrink tubing installed on each connector ensures that the jumper will remain protected from the elements.
Whether you're a professional or amateur radio enthusiast, the ABR Industries 25400F-PL-150 ABR400-Ultra Flex 150ft RG8 Coax Jumper w/ PL259 Ends is the ultimate solution for high-quality, low loss connectivity. Don't settle for subpar coaxial cable jumpers - order yours today and experience the best in American-made radio connectivity!
150ft RG8 Coax Jumper w/ PL259 Ends - Ultra-Flex UV Resistant & Direct Burial Jacket - Silver PL259 Connectors on each end - Weather-Proof Heat Shrink Tubing Installed- Up to 2db less loss than RG-213
Find all of your PolyPhaser lightning surge protectors here!
High quality low loss coaxial cable
Closed Cell Polyethylene Dielectric
84% Velocity of Propagation
Flexible and Moisture Proof
Double Shield - (F100% + 96% Braid)
Ultra-Violet Resistant
Direct Burial Jacket
, Low Loss
Attenuation @ 100ft/Pwr/Efficiency
0.5dB @ 10MHz/4.83kW/90% E
0.8dB @ 30MHz/2.77kW/83% E
1.1dB @ 50MHz/2.14kW/78.5% E
1.8dB @ 150MHz/1.22kW/65.4% E
3.3dB @ 450MHz/0.69kW/47.3% E
RoHS Compliant. Made in America
150ft RG8 Coax Jumper w/ PL259 Ends - Ultra-Flex UV Resistant & Direct Burial Jacket - Silver PL259 Connectors on each end - Weather-Proof Heat Shrink Tubing Installed- Up to 2db less loss than RG-213
Find all of your PolyPhaser lightning surge protectors here!
- High quality low loss coaxial cable
- Closed Cell Polyethylene Dielectric
- 84% Velocity of Propagation
- Flexible and Moisture Proof
- Double Shield - (F100% + 96% Braid)
- Ultra-Violet Resistant
- Direct Burial Jacket, Low Loss
RoHS Compliant. Made in America
| Attenuation | @ 100ft | Pwr | Efficiency |
| 0.5dB | @ 10MHz | 4.83kW | 90% E |
| 0.8dB | @ 30MHz | 2.77kW | 83% E |
| 1.1dB | @ 50MHz | 2.14kW | 78.5% E |
| 1.8dB | @ 150MHz | 1.22kW | 65.4% E |
| 3.3dB | @ 450MHz | 0.69kW | 47.3% E |
