ABR Industries ABR400-Ultra Flex 25ft RG8 Coax Jumper
w/ PL259 Ends
The ABR Industries 25400F-PL-25 is a 25ft RG8 coax jumper cable designed for optimal performance and durability. With PL259 connectors on both ends, this cable is easy to install and connect to a variety of devices.
This high-quality coaxial cable features a closed cell polyethylene dielectric and an 84% velocity of propagation for superior signal transmission. Additionally, its double shield design provides excellent protection against electromagnetic interference with 100% foil and 96% braid coverage.
The cable's ultra-flexible design and moisture-proof properties make it ideal for use in a variety of applications. Its direct burial jacket ensures reliable performance in harsh weather conditions, while its UV-resistant properties ensure long-lasting durability.
The ABR Industries 25400F-PL-25 is also RoHS compliant and made in America, ensuring that it meets the highest standards for quality and environmental responsibility. With up to 2db less loss than RG-213, this low loss coaxial cable is an excellent choice for applications where signal quality is critical.
Whether you need a cable for amateur radio, CB radio, or other communication applications, the ABR Industries 25400F-PL-25 is sure to deliver reliable performance. With its durable construction, superior signal transmission capabilities, and weatherproof design, this coax jumper cable is an excellent choice for any installation.
25ft RG8 Coax Jumper w/ PL259 Ends - Ultra-Flex UV Resistant & Direct Burial Jacket - Silver PL259 Connectors on each end - Weather-Proof Heat Shrink Tubing Installed- Up to 2db less loss than RG-213
High quality low loss coaxial cable
Closed Cell Polyethylene Dielectric
84% Velocity of Propagation
Flexible and Moisture Proof
Double Shield - (F100% + 96% Braid)
Ultra-Violet Resistant
Direct Burial Jacket
, Low Loss
Attenuation @ 100ft/Pwr/Efficiency
0.5dB @ 10MHz/4.83kW/90% E
0.8dB @ 30MHz/2.77kW/83% E
1.1dB @ 50MHz/2.14kW/78.5% E
1.8dB @ 150MHz/1.22kW/65.4% E
3.3dB @ 450MHz/0.69kW/47.3% E
RoHS Compliant. Made in America
25ft RG8 Coax Jumper w/ PL259 Ends
- Ultra-Flex UV Resistant & Direct Burial Jacket

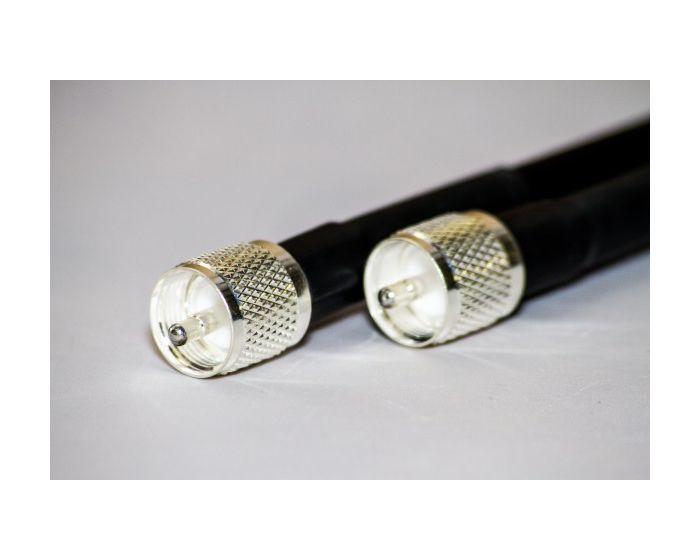

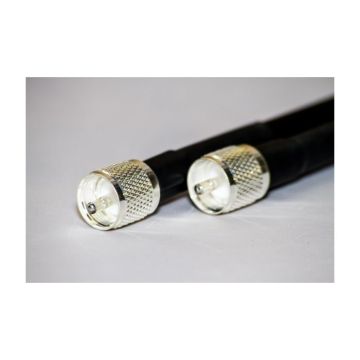

- Silver PL259 Connectors on each end
- Weather-Proof Heat Shrink Tubing Installed
- Up to 2db less loss than RG-213
- High quality low loss coaxial cable
- Closed Cell Polyethylene Dielectric
- 84% Velocity of Propagation
- Flexible and Moisture Proof
- Double Shield - (F100% + 96% Braid)
- Ultra-Violet Resistant
- Direct Burial Jacket , Low Loss
| Attenuation | @ 100ft | Power | Efficiency |
| 0.5dB | @ 10MHz | 4.83kW | 90% E |
| 0.8dB | @ 30MHz | 2.77kW | 83% E |
| 1.1dB | @ 50MHz | 2.14kW | 78.5% E |
| 1.8dB | @ 150MHz | 1.22kW | 65.4% E |
| 3.3dB | @ 450MHz | 0.69kW | 47.3% E |
