ABR400-Ultra Flex 6ft RG8 Coax Jumper w/ PL259 Ends - 25400F-PL-6

SKU
ZCB14079
$34.95
Add to Wish List
Ready to Ship!
Check Store Stock

Huntsville:

Las Vegas:

Distribution Center:

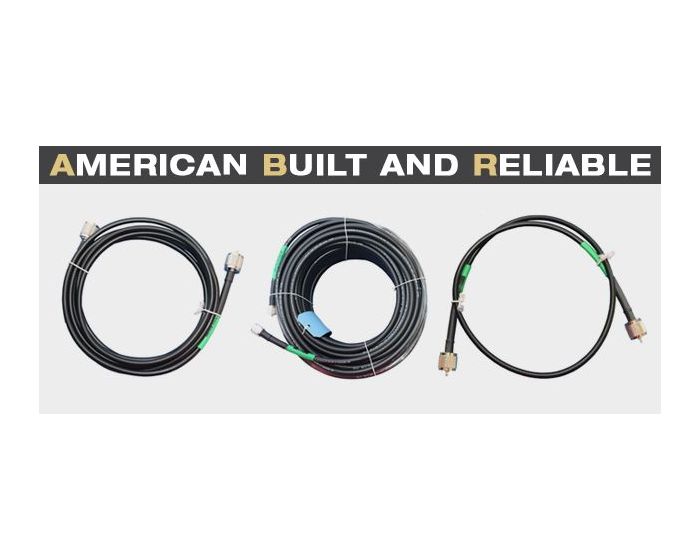

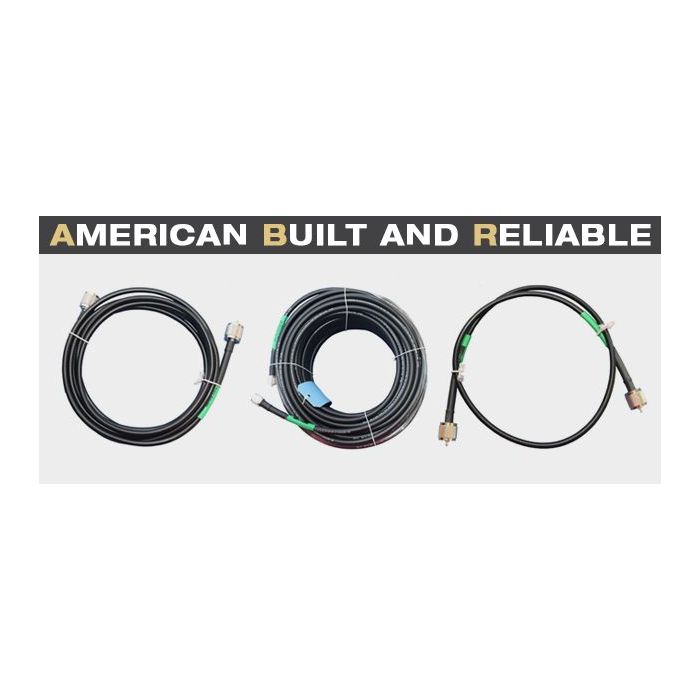

ABR400-Ultra Flex 6ft RG8 Coax Jumper

With PL259 Ends / Part Number  25400F-PL-6

Introducing the ABR400 Ultraflex 6ft RG8 Coax Cable (Part number 25400F-PL-6)! This high-quality cable is designed for optimal performance and durability. With its Ultra-Flex UV resistant and direct burial jacket, it can withstand harsh weather conditions. Equipped with silver PL259 connectors on each end and weather-proof heat shrink tubing, it ensures secure and reliable connections. Experience up to 2dB less loss compared to RG-213, thanks to its low-loss characteristics. Made in America and RoHS compliant, this coax cable provides exceptional attenuation, power efficiency, and peace of mind. Upgrade your signal transmission with the ABR400 Ultraflex Coax Cable.

6ft RG8 Coax Jumper w/ PL259 Ends - Ultra-Flex UV Resistant & Direct Burial Jacket - Silver PL259 Connectors on each end - Weather-Proof Heat Shrink Tubing Installed- Up to 2db less loss than RG-213

High quality low loss coaxial cable
Closed Cell Polyethylene Dielectric
84% Velocity of Propagation
Flexible and Moisture Proof
Double Shield - (F100% + 96% Braid)
Ultra-Violet Resistant
Direct Burial Jacket
, Low Loss
Attenuation @ 100ft/Pwr/Efficiency
0.5dB @ 10MHz/4.83kW/90% E
0.8dB @ 30MHz/2.77kW/83% E
1.1dB @ 50MHz/2.14kW/78.5% E
1.8dB @ 150MHz/1.22kW/65.4% E
3.3dB @ 450MHz/0.69kW/47.3% E
RoHS Compliant. Made in America

ABR400 6ft RG8 Coax Jumper w/ PL259 Ends - Ultra-Flex UV Resistant & Direct Burial Jacket - Silver PL259 Connectors on each end - Weather-Proof Heat Shrink Tubing Installed- Up to 2db less loss than RG-213

Specification Value
Dielectric Closed Cell Polyethylene
Velocity of Propagation 84%
Flexibility Flexible
Moisture Resistance Moisture Proof
Shielding Double Shield (F100% + 96% Braid)
UV Resistance Yes
Jacket Direct Burial
Low Loss Yes
Attenuation @ 100ft/Pwr/Efficiency
10 MHz 0.5 dB / 4.83 kW / 90% E
30 MHz 0.8 dB / 2.77 kW / 83% E
50 MHz 1.1 dB / 2.14 kW / 78.5% E
150 MHz 1.8 dB / 1.22 kW / 65.4% E
450 MHz 3.3 dB / 0.69 kW / 47.3% E
RoHS Compliance Compliant
Origin Made in America

Please note that these specifications are based on the provided information and may be subject to change or variation.
