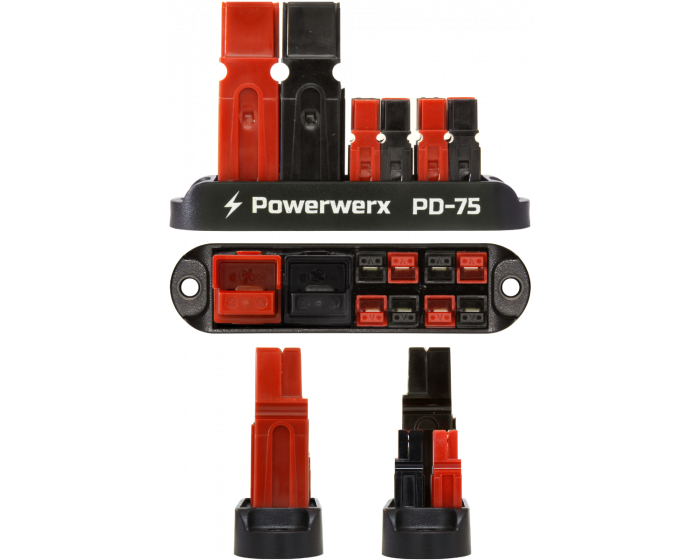

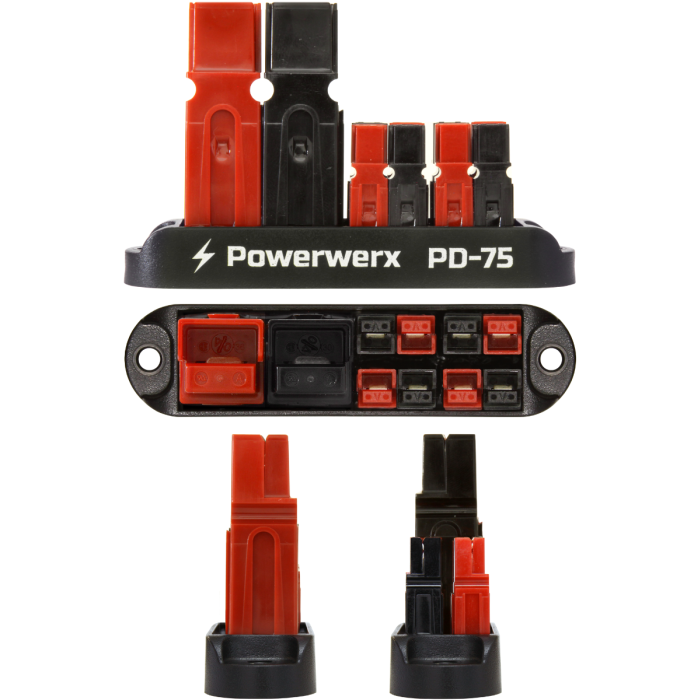

75A Input 4 Position Distribution Block for 15/30/45A Powerpole Connectors
75 amp Powerpole input accepts 6 or 8 GA wire. Distributes power to 4 positions of 15/30/45 amp Powerpole connectors. Allows each output to use a retention clip for secure operation. Thick copper bus bar construction. Mountable for permanent installations.
Easy to use 75 amp input, 4 position output power distribution block for 15/30/45 amp Powerpole connectors. Input accepts 6 or 8 gauge wire. Convenient for professional installations, at the home or in the field. Proudly designed and manufactured by Powerwerx in the USA.
Very Low Loss Design
Thick copper bus bar construction with heavy duty crimps provides negligible voltage loss and very low resistance, unlike competitor's products that use thin circuit boards traces with high voltage loss.
Mounting Holes
Mounting holes are provided for permanent, secure mounting on any installation.
High Current Capacity
Unique copper bus bar construction provides reliable, safe up to 75 amp continuous operation.
Retention Clips
New innovative design allows each Powerpole connection to use retention clips for secure operation. Prevents unintentional disconnection in any environment.
Anderson Powerpole Connectors
Compatible and designed to work with your favorite Anderson Powerpole 15, 30 & 45 amp connectors.
Clean Installations
Simple design allows all wires to run in a single direction for cleaner and trouble free installation.
Connections: 75A Powerpole Connector (input), 4 Powerpole Connectors (output)
Compatibility: Mates with all 15, 30 & 45 amp Powerpole connectors (output). 75 amp Powerpole input.
Maximum Voltage: 58VDC
Maximum Amperage: 75A continuous (input), 45A continuous (each output)
Mountable: 0.18" diameter mounting holes. Fits #8 screw.
Construction: Rugged ABS plastic base. Sealed internal bus bars.
Dimensions: 2.33"W x 0.97"D x 1.32"H (59.2mm x 24.6mm x 33.5mm)
Weight: 0.09 lb (0.04 kg)
